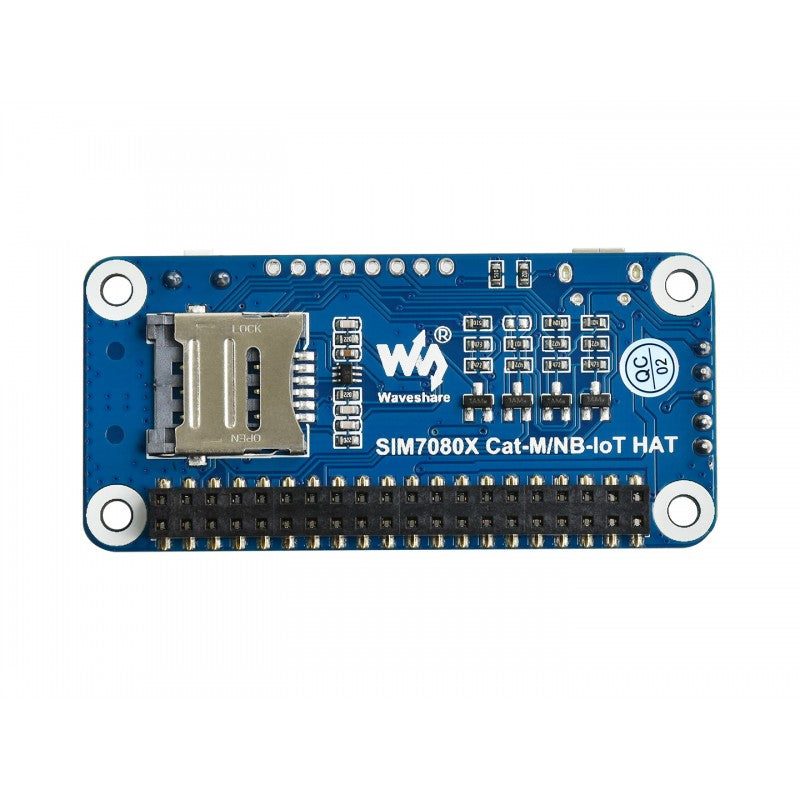

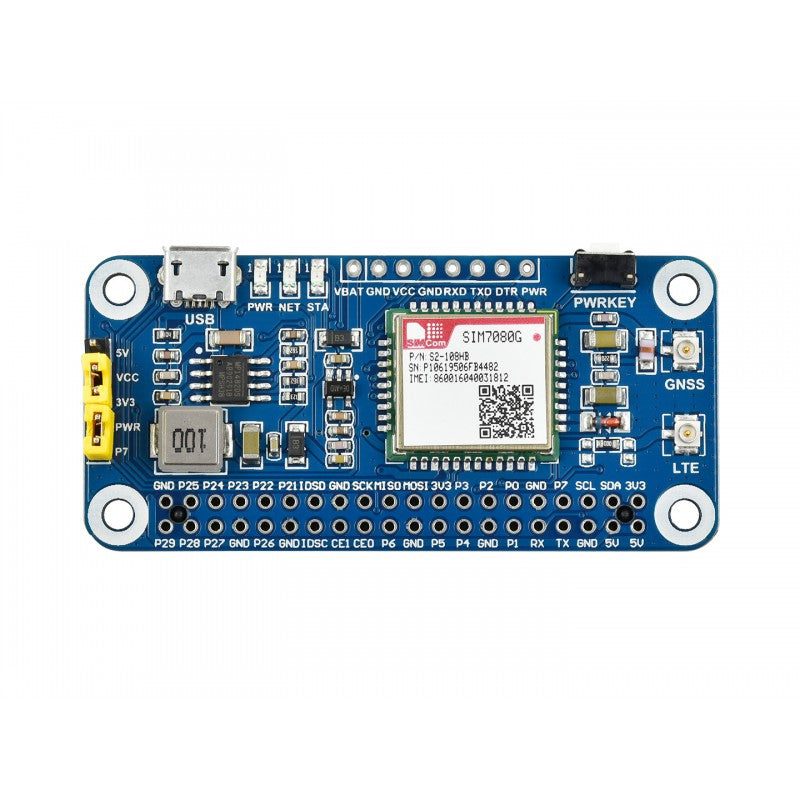

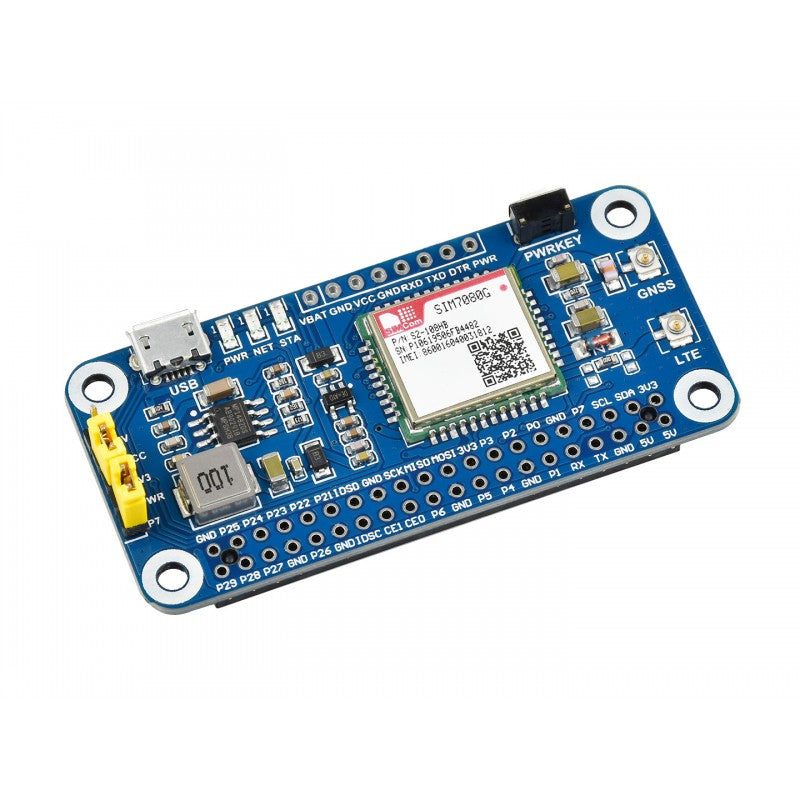

NB-IoT / Cat-M(eMTC) / GNSS HAT for Raspberry Pi

NB-IoT / Cat-M(eMTC) / GNSS HAT for Raspberry Pi

Out of stock

Regular price Rs. 3,258
Regular price Rs. 4,499 Sale price Rs. 3,258
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 1,241
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • This is NB-IoT / Cat-M(eMTC) / GNSS HAT for Raspberry Pi
  • Versatile Telecommunication HAT offering NB-IoT, Cat-M, and GNSS functionalities.
  • Supports Raspberry Pi series boards with a standard 40PIN GPIO extension header.
  • Communication protocols supported include TCP, UDP, HTTP, HTTPS, TLS, DTLS, PING, LWM2M, COAP, and MQTT.
  • GNSS positioning available with support for GPS, GLONASS, BeiDou, and Galileo.
  • Features onboard USB interface for AT Commands, GPS positioning data, and more.
  • Additional breakout UART control pins for compatibility with boards like Arduino/STM32.
  • Voltage translator onboard with 3.3V/5V switching capability via jumper.

NB-IoT / Cat-M(eMTC) / GNSS HAT for Raspberry Pi

Introducing the Telecommunication HAT, a versatile device offering a range of communication functionalities. This HAT incorporates three key features: NB-IoT (NarrowBand-Internet of Things), Cat-M (also known as eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System).

With the rapid advancements in telecommunication technology, traditional 2G/3G networks are gradually fading away. The future landscape will be dominated by IoT technologies, combining low bandwidth options like NB-IoT/Cat-M with high bandwidth standards such as 4G/5G.

Designed to operate globally, this HAT supports NB-IoT and Cat-M bands, while also providing positioning capabilities through GNSS. Its compact size, minimal latency, and extensive coverage make it the perfect choice for a wide range of IoT applications, including intelligent instruments, asset tracking, remote monitoring, e-health, and more.

Features:

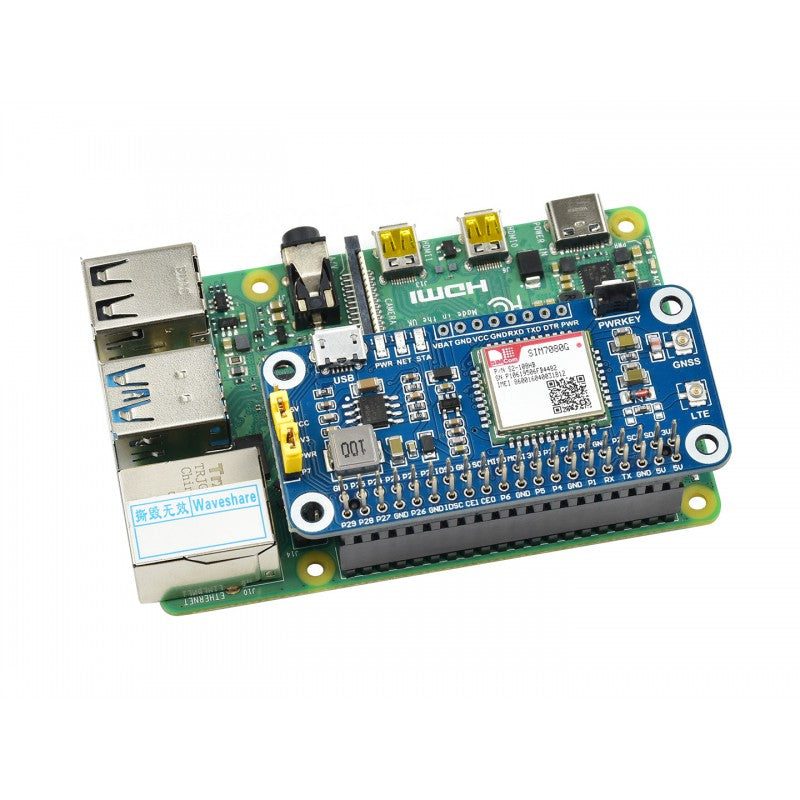

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
  • Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
  • Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
  • Breakout UART control pins, to connect with host boards like Arduino/STM32
  • Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper

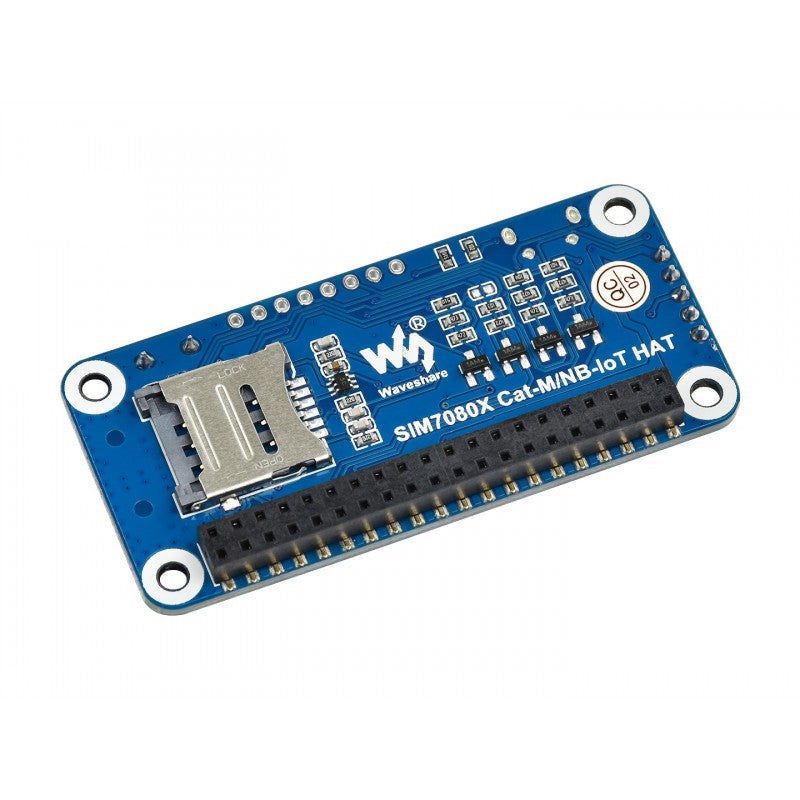

  • SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
  • 3x LED indicators, easy to monitor the working status
  • Baudrate: 300~3686400 bps
  • Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

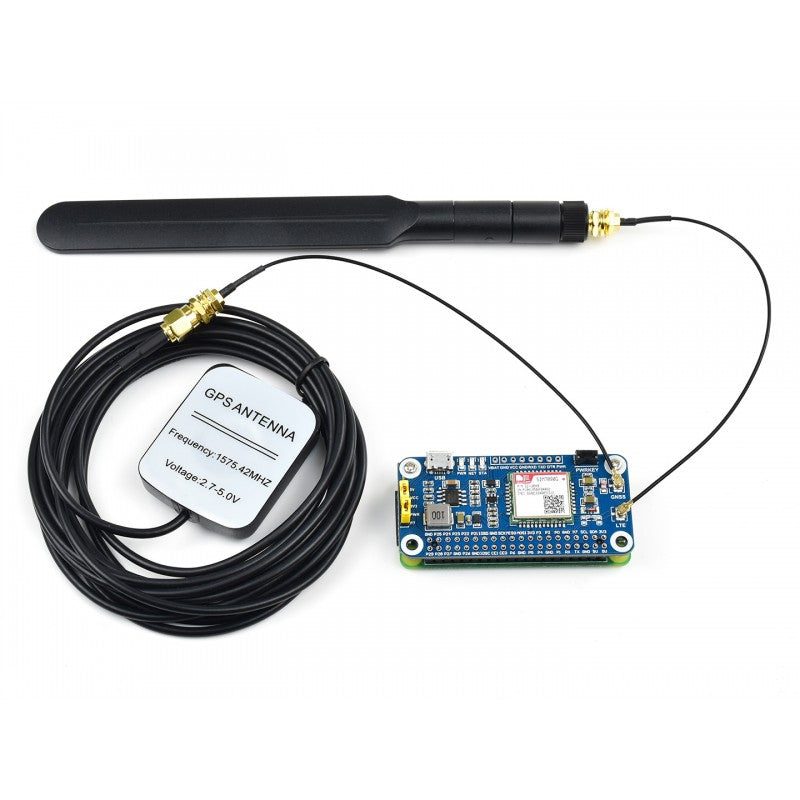

Package Includes:

  • SIM7080G Cat-M/NB-IoT HAT x1
  • LTE antenna x1
  • GPS External Antenna (B) x1
  • USB type A plug to micro plug cable x1
  • 2×20PIN female header x1
  • RPi screws pack (2pcs) x1

Specifications:

Power supply voltage 5V
Logic level 5V / 3.3V (configured via jumper)
Overall current (idle mode) 39mA
Operating temperature -40°C ~ 85°C
Storage temperature -45°C ~ 90°C
Dimension 30.2mm x 65mm
