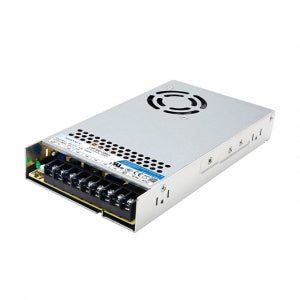

Mornsun LMF320-23B27 AC/DC 320W Enclosed Switching Power Supply
Mornsun LMF320-23B27 AC/DC 320W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range of -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage of up to 4000VAC
- Output short circuit, over-current, over-voltage, and over-temperature protection
- LED indicator for power on
- Built-in DC fan
- Emissions meet CISPR32/EN55032 CLASSB
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF320-23B27 AC/DC 320W Enclosed Switching Power Supply
The LMF320-23B27 is a 320W AC/DC enclosed switching power supply from Mornsun. It features a universal input voltage range of 85-305VAC/120-430VDC, an output voltage of 27VDC, an output current of 11.9A, and an efficiency of up to 88%. The LMF320-23B27 is also equipped with a number of safety features, including short circuit protection, over current protection, and over voltage protection. It is a reliable and versatile power supply that is suitable for a wide range of applications, including industrial automation, LED lighting, and telecommunications.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF320-23B27 AC/DC 320W Enclosed Switching Power Supply
Specifications
| Output voltage | 27VDC |
| Output current | 11.9A |
| Output power | 320W |
| Efficiency | Up to 88% |
