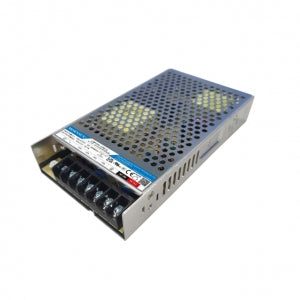

Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply
Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range of 85-305VAC or 120-430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range of -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage of up to 4000VAC
- Output short circuit, over-current, over-voltage, and over-temperature protection
- LED indicator for power on
- Emissions meet CISPR32/EN55032 CLASS B
- Start-up delay time of less than 5 seconds at -30℃
- Operating altitude of up to 5000m
- Safety according to IEC62368, EN60335
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply
The LMF200-23B24 is an enclosed AC/DC converter from Mornsun. It has a single output of 24V at 8.33A, for a total power output of 201W. The input voltage range is 85-305VAC or 120-430VDC, and the efficiency is 88%. The isolation voltage is 4000VAC.
The LMF200-23B24 is a versatile power supply that can be used for a variety of applications, including industrial control, medical equipment, and telecommunications. It is also suitable for use in harsh environments, thanks to its IP65 rating.
check out : Mornsun LMF200-23B05 AC/DC 200W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LMF200-23B48 AC/DC 200W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LMF200-23B24 AC/DC 200W Enclosed Switching Power Supply
Specifications
| Output voltage | 24V |
| Output current | 8.33A |
| Total power output | 201W |
| Input voltage range | 85-305VAC or 120-430VDC |
| Efficiency | 88% |
| Isolation voltage | 4000VAC |
