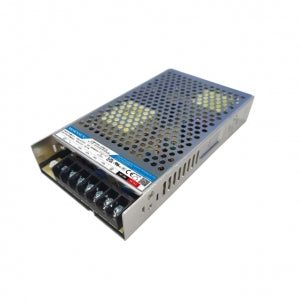

Mornsun LMF200-23B48 AC/DC 200W Enclosed Switching Power Supply
Mornsun LMF200-23B48 AC/DC 200W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85-305VAC or 120-430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range of -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage, and over-temperature protection
- LED indicator for power on
- Emissions meet CISPR32/EN55032 CLASS B
- Start-up delay time less than 5 seconds at -30℃
- Operating altitude up to 5000m
- Safety according to IEC62368, EN60335
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF200-23B48 AC/DC 200W Enclosed Switching Power Supply
The LMF200-23B48 is a 200W, 48V AC/DC power supply from Mornsun. It has a wide input voltage range of 85-305VAC or 120-430VDC, and can output up to 4.2A of current. The LMF200-23B48 is also equipped with a number of features that make it ideal for industrial applications, including a conformal coating that protects it from harsh environments, and a PFC circuit that helps to improve efficiency.
Features:
- 200W output power
- 48V output voltage
- Wide input voltage range: 85-305VAC or 120-430VDC
- Up to 4.2A of output current
- Conformal coating for protection in harsh environments
- PFC circuit for improved efficiency
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF200-23B48 AC/DC 200W Enclosed Switching Power Supply
Specifications
| Output power | 200W |
| Output voltage | 48V |
| Output current | 4.2A |
| Input voltage | 85-305VAC or 120-430VDC |
| Efficiency | up to 89% |
| Isolation | 4000VAC |
