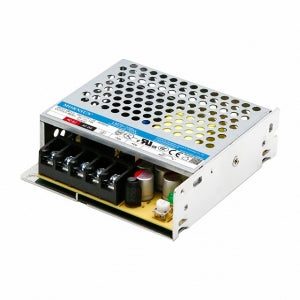

Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal AC input of 85 to 305 VAC or 120 to 430 VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply
The LM75-23B48 is a 48V, 1A enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85 to 305VAC or 120 to 430VDC, as well as a low no-load power consumption of less than 0.5W. The LM75-23B48 is also highly efficient, with a typical efficiency of over 90%.
Features:
- Universal AC input: 85 to 305VAC or 120 to 430VDC
- Output voltage: 48V
- Output current: 1A
- Low no-load power consumption: less than 0.5W
- High efficiency: typical efficiency of over 90%
check out : Mornsun LM35-23B24 AC/DC 35W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply
Specifications
| Output power | 75W |
| Input voltage | 85 to 305 VAC or 120 to 430 VDC |
| Output voltage | 48 VDC |
| Output current | 1 amp |
| Efficiency | 90% |
| No-load power consumption | <1 watt |
| Dimensions | 2.25 x 2.25 x 1.25 inches |
