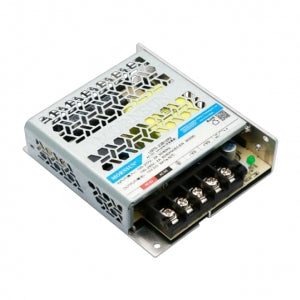

Mornsun LM75-23B24R2 AC/DC 75W Enclosed SMPS

Mornsun LM75-23B24R2 AC/DC 75W Enclosed SMPS

Out of stock

Regular price Rs. 1,510
Regular price Rs. 2,063 Sale price Rs. 1,510
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 553 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal input voltage range: 80 - 305VAC or 100 - 430VDC
  • Accepts both AC or DC input (dual-use of the same terminal)
  • Operating ambient temperature range: -40°C to +85°C
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple and noise
  • Operating altitude up to 5000m
  • Output short circuit, over-current, and over-voltage protection
  • Designed to meet Over-voltage Class III safety standard (EN62477)
  • Safety compliant with IEC/EN/UL/BS EN62368, EN60335, EN61558, EN62477, GB4943 standards
Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM75-23B24R2 AC/DC 75W Enclosed SMPS

The LM75-23B24R2 is a compact, enclosed AC/DC power supply from Mornsun. It has a universal AC input voltage of 80-305 VAC or 100-430 VDC, and can output a regulated 24 VDC at up to 3.2 A. The power supply has a high efficiency of up to 91%, and is protected against overvoltage, overcurrent, undervoltage, and short circuit. It also has a built-in thermal overload protection.

The LM75-23B24R2 is a versatile power supply that can be used in a variety of applications, including industrial control, LED lighting, and telecommunications. It is also compliant with a number of safety standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN/BSEN62368, EN60335, EN61558, EN62477, and GB4943.

check out : Mornsun LM50-23B24R2 AC/DC 50W Enclosed SMPS

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS

Package Includes:

1 x Mornsun LM75-23B24R2 AC/DC 75W Enclosed SMPS

Specifications

Specification Value
Power 75 W
Input Voltage 80-305 VAC or 100-430 VDC
Output Voltage 24 VDC
Output Current 3.2 A
Efficiency 91%
Isolation 4000 VAC
Dimensions 110 x 60 x 40 mm
Weight 0.7 kg
