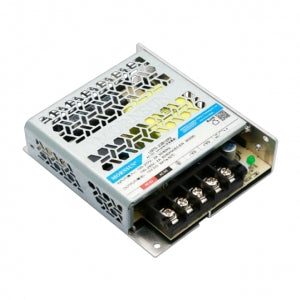

Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS
Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS
Out of stock
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range: 80 - 305VAC or 100 - 430VDC
- Accepts both AC and DC input (dual-use of the same terminal)
- Operating ambient temperature range: -40°C to +85°C
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple and noise
- Operating altitude up to 5000m
- Protection features for output short circuit, over-current, and over-voltage
- Designed to meet Over-voltage Class III safety standard (EN62477)
- Safety compliance with IEC/EN/UL/BS EN62368, EN60335, EN61558, EN62477, GB4943 standards
Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS
The LM75-23B12R2 is a compact, enclosed AC/DC converter that provides a regulated 12V output at up to 6A. It has a universal input voltage range of 80-305VAC or 100-430VDC, making it suitable for a wide variety of applications. The LM75-23B12R2 also features a high efficiency of up to 89%, low no-load power consumption, and double or reinforced insulation for safety.
check out : Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM75-23B24R2 AC/DC 75W Enclosed SMPS
Package Includes:
1 x Mornsun LM75-23B12R2 AC/DC 75W Enclosed SMPS
Specifications
Specification | Value |
---|---|
Power | 75W |
Input Voltage | 80-305VAC or 100-430VDC |
Output Voltage | 12V |
Output Current | 6A |
Efficiency | 89% |
Isolation | 4000VAC |
