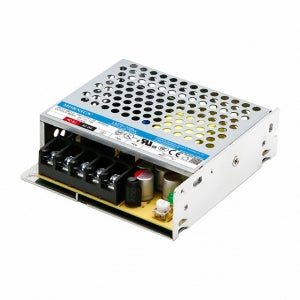

Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Regular price
Rs. 1,687
Regular price
Rs. 2,305
Sale price
Rs. 1,687
Unit price
/
per
You save Rs. 618 |
Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
BEST COUPON FOR YOU
FLAT โน 100/- OFF
RC100
When you shop for โน 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Submit your Bulk Enquiry Here
- Universal AC input of 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30โ to +70โ
- Low standby power consumption and high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- Over-voltage class โ ข
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply
The LM75-23B05 is a 5V, 70W, enclosed AC/DC converter with a wide input voltage range of 85-305 VAC or 120-430 VDC. It has a high efficiency of up to 85% and can output up to 14A of current. The LM75-23B05 is also isolated from the input voltage, making it safe to use in applications where there is a risk of electrical shock.
Features:
- 5V output
- 70W output power
- Wide input voltage range (85-305 VAC or 120-430 VDC)
- High efficiency (up to 85%)
- 14A output current
- Isolated from input voltage
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25โ, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5โ/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed intoย the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 xย Mornsun LM75-23B05 AC/DC 75W Enclosed Switching Power Supply
Specifications:
Output voltage | 5V |
Output power | 70W |
Input voltage range | 85-305 VAC or 120-430 VDC |
Efficiency | up to 85% |
Output current | 14A |
Isolation | 4000VAC |
