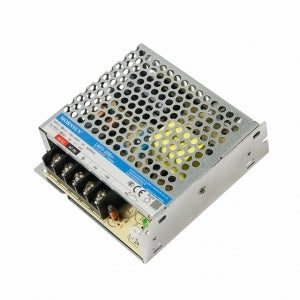

Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

Out of stock

Regular price Rs. 1,409
Regular price Rs. 1,925 Sale price Rs. 1,409
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 516 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal 85 - 264VAC or 120 - 370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

The LM75-20B24 is a 24V, 75W, universal input AC/DC power supply from Mornsun. It features a wide input voltage range of 85-264VAC or 120-370VDC, making it suitable for use in a variety of applications. The power supply also features a high efficiency of up to 90%, which helps to reduce power consumption and heat dissipation. In addition, the LM75-20B24 is protected against overvoltage, overcurrent, and short circuit, providing peace of mind for users.

check out : Mornsun LM75-22B12 AC/DC 75W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

Package Includes:

1 x Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

Specifications:

Specification Value
Output voltage 24V
Output current 3.2A
Power 75W
Input voltage 85-264VAC or 120-370VDC
Efficiency Up to 90%
Protection Overvoltage, overcurrent, short circuit
