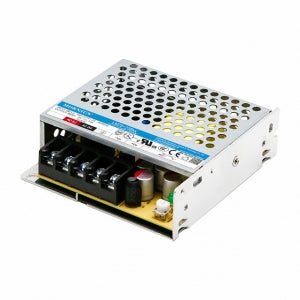

Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

Out of stock

Regular price Rs. 1,609
Regular price Rs. 2,198 Sale price Rs. 1,609
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 589 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal input voltage of 85 - 305VAC or 120 - 430VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range of -30℃ to +70℃
  • Low standby power consumption and high efficiency
  • High I/O isolation test voltage of up to 4000VAC
  • Low ripple and noise
  • Output short circuit, over-current, and over-voltage protection
  • Over-voltage class Ⅲ
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

The LM75-23B15 is a 15V, 2.5A enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage range of 85-305VAC, a DC input voltage range of 120-430VDC, and a high efficiency of up to 95%. The LM75-23B15 also has a low no-load power consumption of less than 1W, making it a cost-effective and energy-efficient solution for a variety of applications.

Features:

  • Universal AC input voltage range of 85-305VAC
  • DC input voltage range of 120-430VDC
  • High efficiency of up to 95%
  • Low no-load power consumption of less than 1W
  • Enclosed housing for protection against dust and moisture
  • Built-in thermal protection for overload and overtemperature conditions
  • Short circuit protection
  • Overvoltage protection
  • Overcurrent protection

check out : Mornsun LM75-20B24 AC/DC 75W Enclosed SMPS

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-23B15 AC/DC 75W Enclosed Switching Power Supply

Specifications:

Output power 75W
Input voltage 85 to 305 VAC
Output voltage 15V
Output current 2.3A
Efficiency up to 95%
