- Universal 165 - 264VAC or 200 - 370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-Voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused

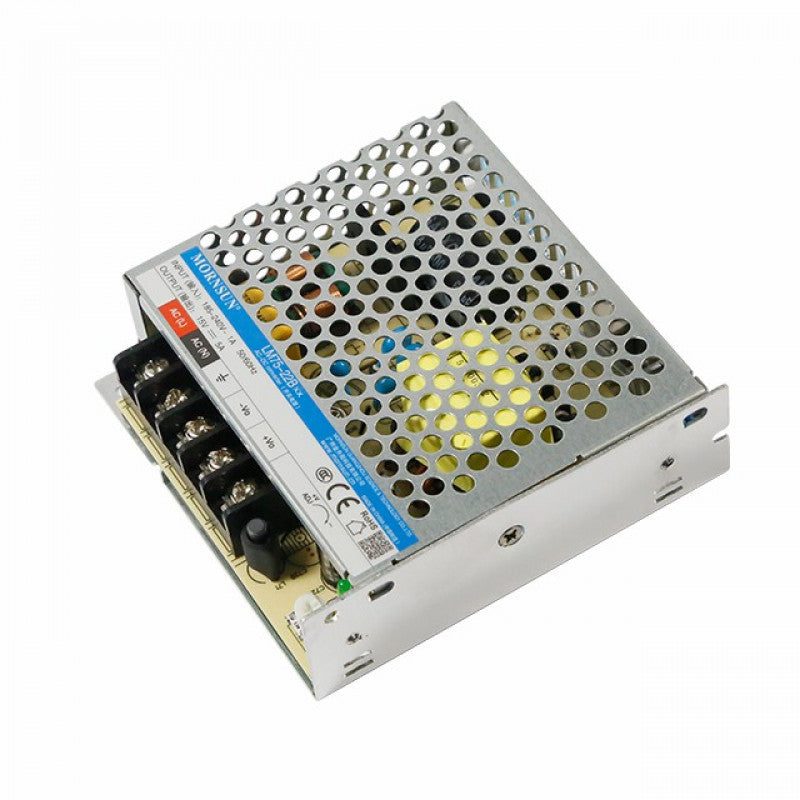

Mornsun LM75-22B12 AC/DC 75W Enclosed Switching Power Supply
The LM75-22B12 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, DC input voltage acceptance, low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets the following standards: IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558. The LM75-22B12 is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-22B12 AC/DC 75W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 75W |
| Series |
LM75-22B |
| Part Number |
LM75-22B12 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 12V |
| Output Current | 6A |
