Mornsun LM75-20B15 AC/DC 75W Enclosed Switching Power Supply

Mornsun LM75-20B15 AC/DC 75W Enclosed Switching Power Supply

Out of stock

Regular price Rs. 1,596
Regular price Rs. 2,180 Sale price Rs. 1,596
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 584 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Universal input voltage of 85 - 264VAC or 120 - 370VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range of -30℃ to +70℃
  • Low standby power consumption and high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple and noise
  • Output short circuit, over-current, and over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

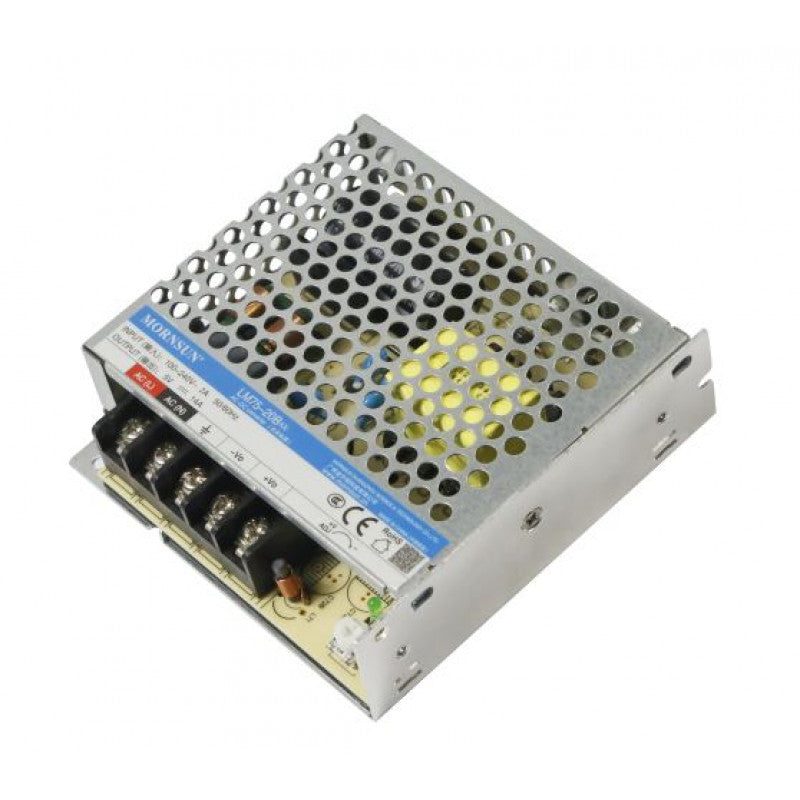

Mornsun LM75-20B15 AC/DC 75W Enclosed Switching Power Supply

LM75-20B15 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, which means it can be used with any voltage between 85 and 264 VAC. It also accepts DC input voltage, making it versatile and adaptable to a wide range of applications.

The LM75-20B15 is cost-effective, with a low no load power consumption of 0.5W. It is also highly efficient, with a conversion efficiency of up to 95%. This means that it can save you money on your energy bills.

The LM75-20B15 is also highly reliable, with a long life expectancy of up to 50,000 hours. It is also double or reinforced insulated, which makes it safe to use in a variety of environments.

The LM75-20B15 offers excellent EMC performance and meets a number of international safety standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943. This makes it a safe and reliable choice for a variety of applications.

The LM75-20B15 is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. It is a versatile and reliable power supply that can be used in a wide range of applications.

Features:

    • Universal AC input
    • DC input voltage acceptance
    • Cost-effective
    • Low no load power consumption
    • High efficiency
    • High reliability
    • Double or reinforced insulation
    • Excellent EMC performance
    • Meets international safety standards
    • Widely used in a variety of industries

    If you are looking for a versatile, reliable, and efficient AC-DC switching power supply, the LM75-20B15 is a great option. It is a cost-effective choice that can be used in a wide range of applications.

    check out : Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    check out : Mornsun LM75-23B36 AC/DC 75W Enclosed Switching Power Supply

    Package Includes:

    1 x  Mornsun LM75-20B15 AC/DC 75W Enclosed Switching Power Supply

    Specifications:

    Type Enclosed Type Single Output
    Output Power 75W
    Series LM75-20B
    Part Number LM75-20B15
    Mechanical Form Enclosed
    IP Level  Non-Waterproof
    Output Voltage 15V
    Output Current 5A
