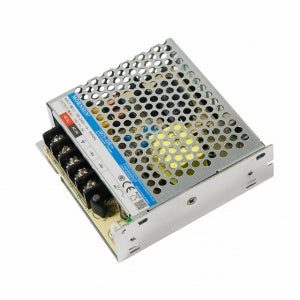

Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Contact form
- Universal input voltage of 165 - 264VAC or 200 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-Voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply
The LM75-22B05 is a 70W AC/DC enclosed power supply that is ideal for a variety of applications, including industrial control, medical equipment, and telecommunications. It features a universal input voltage of 85-264VAC or 120-373VDC, a single output voltage of 5V, and a maximum output current of 14A. The LM75-22B05 also features a high efficiency of up to 86%, which helps to reduce power consumption and operating costs.
Features
- Universal input voltage of 85-264VAC or 120-373VDC
- Single output voltage of 5V
- Maximum output current of 14A
- High efficiency of up to 86%
- Overvoltage, undervoltage, and overcurrent protection
- Short circuit protection
- Thermal overload protection
check out : Mornsun LM75-23B48 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-22B05 AC/DC 75W Enclosed Switching Power Supply
Specifications
| Power | 70W |
| Input voltage | 85-264VAC or 120-373VDC |
| Output voltage | 5V |
| Output current | 14A |
| Efficiency | Up to 86% |
