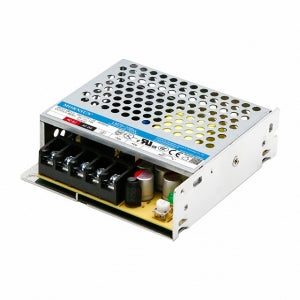

Mornsun LM75-23B36 AC/DC 75W Enclosed Switching Power Supply
The LM75-23B36 is a 36VDC, 2.1A, 75.6W, enclosed SMPS power supply from Mornsun. It has a universal input voltage of 85 - 305VAC or 120 - 430VDC, and can accept AC or DC input (dual-use of same terminal). It has an operating ambient temperature range of -30? to +70?, low standby power consumption, high efficiency, high I/O isolation test voltage up to 4000VAC, low ripple and noise, output short circuit, over-current, and over-voltage protection, over-voltage class ?, and can operate at altitudes up to 5000m.
Features
- Universal input voltage of 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30? to +70?
- Low standby power consumption and high efficiency
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- Over-voltage class ?
- Operating altitude up to 5000m
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
