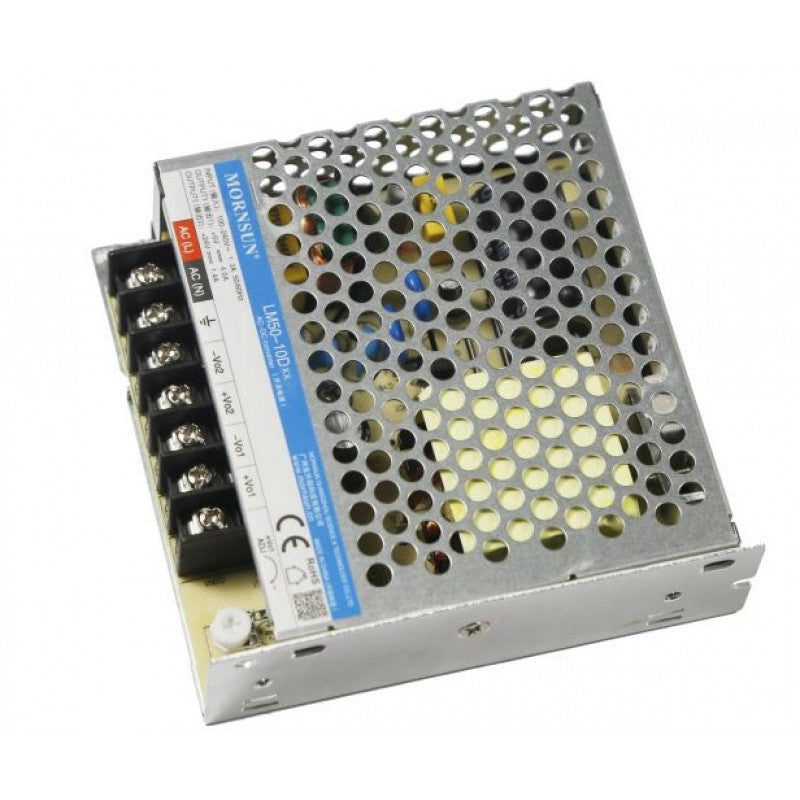

Mornsun LM50-10D0512-20 AC/DC 50W Enclosed SMPS

Mornsun LM50-10D0512-20 AC/DC 50W Enclosed SMPS

The LM50-10D0512-20 is a power converter with two isolated output versions. This means that it can independently supply two different loads in the system that need to be isolated from each other. The products can be used in harsh working environments with an ambient temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation.

The converters have excellent EMC performance and meet the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components. They also meet IEC/EN/UL62368/EN60335/GB4943 safety standards.

The converters integrate a variety of protection features and offer a high-performance to low-cost ratio. They are the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.

check out : Mornsun LM100-10D1224-20 AC/DC 100W Enclosed SMPS

Features

• Two isolated output versions
• Wide operating temperature range (-30℃ to +70℃)
• No fan required for heat dissipation
• Excellent EMC performance
• Meets IEC/EN/UL62368/EN60335/GB4943 safety standards
• Variety of protection features
• High-performance to low-cost ratio
• Ideal for a variety of industries

check out : Mornsun LM50-10D0524-14 AC/DC 50W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM50-20B24 AC/DC 50W Enclosed Switching Power Supply

Package Includes:

1 x Mornsun LM50-10D0512-20 AC/DC 50W Enclosed SMPS

Specifications:
