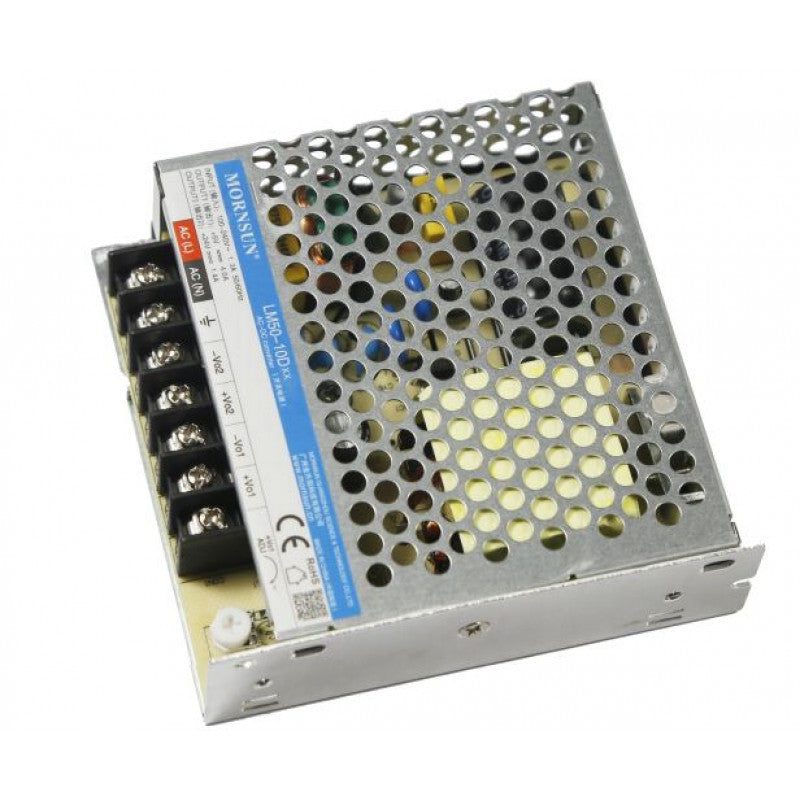

Mornsun LM50-10D0524-14 AC/DC 50W Enclosed Switching Power Supply
The LM50-10D0524-14 is a power converter with two isolated output versions. This means that it can independently supply two different loads in the system, even if they need to be isolated from each other. The products can be used in harsh working environments with an ambient temperature range from -30? to +70?, without the need of a fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368/EN60335/GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio, providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.
Features:
- Two isolated output versions
- Wide temperature range (-30? to +70?)
- Fanless design
- Excellent EMC immunity
- Meets safety standards
- Variety of protection features
- High-performance to low-cost ratio
The LM50-10D0524-14 is a versatile and reliable power converter that can be used in a variety of applications. It is ideal for industrial control equipment, instrumentation, smart home and building equipment, and other applications where high performance and reliability are required.
check out : Mornsun LM50-10D0512-20 AC/DC 50W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
