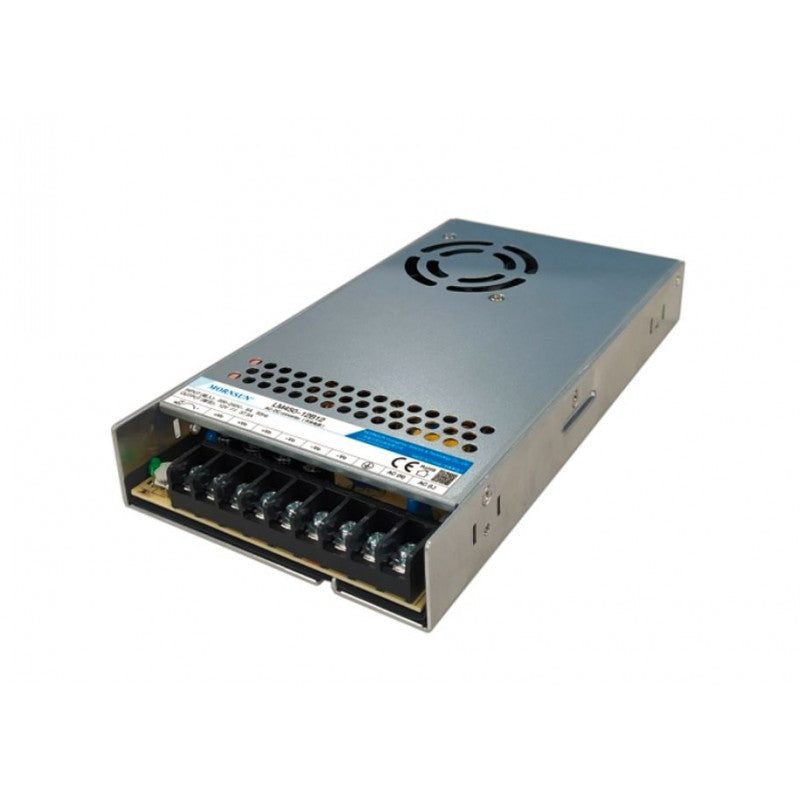

Mornsun LM450-12B36 AC/DC 450W Enclosed SMPS
Mornsun LM450-12B36 AC/DC 450W Enclosed SMPS
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Input voltage range: 176 - 264VAC or 240 - 373VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- LED indicator for power on
- Operating up to 5000m altitude
- Output short circuit, over-current, over-voltage, over-temperature protection
- Built-in DC fan
- Safety according to UL/IEC62368
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM450-12B36 AC/DC 450W Enclosed SMPS
The LM450-12B36 series is a line of enclosed AC-DC switching power supplies from Mornsun. These converters feature AC input and DC input voltage acceptance, are cost-effective, highly efficient, and reliable. They offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC62368, and GB4943 standards. The LM450-12B36 series is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features
- Universal input voltage of 176-264VAC
- Single output voltage of 36V at 12.5A
- Cost-effective
- High efficiency
- High reliability
- Meets IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC62368, GB4943 standards
- Widely used in a variety of applications
If you are looking for an enclosed AC-DC switching power supply that is cost-effective, highly efficient, and reliable, the LM450-12B36 series is a great option. It is widely used in a variety of applications, so you can be sure that it will be able to meet your needs.
check out : Mornsun LM450-12B24 AC/DC 450W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM450-12B36 AC/DC 450W Enclosed SMPS
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 450W |
| Series | LM450-12B |
| Part Number | LM450-12B36 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 36V |
| Output Current |
12.5A |
