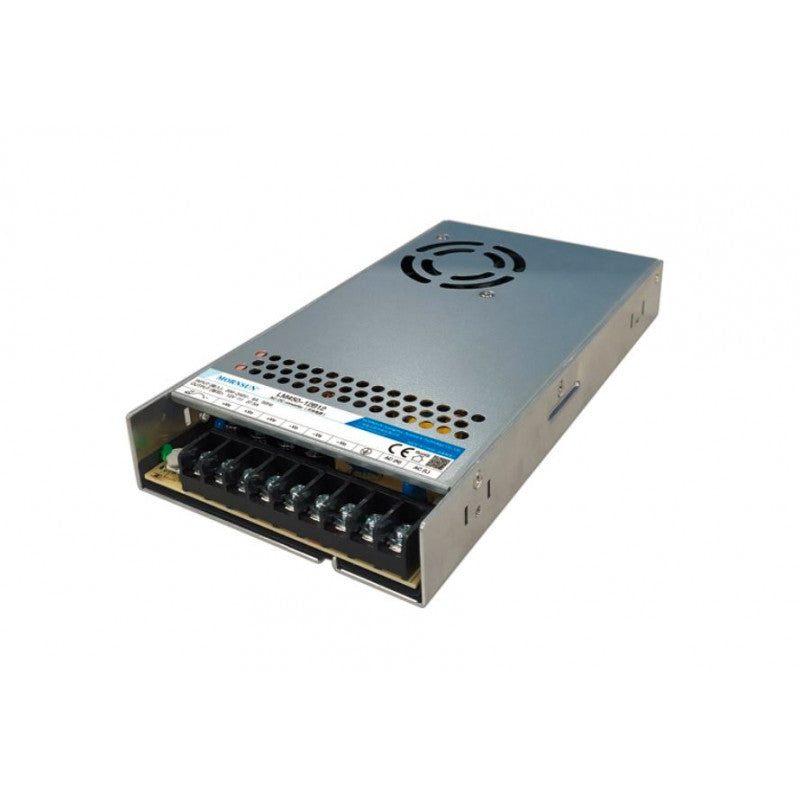

Mornsun LM450-12B24 AC/DC 450W Enclosed SMPS

Mornsun LM450-12B24 AC/DC 450W Enclosed SMPS

Out of stock

Regular price Rs. 5,732
Regular price Rs. 7,830 Sale price Rs. 5,732
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 2,098 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 400/- OFF RC400

When you shop for ₹ 10000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Input voltage range: 176 - 264VAC or 240 - 373VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • LED indicator for power on
  • Operating up to 5000m altitude
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Built-in DC fan
  • Safety according to UL/IEC62368

This product is not available for store pickup. Apologies for the inconvenience caused

Trust Badge 1 Trust Badge 2 Trust Badge 3

Mornsun  LM450-12B24 AC/DC 450W Enclosed SMPS

The LM450-12B24 series is a cost-effective, high-efficiency, and reliable enclosed AC-DC switching power supply from Mornsun. It features AC input and accepts DC input voltage, making it versatile and adaptable to a wide range of applications. The LM450-12B24 series offers excellent EMC performance and meets international standards, including IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC62368, and GB4943. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

check out : Mornsun LM450-12B12 AC/DC 450W Enclosed Switching Power Supply

Features

    • Cost-effective
    • High-efficiency
    • Reliable
    • Versatile
    • Adaptable
    • Excellent EMC performance
    • Meets international standards
    • Widely used in a variety of industries

    The LM450-12B24 series is a versatile and reliable AC-DC switching power supply that is ideal for a wide range of applications. If you are looking for a cost-effective, high-efficiency, and reliable solution for your power needs, the LM450-12B24 series is a great option.

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    check out : Mornsun LM450-12B48 AC/DC 450W Enclosed SMPS

    Package Includes:

    1 x Mornsun  LM450-12B24 AC/DC 450W Enclosed SMPS

    Specifications:

    Type Enclosed Switching Single Output
    Output Power 451.2W
    Series LM450-12B
    Part Number LM450-12B24
    Mount Enclosed
    IP Level  Non-Waterproof
    Output Voltage 24V
    Output Current 18.8A
