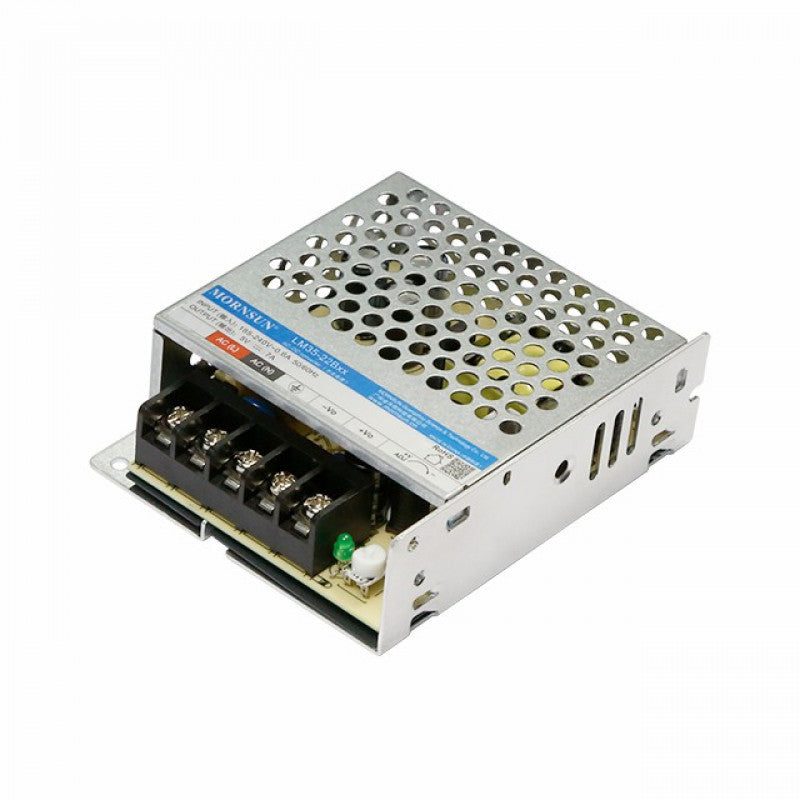

Mornsun LM35-22B24 AC/DC 35W Enclosed Switching Power Supply
Mornsun LM35-22B24 AC/DC 35W Enclosed Switching Power Supply
Out of stock
Regular price
Rs. 1,043
Regular price
Rs. 1,425
Sale price
Rs. 1,043
Unit price
/
per
You save Rs. 382
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here
Contact form
- Input voltage: 165 - 264VAC or 180 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃to+70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM35-22B24 AC/DC 35W Enclosed Switching Power Supply
The LM35-22B24 series is an enclosed AC-DC switching power supply from Mornsun. It features a wide input voltage range, low no load power consumption, high efficiency, and high reliability. It is also double or reinforced insulated for safety. The LM35-22B24 series offers excellent EMC performance and meets a variety of international standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.
Features
- Wide input voltage range: 90 - 132VAC/180- 264VAC or 240 - 370VDC
- Low no load power consumption: < 0.75W@230VAC
- High efficiency: up to 90%
- High reliability: double or reinforced insulation
- Excellent EMC performance: meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards
- Wide range of applications: industrial, LED, street light control, electricity, security, telecommunications, smart home
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM35-22B24 AC/DC 35W Enclosed Switching Power Supply
Specifications
Type | Enclosed Type Single Output |
Output Power | 35W |
Series |
LM35-22B |
Part Number |
LM35-22B24 |
Mechanical Form | Enclosed |
IP Level | Non-Waterproof |
Output Voltage | 24V |
Output Current | 1.5A |
