Mornsun LM35-20B24 AC/DC 35W Enclosed Switching Power Supply - Buy Online in India

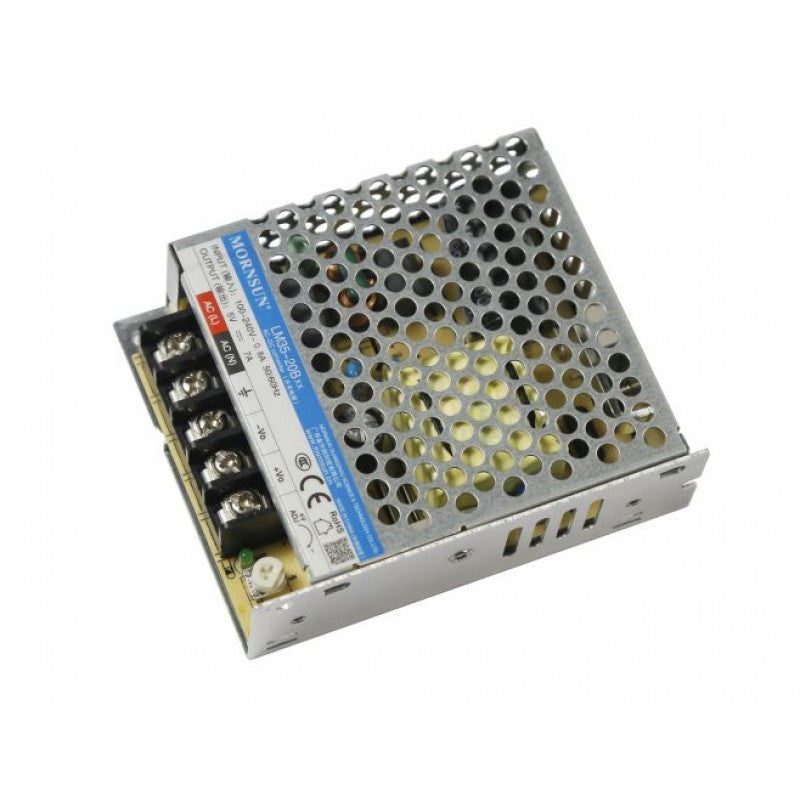

Mornsun LM35-20B24 AC/DC 35W Enclosed Switching Power Supply

The LM35-20B24 is a cost-effective, enclosed AC-DC switching power supply from Mornsun. It features universal AC input, low no load power consumption, high efficiency, high reliability, double or reinforced insulation, and excellent EMC performance. It meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/ EN62368, EN60335, GB4943 standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

Features

• Universal AC input: The LM35-20B24 can be powered from a wide range of AC input voltages, making it ideal for use in a variety of locations.
• Low no load power consumption: The LM35-20B24 consumes very little power when it is not in use, which can help to save energy costs.
• High efficiency: The LM35-20B24 is very efficient, which means that it converts a high percentage of the input power into output power.
• High reliability: The LM35-20B24 is designed to be very reliable, and it is backed by a 3-year warranty.
• Double or reinforced insulation: The LM35-20B24 features double or reinforced insulation, which helps to protect users from electrical shock.
• Excellent EMC performance: The LM35-20B24 meets strict EMC standards, which means that it is less likely to cause interference with other electronic devices.

check out : Mornsun LM35-23B05 AC/DC 35W Enclosed Switching Power Supply

The LM35-20B24 is a versatile and reliable AC-DC switching power supply that is ideal for a wide range of applications.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
