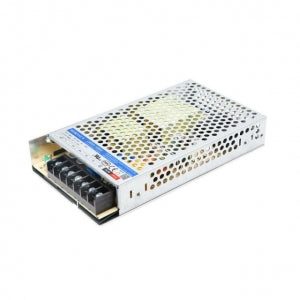

Mornsun LM200-12B48 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-12B48 AC/DC 200W Enclosed Switching Power Supply

The LM200-12B48 is a 211.2W AC/DC power supply that provides a single output of 48V DC at 4.4A. It features a wide input voltage range of 176-264VAC, a low standby power consumption of <0.75W@230VAC, and an operating ambient temperature range of -30℃to+70℃. The LM200-12B48 also features high efficiency, high reliability, an LED indicator for power on, and output short circuit, over-current, over-voltage, and over-temperature protection. It can be used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

check out : Mornsun LM200-12B15 AC/DC 200W Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM60-12A15 AC/DC 60W Enclosed Switching Power Supply

Package Includes:

1 x  Mornsun LM200-12B48 AC/DC 200W Enclosed Switching Power Supply

Specifications:
