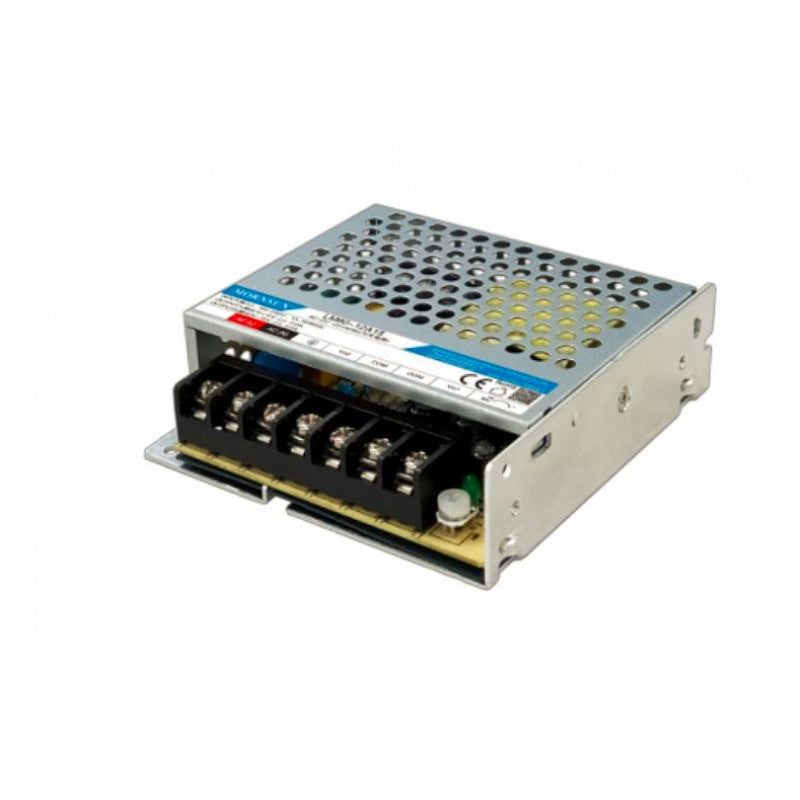

Mornsun LM60-12A15 AC/DC 60W Enclosed Switching Power Supply

Mornsun LM60-12A15 AC/DC 60W Enclosed Switching Power Supply

The LM60-12A15 series is a dual output, non-isolation, enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, accepts DC input voltage, is cost-effective, highly efficient, reliable, and has double or reinforced insulation. The converters offer excellent EMC performance and meet IEC/EN61000-4, IEC/UL/EN62368, and GB4943 standards. They are not only used in the laser galvanometer industry, but also in current sensors, motors, and other fields.

Features

• Universal AC input: The power supply can be used with any AC input voltage between 90 and 264 volts.
• DC input voltage: The power supply can also be used with a DC input voltage between 240 and 370 volts.
• Ultra low standby power consumption: The power supply consumes less than 0.75 watts of power when it is in standby mode.
• Wide operating temperature range: The power supply can operate in temperatures ranging from -30 to 70 degrees Celsius.
• LED indicator for power on: The power supply has a LED indicator that shows when it is turned on.
• Output short circuit, over-current, over-voltage, and over-temperature protection: The power supply has built-in protection against short circuits, over-current, over-voltage, and over-temperature conditions.
• Built-in DC fan: The power supply has a built-in DC fan that helps to keep the power supply cool.
• Operating up to 5000 meters altitude: The power supply can operate up to 5000 meters above sea level.

The LM60-12A15 series is a versatile and reliable power supply that can be used in a variety of applications. It is a good choice for applications that require a universal AC input, low standby power consumption, a wide operating temperature range, and built-in protection against short circuits, over-current, over-voltage, and over-temperature conditions.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM60-12A15 AC/DC 60W Enclosed Switching Power Supply

Specifications:
