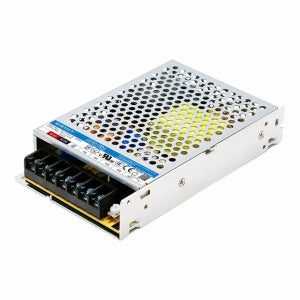

Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply
Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85-305VAC or 120-430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, and over-temperature protection
- IEC/EN/UL62368, EN60335, EN61558, GB4943 safety approved
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply
The LM150-23B36 is a 150 watt, 23 volt AC/DC power supply from Mornsun America, LLC. It is a closed-loop, constant-current, constant-voltage power supply with a universal input voltage range of 90 to 264 VAC. The LM150-23B36 has a ripple and noise rejection of 60 dB and a transient response time of <1 microsecond. It is also equipped with a thermal overload protection circuit and a short circuit protection circuit.
The LM150-23B36 is a versatile power supply that can be used in a variety of applications, including industrial control, medical equipment, and telecommunications. It is also a good choice for use in high-reliability applications where high ripple and noise rejection and fast transient response are required.
Features:
- 150 watt output power
- 23 volt output voltage
- Universal input voltage range of 90 to 264 VAC
- Closed-loop, constant-current, constant-voltage regulation
- Ripple and noise rejection of 60 dB
- Transient response time of <1 microsecond
- Thermal overload protection
- Short circuit protection
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM150-23B36 AC/DC 150W Enclosed Switching Power Supply
Specifications
| Output power | 150 watts |
| Output voltage | 23 volts |
| Input voltage range | 90 to 264 VAC |
| Regulation | closed-loop, constant-current, constant-voltage |
| Ripple and noise rejection | 60 dB |
| Transient response time | <1 microsecond |
