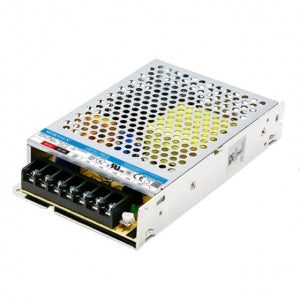

Mornsun LM150-20B48 AC/DC 150W Enclosed Switching Power Supply
Mornsun LM150-20B48 AC/DC 150W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85 - 264VAC or 120 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption and high efficiency
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, over-voltage, and over-temperature protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM150-20B48 AC/DC 150W Enclosed Switching Power Supply
The LM150-20B48 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 85-264VAC and 120-370VDC. The power supply has a power output of 158.4W and provides a regulated output voltage of 48VDC. It offers high efficiency of 89% and is designed for reliable performance in various industrial applications. The LM150-20B48 also features 4000VAC isolation for enhanced safety.
Features
- Universal type power supply with 264VAC input voltage
- Power output: 158.4W
- Input voltage range: 85-264VAC, 120-370VDC
- Regulated output voltage: 48VDC
- Output current: 3.3A
- High efficiency: 89%
- Isolation voltage: 4000VAC
check out : Mornsun LM150-20B36 AC/DC 150W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM150-20B15 AC/DC 150W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM150-20B48 AC/DC 150W Enclosed Switching Power Supply
Specifications
| Power (W) | 158.4 |
| Input Voltage (VAC) | 85-264 |
| Input Voltage (VDC) | 120-370 |
| Output Voltage (VDC) | 48 |
| Output Current (A) | 3.3 |
| Efficiency (%) | 89 |
| Isolation (VAC) | 4000 |
