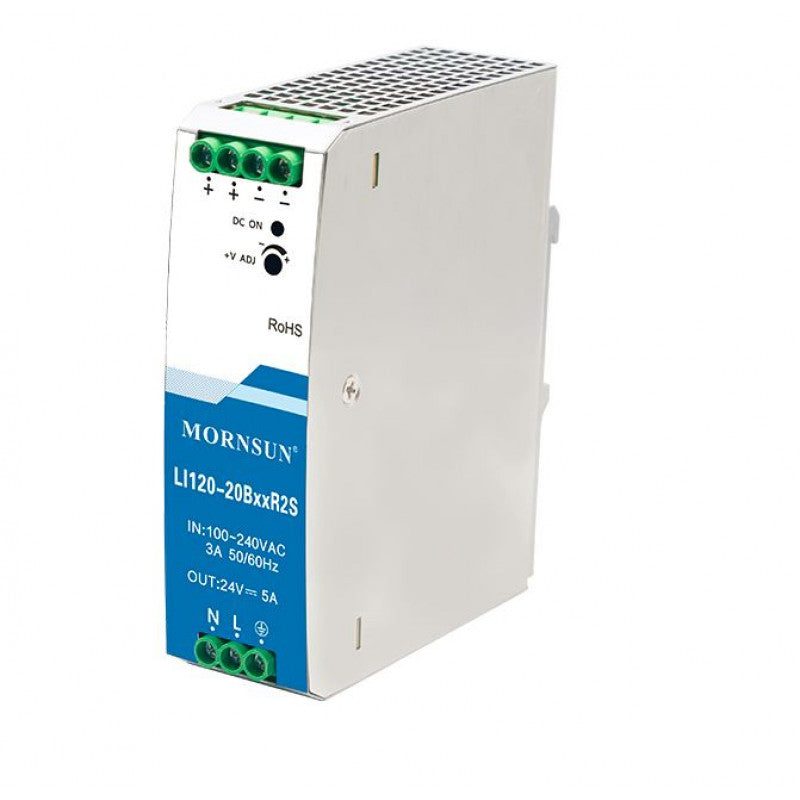

Mornsun LI120-20B12R2S AC/DC 120W DIN-Rail Power Supply
Mornsun LI120-20B12R2S AC/DC 120W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 90 - 264VAC or 127 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -20℃ to +60℃
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, over-voltage, and over-temperature protection
- DIN rail TS-35/7.5 or 15 mountable
- Ultra slim design, suitable for small chassis and narrow space installation
- Safety according to UL508
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI120-20B12R2S AC/DC 120W DIN-Rail Power Supply
The LI120-20B12R2S is a cost-effective, energy efficient, and green AC-DC converter from Mornsun. It is a DIN-rail mounted power supply that offers a high level of stability and immunity to noise. It is ideal for use in industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. The LI120-20B12R2S is lightweight and compact, making it easy to install and save space. It is also compliant with international EMC and safety standards.
Features:
- Cost-effective
- Energy efficient
- Green
- DIN-rail mounted
- High level of stability and immunity to noise
- Ideal for use in industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments
- Lightweight and compact
- Compliant with international EMC and safety standards
If you are looking for a cost-effective, energy efficient, and green AC-DC converter for your industrial application, the LI120-20B12R2S is a great option. It offers a high level of performance and reliability, and it is compliant with international standards.
check out : Mornsun LI120-20B48R2S AC/DC 120W DIN-Rail Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI120-20B12R2S AC/DC 120W DIN-Rail Power Supply
Specifications
| Type | DIN Rail Single Output |
| Output Power | 120W |
| Series | LI120-20B |
| Part Number | LI120-20B12R2S |
| Mount | DIN-Rail |
| IP Level | Non-Waterproof |
| Output Voltage | 12V |
| Output Current | 10A |
