Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8 - Buy Online in India

Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8

Rs 1,049/-
- 33%
Rs 1,049/-
Rs 1,569/-
Save Rs 520/-
🪙
RC REWARDS Earn 10 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFQC0232
  • Mini OSD module designed for APM 2.6 and APM 2.8 flight controllers.
  • Displays MAVLink telemetry data directly over the live FPV video feed.
  • Features an ATmega328P 8-bit microcontroller and MAX7456 monochrome OSD chip.
  • Compatible with ArduPilot Mega and the MAVLink communication protocol.
  • Supports programming through an FTDI-compatible 6-pin cable.
  • Ideal for FPV drones, aerial projects, and real-time flight data monitoring.
  • Includes a compact plastic case for convenient installation and protection.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8
Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8
Rs 1,569/- Rs 1,049/-
Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8
Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8
Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8
Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8

Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8

Rs 1,569/- Rs 1,049/-
Description

Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8

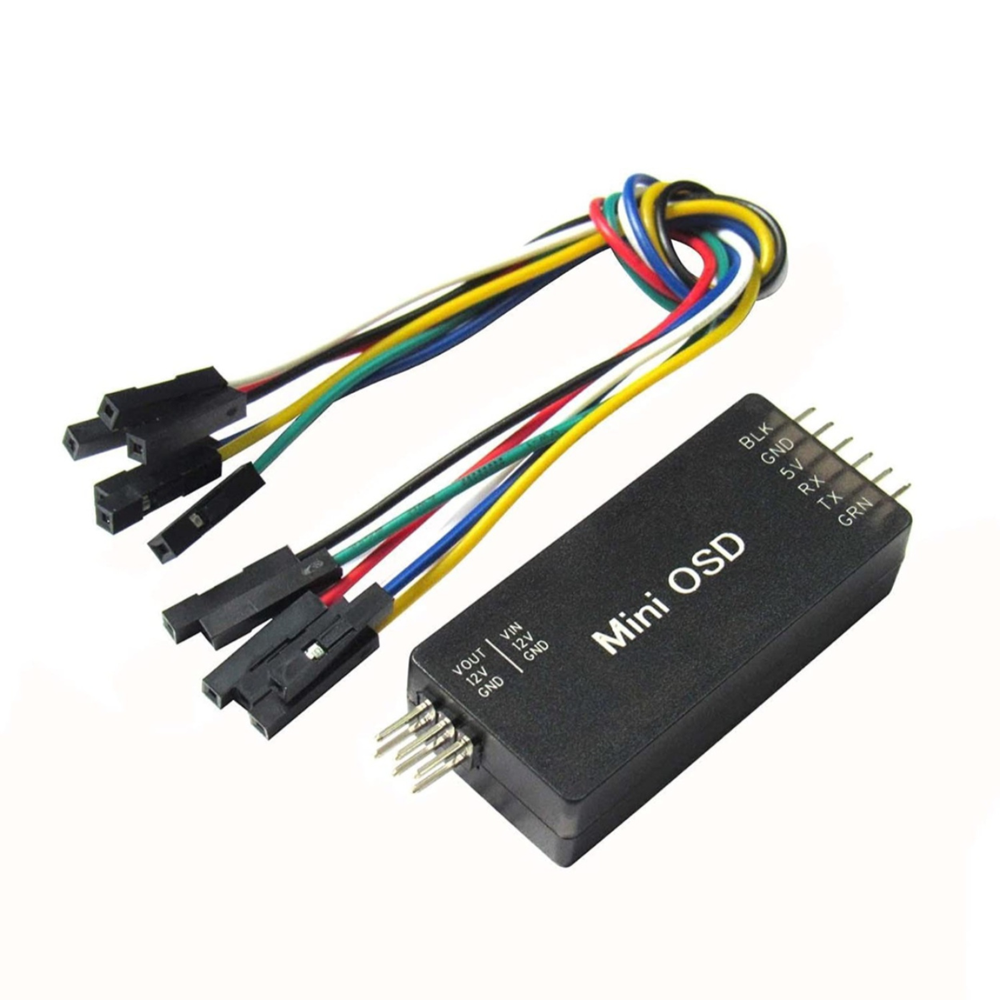

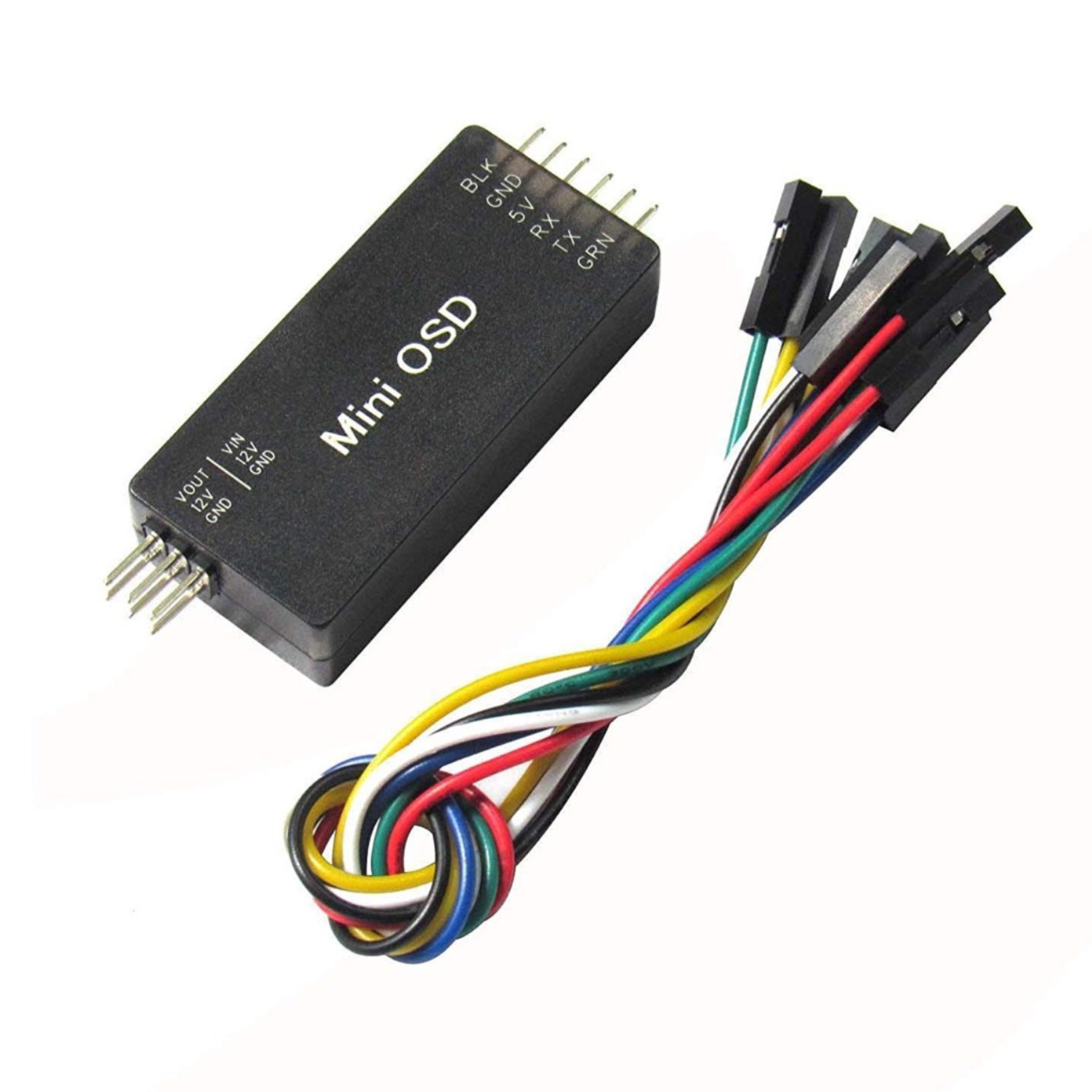

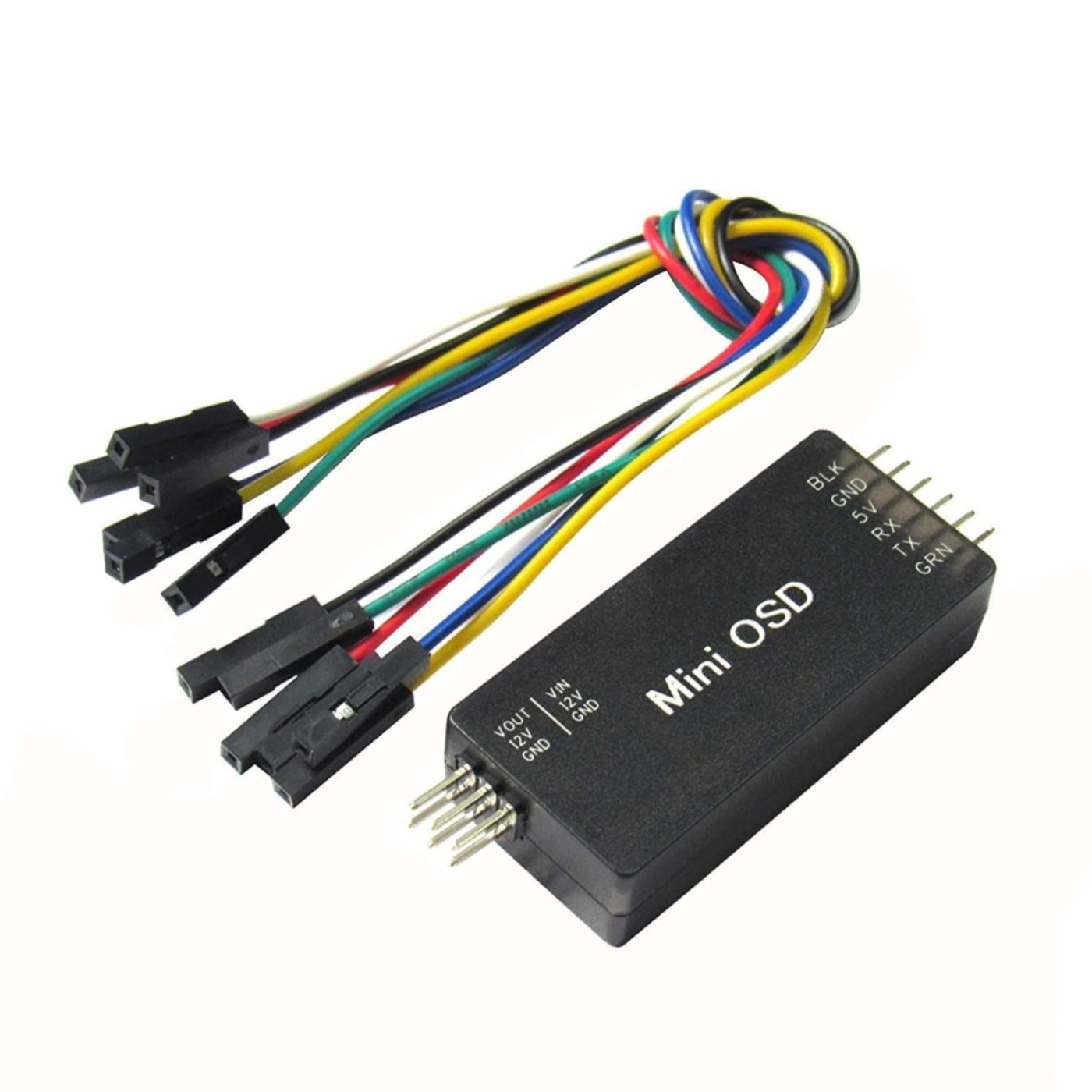

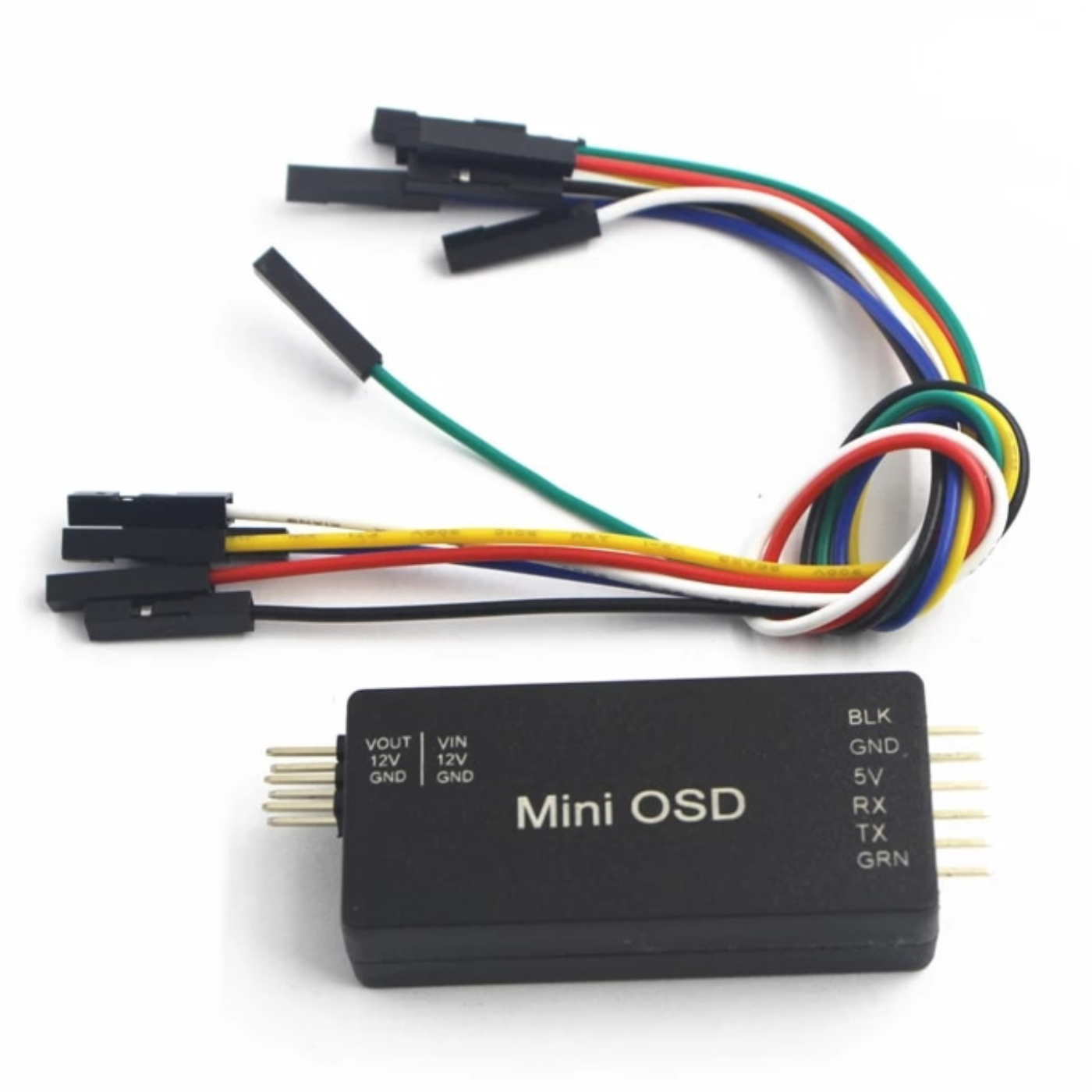

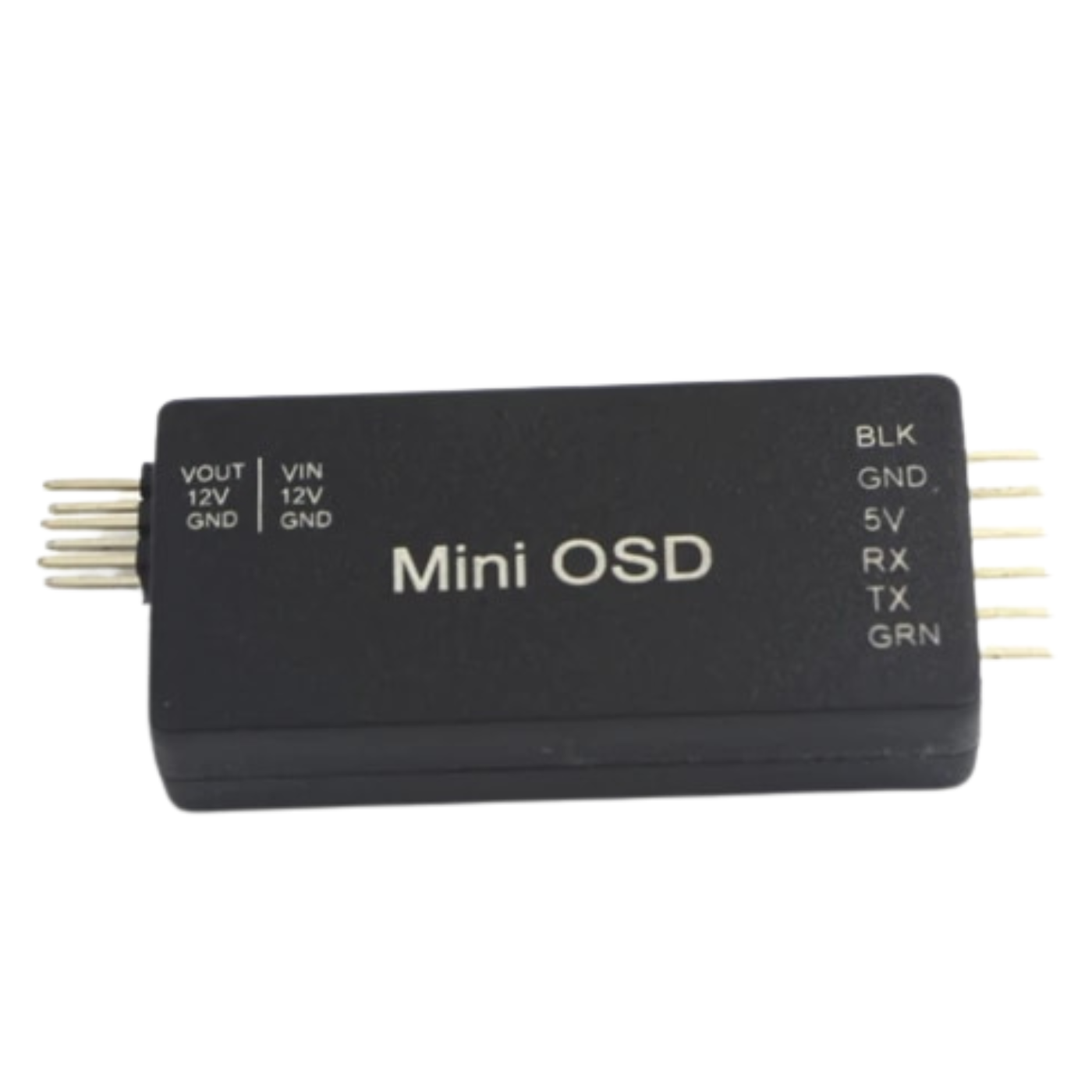

The Mini OSD Module with Plastic Case for APM 2.6 and APM 2.8 is a compact on-screen display board designed to help drone enthusiasts monitor essential flight telemetry during FPV flights. Compatible with ArduPilot Mega flight controllers, this Arduino-based OSD module reads MAVLink telemetry data from the APM system and overlays it onto a video feed when used with an onboard camera and wireless video transmitter.

This allows pilots to view flight information directly on their FPV screen without needing to carry a laptop to the flying field or constantly check Mission Planner. The module features an ATmega328P 8-bit microcontroller with an Arduino bootloader and a MAX7456 monochrome on-screen display chip for video data overlay.

Programming is supported through an FTDI-compatible 6-pin cable, making it suitable for configuration and development in compatible setups. With its small form factor and protective plastic case, this APM Mini OSD board is a practical addition to DIY drone projects, FPV systems, and ArduPilot-based unmanned aerial vehicle (UAV) applications.

Features:

  • Equipped with an ATmega328P microcontroller preloaded with an Arduino bootloader.
  • Features a MAX7456 monochrome on-screen display (OSD) chip.
  • Supports an FTDI-compatible cable connection.
  • Includes a standard 6-pin ISP header, which is not pre-soldered.
  • Provides two separate power sections, each with its own LED indicator.
  • Includes solder jumpers to connect the two power sections when required.
  • Features a solder jumper for selecting PAL video output.
  • Provides accessible test points for HSYNC and LOS signals.
  • Incorporates isolated power and ground sections to help reduce interference in the OSD's analog stage.
  • Digital power section: Supplies +5V to the ATmega328P and the OSD's digital circuitry through an FTDI cable or another compatible +5V source.
  • Analog power section: Provides regulated +5V to the OSD's analog circuitry through the video input/output header and supports an input voltage of up to +12V.
  • Allows the two power and ground sections to be connected using solder jumpers.
  • Compatible with APM 2, APM 2.5, and APM 2.6 flight controllers.
Specifications

Package Includes:

  • 1 x Mini OSD FOR APM 2.6 AND APM 2.8
  • 1 x Set of female to female jumper cables

Specifications:

Item Type Module
IC Chip ATmega328P
Supply Voltage 12 V
Current Rating 500 mA
Dimensions 58 × 22 × 12 mm
