Microswitch KW10-Z1P Limit Switch 1A 125V AC
Microswitch KW10-Z1P Limit Switch 1A 125V AC
Regular price
Rs. 15
Regular price
Rs. 19
Sale price
Rs. 15
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 9 hours and 26 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The Microswitch KW10-Z1P Limit Switch 1A 125V AC contains one group of contacts for switching.
- Presence of the lever.
- Often used as a limit switch (end) in household appliances and amateur radio structures.
- Subminiature PCB micro switch is widely applied to home appliances, audio, toys, mouse, business machines, communication equipment and other electronic equipment
Microswitch KW10-Z1P Limit Switch 1A 125V AC

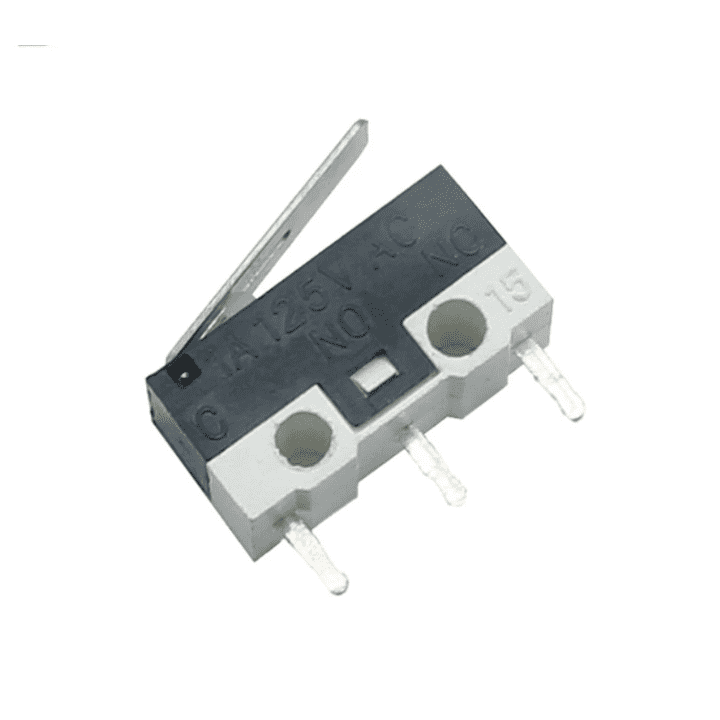

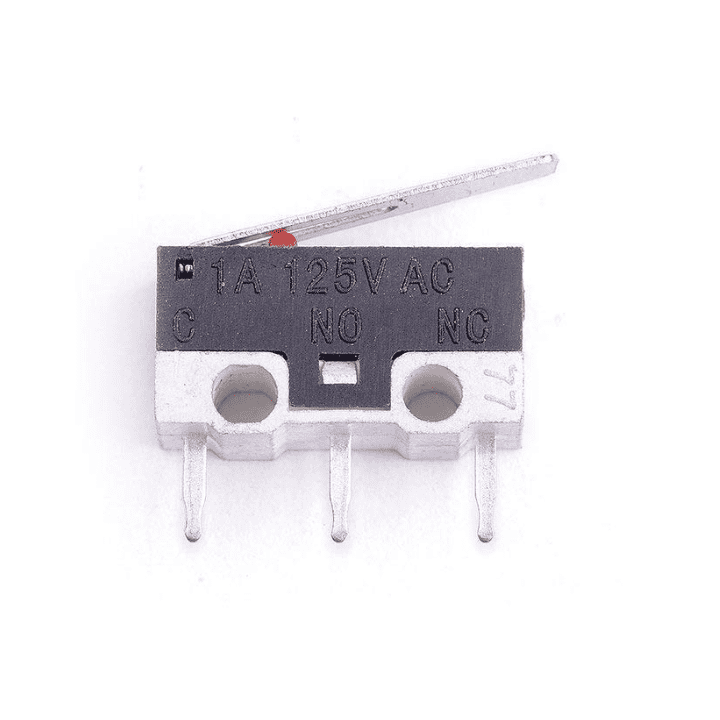

The Subminiature PCB micro switch with 3 pins, SPDT design (1NO + 1NC) momentary. The actuator forms are middle hinge lever. The rating is 1A 125VAC. The subminiature PCB micro switch is made of nylon 66 and metal. The terminal is brass with silver plated. The housing color is black.The pin is a PCB terminal. Operating in all types of electronic equipment such as telephone, audio instruments, TV set, VCR, Automatic machine, communication equipment, car electric, apparatus and, electro motion tool, etc
Package Includes:
- 1 x Microswitch KW10-Z1P Limit Switch 1A 125V AC
Specifications:
| Voltage(V) |
125V AC |
| Operating Current (A) |
1A |
| Contact Resistance |
30mΩ |
| Insulation Resistance (MΩ) |
100 |
| Dielectric Strength |
1000VAC 1Minute |
| Protection Standard |
IP40 |
| Mech. & Electrical Lifecycle |
≈ 30,000 |

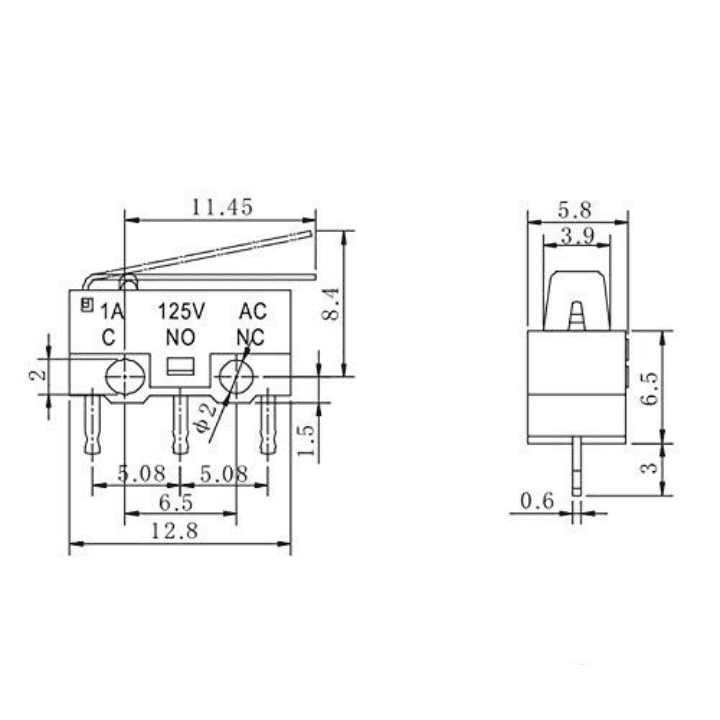

| Dimensions L x B x H (mm) |
12.9 x 6 x 6.5 |
| Weight (gm) |
1 (approx) (each) |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1.What is a KW10-Z1P Limit Switch used for?
- The KW10-Z1P Limit Switch is an electrical switch used to detect and control the position of a mechanical component, such as a moving part in a machine. The limit switch can be used to start or stop a machine, to control the flow of electrical current, or to signal the position of a component.
2.What is the maximum current and voltage rating of the Microswitch KW10-Z1P Limit Switch?
- The maximum current rating of the Microswitch KW10-Z1P Limit Switch is 1 Ampere and the maximum voltage rating is 125 Volts AC. This means that the switch can withstand a maximum electrical current of 1 amp and a maximum alternating current voltage of 125 volts.
3.How does the Microswitch KW10-Z1P Limit Switch work?
- The Microswitch KW10-Z1P Limit Switch operates via a spring-loaded actuator that is activated by the movement of a mechanical component. When the component moves, the actuator opens or closes an electrical contact, which controls the flow of electrical current in the circuit. The limit switch can be used to start or stop a machine, to control the flow of electrical current, or to signal the position of a component.
