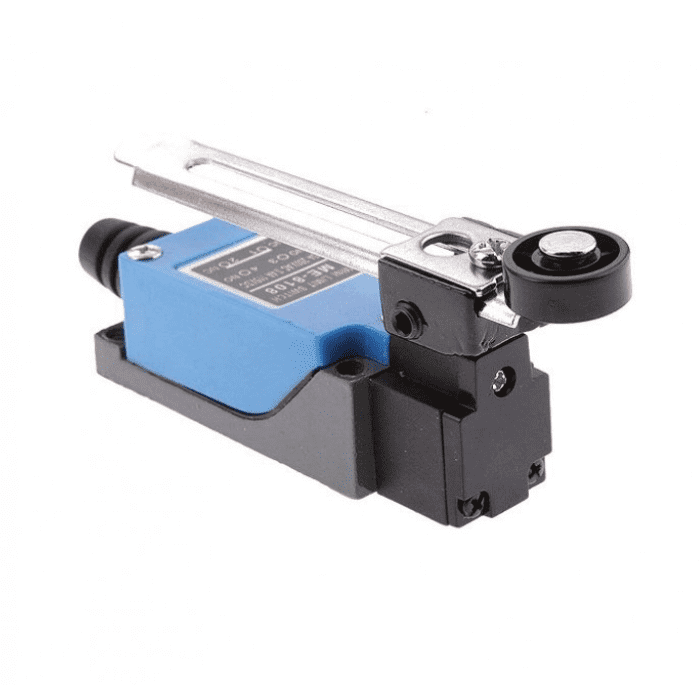

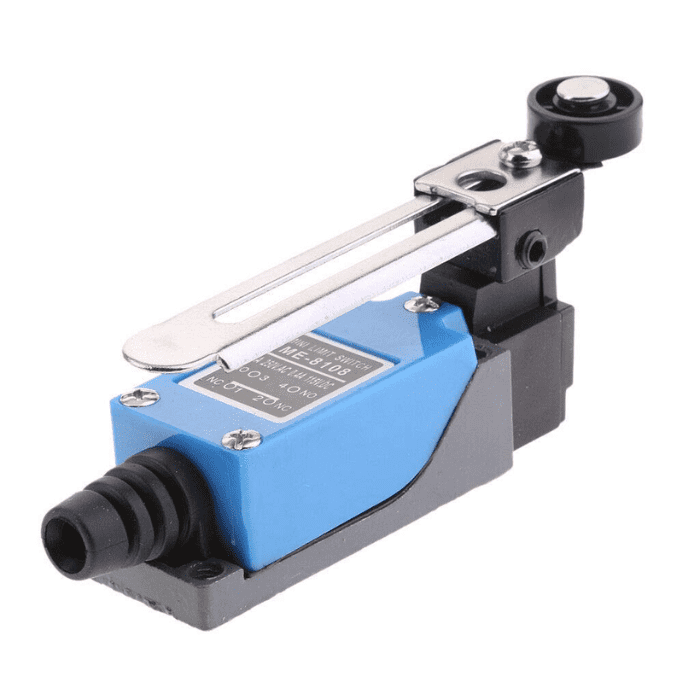

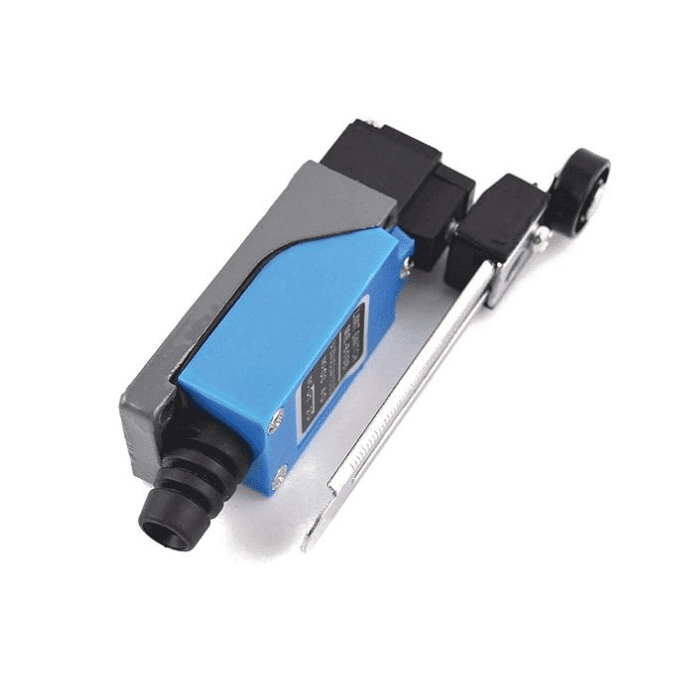

ME-8108 Rotary Adjustable Roller Lever Arm AC Limit Switch

ME-8108 Rotary Adjustable Roller Lever Arm AC Limit Switch

Rs. 105
Rs. 164 Rs. 105
Sale Sold out 36% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 23 people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
  • The Actuator action of this Limit Switch is momentary.
  • Actuator type rotary adjustable lever arm with a roller.

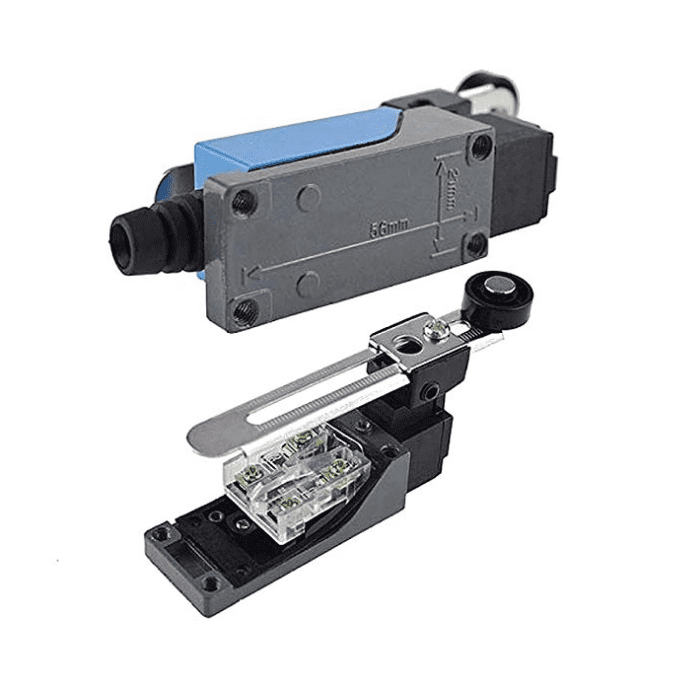

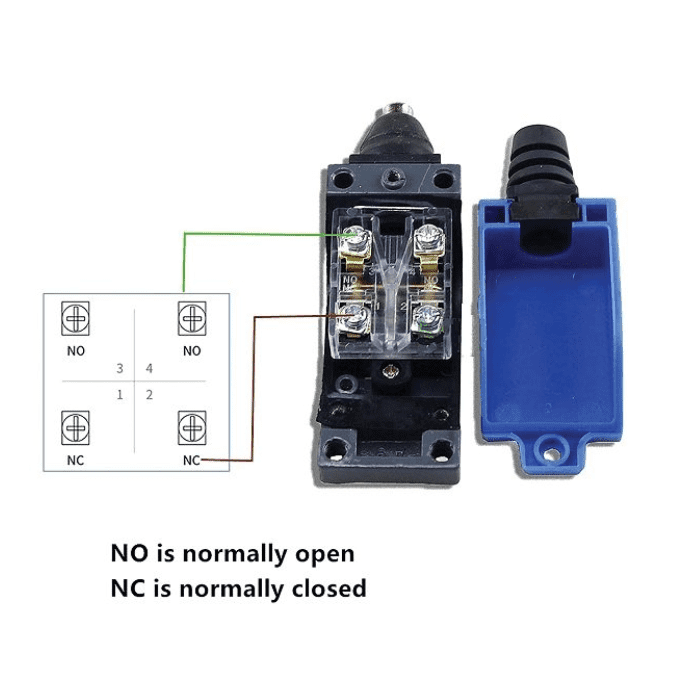

  • Contact configuration 2 NC + 2 NO.
  • Lever Arm can be rotated to the left by 90 degree and to the right by 90 degree.
  • Small volume , water proof and oil proof construction
  • Double circuit type limit switch.
  • These roller lever limit switches are applied to a wide range of applications including object positioning and detection.

ME-8108 Rotary Adjustable Roller Lever Arm AC Limit Switch for CNC Machines

ME-8108 Rotary Adjustable Roller Lever Arm Mini Limit Switch also named the POSITION SWITCH, is a commonly used small current main electrical appliances, the contact action is realized through the collision of the moving parts of the production machinery or segmented control circuit, achieving a particular control target.  Most popular use is a limit switch for DIY CNC mills.

The lever arm can be rotated to the left by 90° degree and to the right by 90° degree. Perfect for electrical control switches in mechanical and other industries; This Limit Switch can be widely used in various machines to monitor the position of moving parts of machines and plants; Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works.

Features:

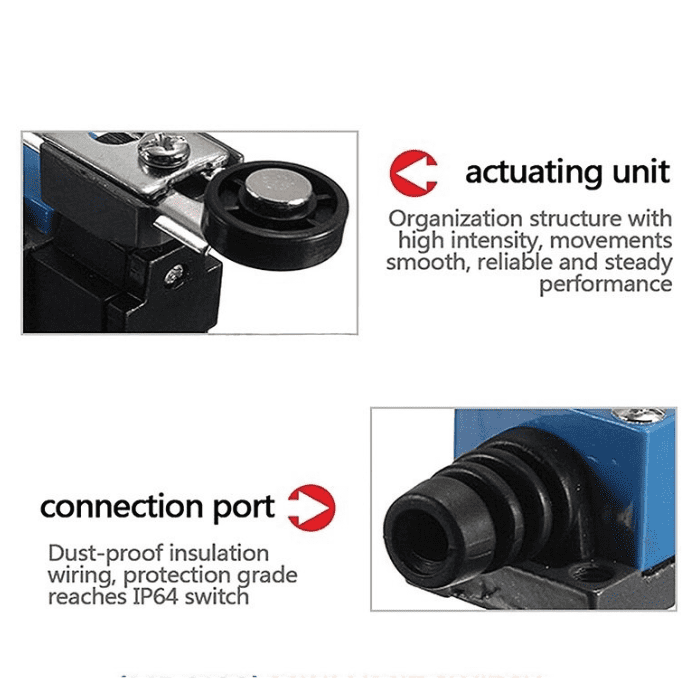

  • Adjustable Roller Lever Arm: The lever arm can be rotated 90 degrees to the left or right, providing flexibility in installation.
  • High Durability: Rated for 300,000 electrical cycles and 10,000,000 mechanical cycles.
  • Wide Voltage Range: Can handle up to 250V AC and 115V DC.
  • Momentary Actuator Action: The switch operates momentarily when the lever arm is actuated.
  • Dustproof and Water Resistant: Features IP65 ingress protection, making it suitable for harsh environments.
  • Versatile Applications: Commonly used in production lines, robotics, CNC machines, and IoT projects.

Applications:

  • Production Lines: Used to monitor and control the position of moving parts in automated production lines.
  • Robotics: Helps in detecting the position and movement of robotic arms and other components.
  • CNC Machines: Ensures precise positioning and movement control in CNC drilling and milling machines.
  • IoT Projects: Integrated into IoT systems for monitoring and controlling various mechanical processes.
  • Safety Mechanisms: Acts as a safety switch to prevent machinery from operating outside of set parameters.
  • Home Automation: Used in smart home devices to detect the position of doors, windows, and other moving parts.

Package Includes:

  • 1 x ME-8108 Rotary Adjustable Roller Lever Arm AC Limit Switch

Specifications:

Model

ME-8108
Voltage Rating

AC380V, 6(2)A, AC250V, 10(4)A.
Actuator action

Momentary
Material

Resin, Plastic, Metal.

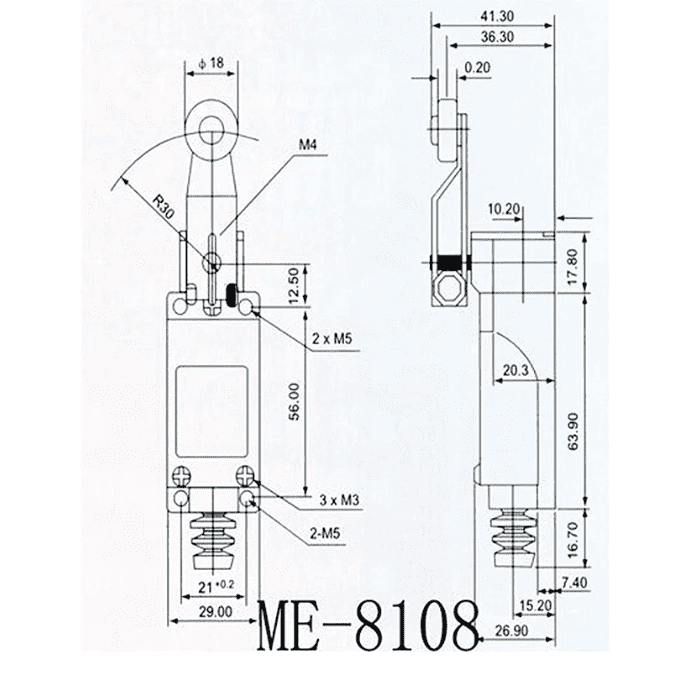

Roller Dimension

1.8 x 0.7cm / 0.7 x 0.3"(D*H)
Lever Arm Length

10cm / 3.9"
Weight (gm)

92
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-26%
2A 125V AC Microswitch KW10-Z1P Limit Switch-Robocraze

2A 125V AC Microswitch KW10-Z1P Limit Switch

Rs. 14
Rs. 19 Rs. 14
Incl. GST (No Hidden Charges)
Sale
-21%
Microswitch KW10-Z1P Limit Switch 1A 125V AC-Robocraze

Microswitch KW10-Z1P Limit Switch 1A 125V AC

Rs. 15
Rs. 19 Rs. 15
Incl. GST (No Hidden Charges)
Sold out
-36%
Arm Lever 28mm, 250V 5A SPDT 3-Pin Momentary Plastic Micro Limit Switch-Robocraze

Arm Lever 15mm, 250V 6A SPDT 3-Pin Momentary Plastic Micro Limit Switch

Rs. 44
Rs. 69 Rs. 44
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. What is the primary function of the ME-8108 limit switch?

  • The primary function of the ME-8108 limit switch is to detect the presence or absence of an object in industrial applications. It uses a rotary adjustable lever arm with a roller to sense the position of moving parts

2. What are the voltage ratings for this limit switch?

  • The ME-8108 limit switch has a voltage rating of AC 250V 5A and DC 115V 0.4A, making it suitable for various electrical systems

3. How does the IP66 rating benefit the ME-8108 limit switch?

  • The IP66 rating means the switch is dust-tight and water-resistant, allowing it to operate reliably in harsh environments. This makes it suitable for use in industrial settings where exposure to dust and moisture is common

4. Can the lever arm of the ME-8108 limit switch be adjusted?

  • Yes, the lever arm of the ME-8108 limit switch can be rotated 90 degrees to the left or right, providing flexibility in installation and operation

5. What are some common applications of the ME-8108 limit switch?

  • Common applications include:

    Industrial Automation: Detecting the position of moving parts in machinery.
    CNC Machines: Position detection in CNC mills and routers.
    Conveyor Systems: Detecting the position of items on conveyor belts.
    Safety Mechanisms: Ensuring safe operation of machinery through safety interlock systems
