- The Mastech MS8217 provides all of the functionality needed in a DMM, DC and AC Voltage and Current measurement, resistance measurement, capacitance measurement and temperature measurement.
- Users can choose between manual or automatic ranging, and have the piece of mind of convenient replaceable fuses, and a battery life of up to 500 hours.
- Built ruggedly for everyday use, the MS8217 digital multimeter is perfect for reliable & stable electrical testing.
- Auto range and manual ranging mode and Relative measurement mode.
- Test AC/DC voltage, AC/DC current, resistance, capacitance, frequency and duty cycle
- K-type thermocouple contact temperature measurement
This product is not available for store pickup. Apologies for the inconvenience caused |

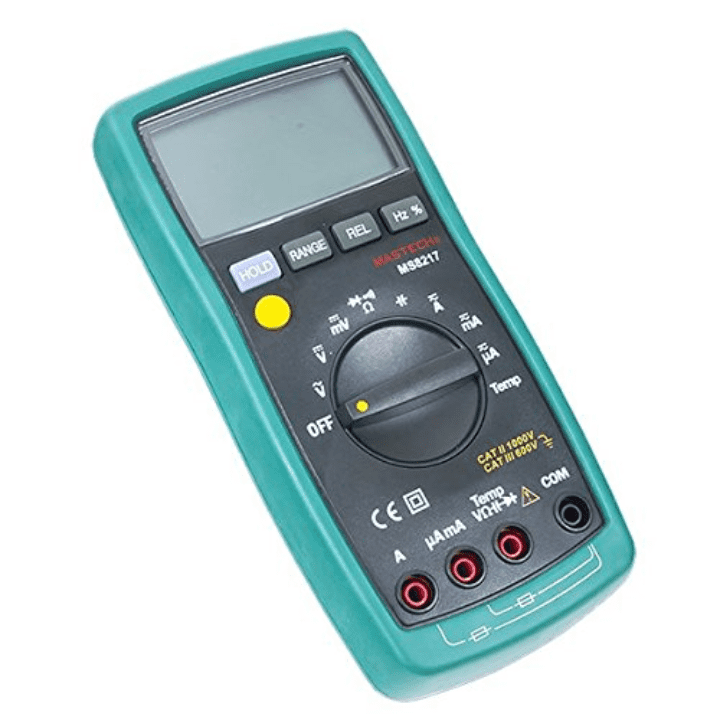

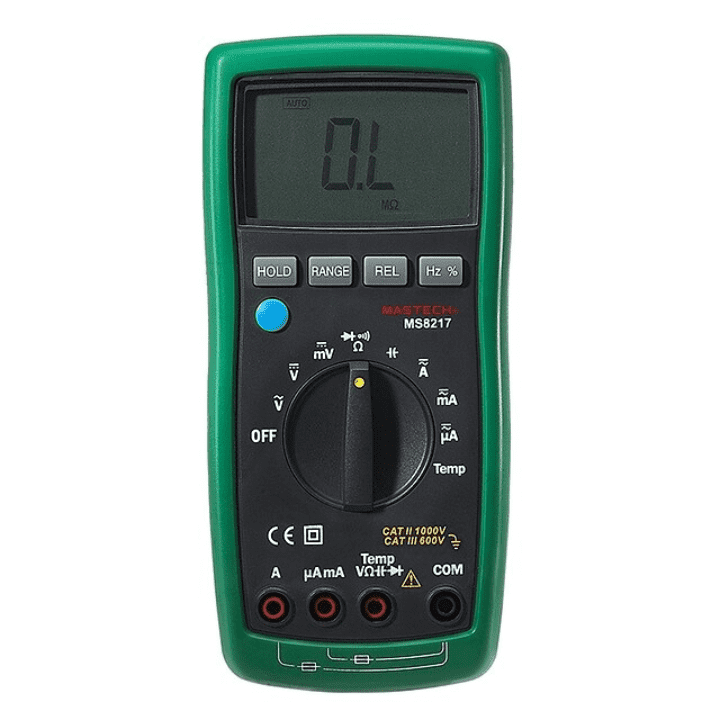

Mastech MS8217 Digital Multimeter Meter
MASTECH MS8217 Digital multimeter with wide temperature range provides measuring of pulse ratio, temperature, capacity and frequency. The device equipped with illuminated 3999 counts display. Automatic power off.
Features:
- Display: 4000 counts for precise readings.
- Ranging: Auto and manual ranging options.
- Auto Power Off: Conserves battery life by automatically powering off when not in use.
- Relative Measurement: Allows for relative measurements to be taken.
- Diode Test: Open voltage of 1.5V.
- Continuity Buzzer: Sounds for resistance less than 50±20Ω.
- Data Hold: Freezes the current reading on the display.
- Backlight: Illuminates the display for easy reading in low-light conditions.
- Low Battery Display: Indicates when the battery is low.
- Safety Ratings: CAT II 1000V and CAT III 600V, ensuring safe operation in various environments.
Applications:
- Electronics Repair: Diagnosing and repairing electronic circuits and components.
- Electrical Installations: Testing and verifying electrical installations in residential, commercial, and industrial settings.
- Automotive: Measuring voltage, current, and resistance in automotive electrical systems.
- Education: Teaching and learning about electrical measurements in schools and universities.
- Research and Development: Conducting experiments and developing new electronic devices.
- Home Use: Troubleshooting household electrical issues and appliances.
- Industrial Maintenance: Monitoring and maintaining industrial equipment and machinery

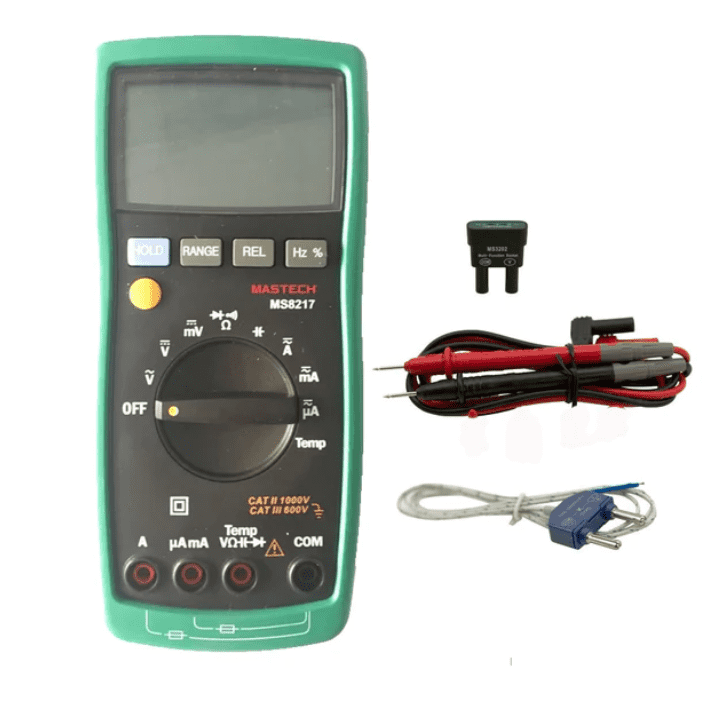

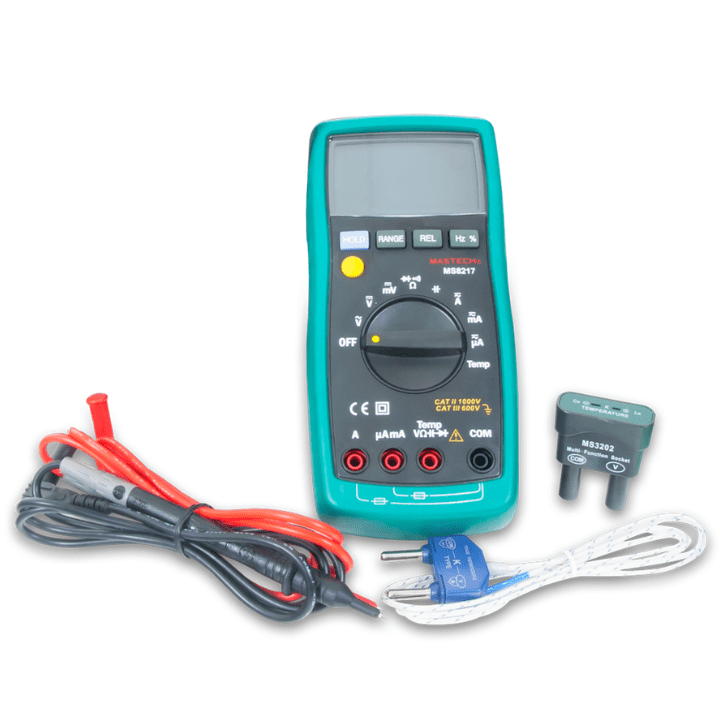

Package Includes:
- 1 x Autorange Digital Multimeter (MS8217)
- 1x Two detachable test leads with shrouded plugs and capped tips
- 1x Multi-function socket
- 1x K-Type temperature probe
- 1x User manual
Specifications:
DC Voltage range | 0.1 mV - 1000 V |
DC Voltage accuracy | ±(0.5%+3digits) |
DC Current range | 0.1 μA - 10 A |
DC Current accuracy | ±(1.5%+3digits) |
AC Voltage range | 0.1 mV - 1000 V |
AC Voltage accuracy | ±(1.0%+3digits) |
AC Voltage Freq. response | 40 Hz - 500 Hz |
AC Current range | 0.1 μA - 10 A |
AC Current accuracy | ±(1.5%+3digits) |
AC Current Freq. response | 40Hz-200Hz |
Resistance range | 0.1 Ω - 40 MΩ |
Resistance accuracy | ±(0.5%+2digits) |
Capacitance range | 0.01 nF - 100 μF |
Capacitance accuracy | ±(3.0%+5digits) |
Frequency/duty Cycle Range | 10 Hz - 100 kHz |
Frequency/duty Cycle Accuracy | ±(0.1%+3digits) |
Temperature Range | -55°C - 1000°C |
Temperature Accuracy | ±(2.0%+1°C) |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Share
People Also Buy
SANWA CD800A Digital Multimeter
Regular price
Rs. 4,424
Regular price
Rs. 5,310
Sale price
Rs. 4,424
Unit price
/
per
You save Rs. 886 |
Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Sale
Owon HDS242 40 MHz Handheld Digital Multimeter
Regular price
Rs. 13,949
Regular price
Rs. 16,449
Sale price
Rs. 13,949
Unit price
/
per
You save Rs. 2,500 |
Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Sale
Owon HDS272S 70 MHz Handheld Digital Multimeter
Regular price
Rs. 22,433
Regular price
Rs. 29,999
Sale price
Rs. 22,433
Unit price
/
per
You save Rs. 7,566 |
Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
-
⚡ Dispatched within 24 hours
-
💰 Earn RC Coins on every purchase
-
🚚 Free shipping on orders above Rs 500/-
-
🛠️ Dedicated Technical Support Team
1. What types of measurements can the Mastech MS8217 perform?
- The MS8217 can measure DC and AC voltage, DC and AC current, resistance, capacitance, frequency, duty cycle, and temperature.
2. Does the MS8217 have an auto-ranging feature?
- Yes, the MS8217 supports both auto and manual ranging, allowing users to select the most appropriate measurement range.
3. What is the display count of the MS8217 multimeter?
- The multimeter features a 4000-count display, providing precise and accurate readings.
4. What additional features does the MS8217 offer?
- The MS8217 includes a continuity buzzer, diode test, data hold function, and a backlit display for easy reading in low-light conditions.
5. What type of power supply does the MS8217 use?
- The multimeter operates on 3x1.5V AAA batteries.
Customer Reviews
5
4
(0)
3
(0)
2
(0)
1
(0)
- Reviews
- Questions
Veenu Arora V. A. Veenu A. 16-10-2022
Question asked: Can this voltmeter measure human voltage? Can it measure 0.1 my?
Can this voltmeter measure human voltage? Can it measure 0.1 my?
Answers
09-10-2024
Hello! We cannot measure human voltage using the Mastech MS8217 Digital Multimeter. This multimeter is not designed for measuring the small voltage potential of the human body and attempting to do so may not yield accurate or safe results. Thank you!
