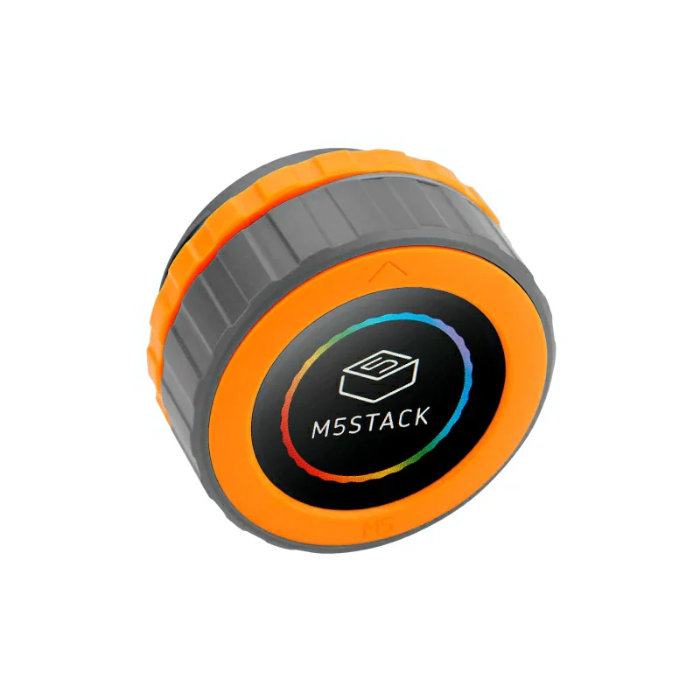

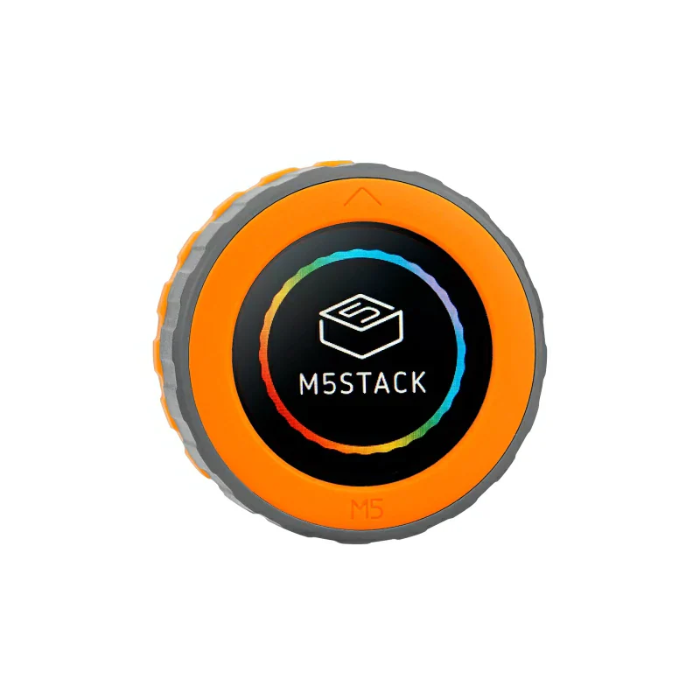

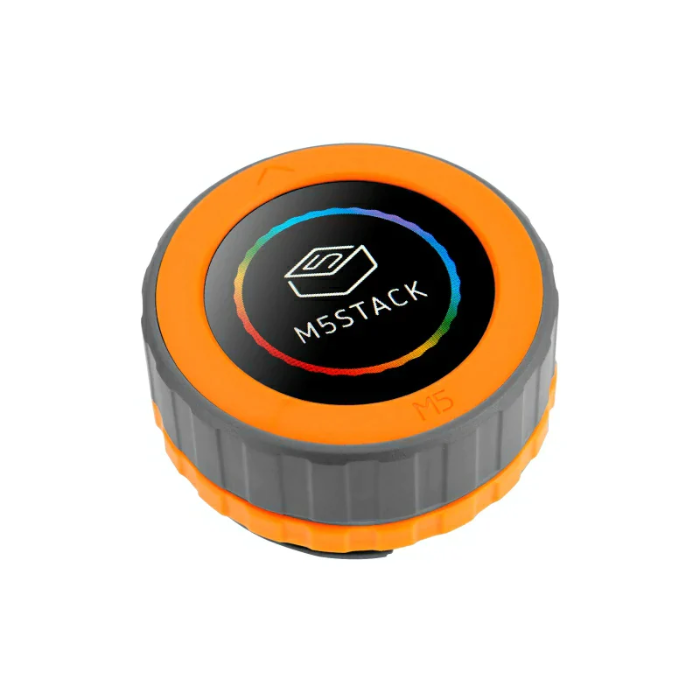

M5Stack Dial - ESP32-S3 Smart Rotary Knob with 1.28" Round Touch Screen

M5Stack Dial - ESP32-S3 Smart Rotary Knob with 1.28" Round Touch Screen

Regular price Rs. 5,849
Regular price Rs. 7,499 Sale price Rs. 5,849
Sale Sold out 22% off Best Price Guaranteed
You save Rs. 1,650
Incl. GST (No Hidden Charges)

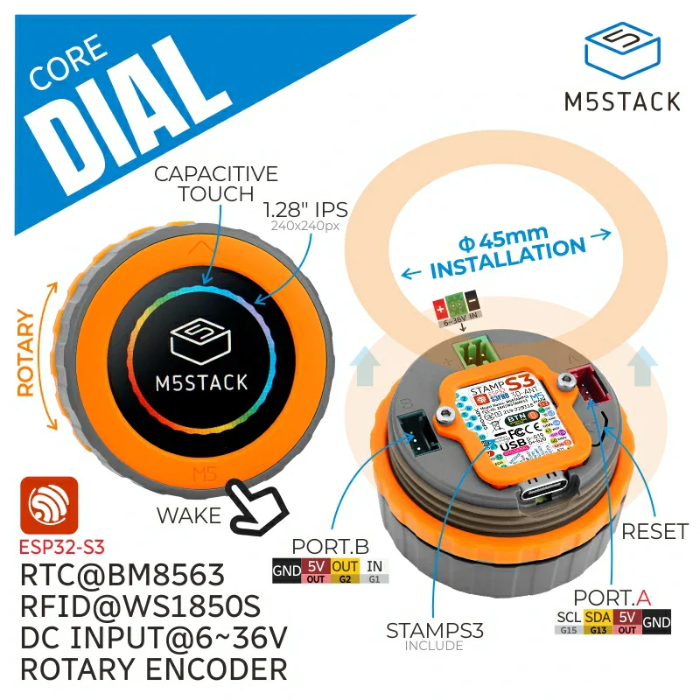

  • Enjoy intuitive interaction with the circular TFT touchscreen.
  • Powered by the advanced M5StampS3 microcontroller
  • Precise encoder for fine-tuning settings and navigating through menus with ease.
  • Integrated RFID functionality for secure access control and personalized user experiences.
  • Accepts voltages from 6V to 36V
  • Compatible with Arduino, UIFlow, and ESP-IDF programming platforms
  • Reserved PORTA and PORTB interfaces for expanding connectivity with additional peripherals and accessories.

M5Stack Dial - ESP32-S3 Smart Rotary Knob with 1.28" Round Touch Screen

Now it's easy to take your projects to the next level with the M5Stack Dial. The M5Stack Dial - ESP32-S3 Smart Rotary Knob with 1.28" Round Touch Screen, is the ultimate solution for tactile control and easy interaction!

Discover the M5Stack Dial powered by the formidable ESP32-S3 MCU, housing the Xtensa LX7 core and boasting 8M-FLASH. With features like WiFi and OTG\CDC functions, it's ready to handle any task you throw at it. Whether it's batteries, power adapters, or other sources, the M5Stack Dial easily adjusts to your power requirements with a voltage input range from 6V to 36V.

It will provide you a stunning visuals with the 1.28-inch round touch screen, featuring a sharp 240x240px resolution. And with the GC9A01 screen driver, you will see every detail with clarity and accuracy. Navigate with ease and accuracy with the help of the FT3267 touch driver like a smartphone, you can swipe through menus, tweak settings, or interact with your projects smoothly. Whether it's access control systems or personalized user experiences, the options are limitless cause of the improved security and convenience with the built-in RFID feature powered by the WS1850S chip. With those, it includes a lot of features that are going to blow your mind.

Are you a beginner or an expert, doesn’t matter! the M5Stack Dial has the power to make your projects easier and more fun!

Applications:

  • Industrial automation
  • Smart home management
  • Internet of Things (IoT) projects
  • Access control systems

Package Includes:

  • 1x M5Stack Dial - ESP32-S3 Smart Rotary Knob with 1.28" Round Touch Screen

Specification:

 MCU ESP32-S3@Xtensa LX7 ,8M-FLASH,WIFI,OTG\CDC Function
Screen driver GC9A01
1.28 Inch 240x240px
Voltage input range  6-36V
Touch driver
FT3267
RFID  WS1850S
Standby current (battery-powered standby current)  DC4.2V/1.9uA
Working current DC6V power supply DC6V/140.6mA
DC12V power supply: DC12V/82.5mA
DC36V power supply: DC36V/28.1mA
Product Size  45*45*32.3mm
Product Weight  46.6g
