LED Driver Board for XIAO – Control 5V & 12V RGB Strips
LED Driver Board for Seeed Studio XIAO (293)
- Rs 1,250/-
- Rs 1,250/-
-
Rs 1,999/-
- 37%
Save Rs 749/-
RC REWARDS
Earn
12
RC Coins
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 2 left in stock
SKU:
TIFC00314
Couldn't load pickup availability
LED Driver Board for Seeed Studio XIAO (293)
LED Driver Board for Seeed Studio XIAO (293)

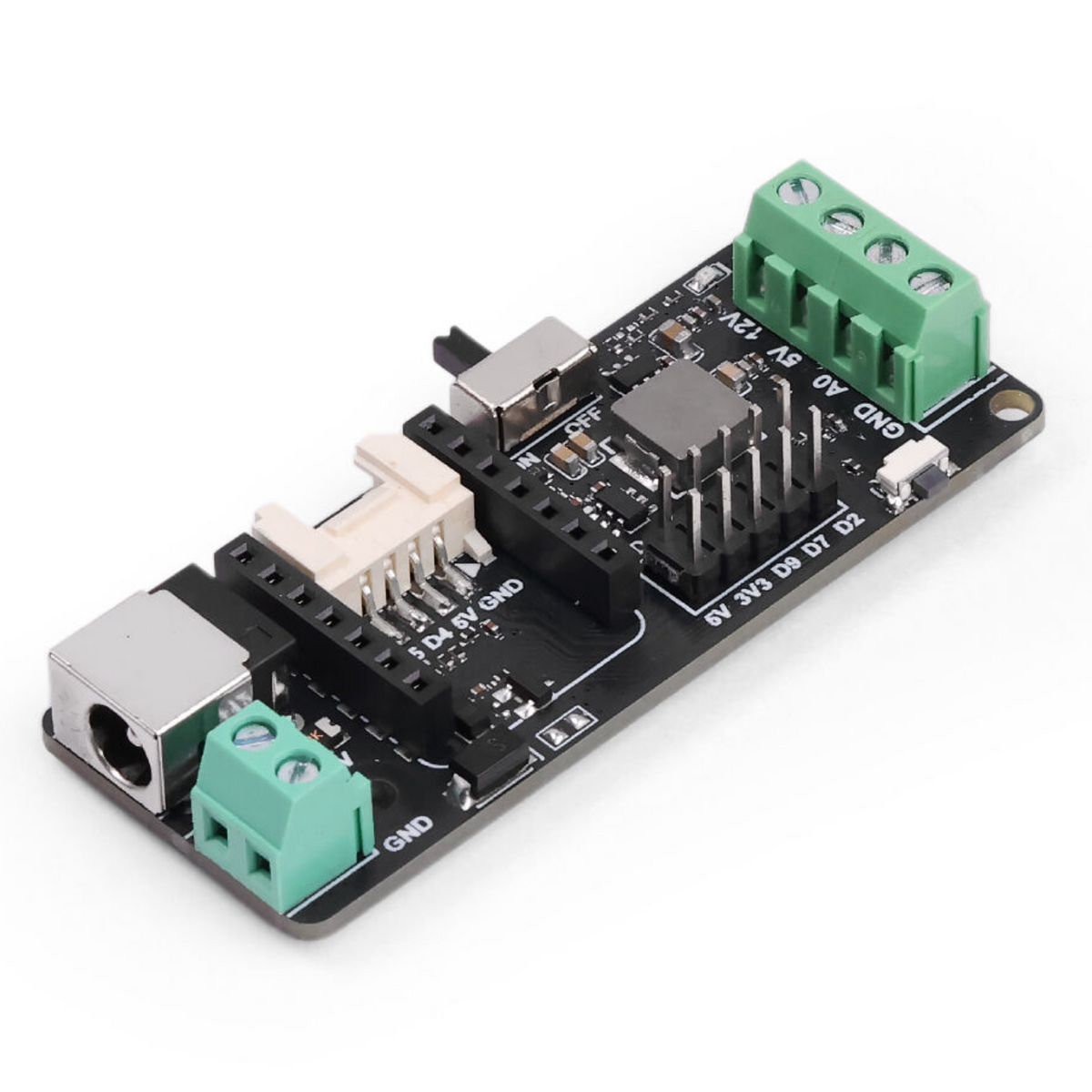

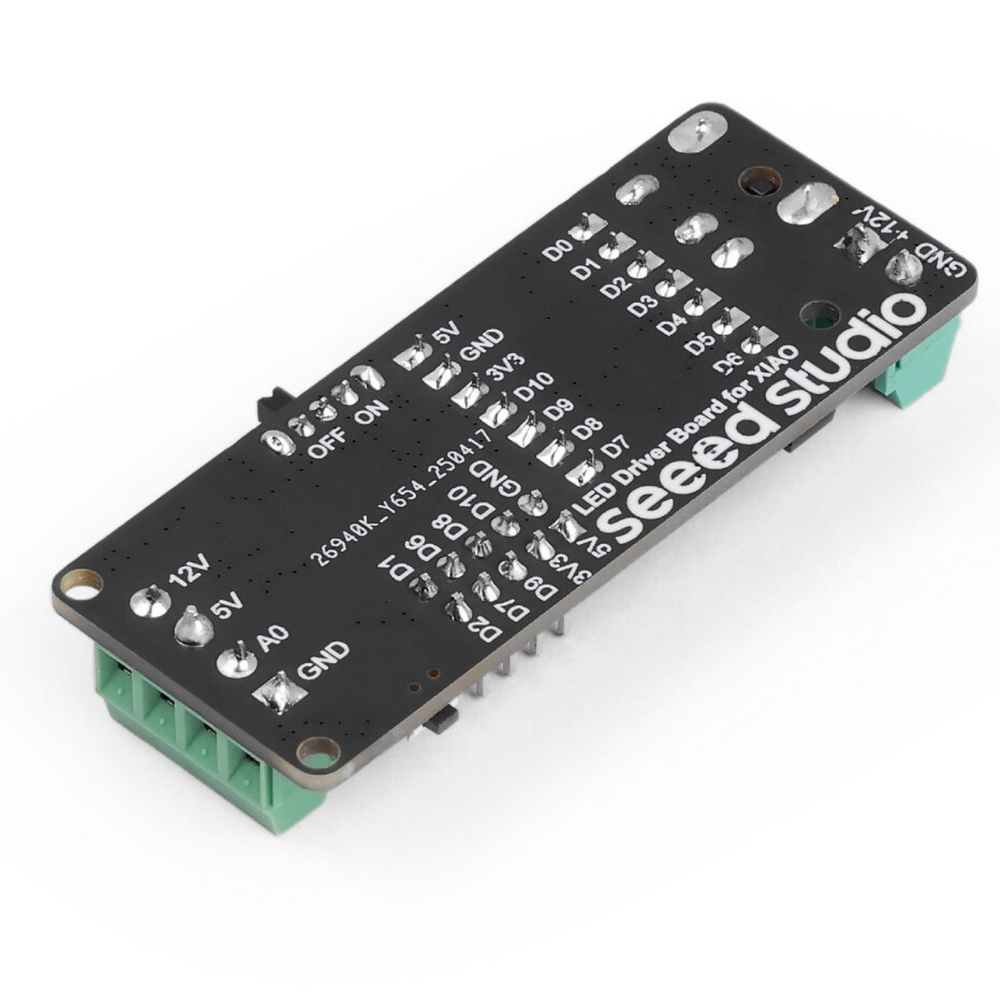

LED Driver Board for XIAO – Supports 5V and 12V LED Strips
The LED Driver Board for XIAO by Seeed Studio is a versatile and compact solution designed for driving 5V and 12V LED strips, including popular addressable RGB LEDs like NeoPixel WS2812, WS2813, and WS2815.
This LED driver board seamlessly integrates with all XIAO boards, providing smart lighting control and automation when paired with XIAO ESP32 Series using WLED and Home Assistant.
It offers flexible power supply options, making it ideal for a wide range of lighting projects.
Additionally, the board comes with comprehensive protection features, ensuring safe and reliable operation in home automation and creative lighting setups.
Related Boards & RGB LED Strips
Features:
- Wide LED Compatibility: Supports 5V/3A and 12V/2A strips with integrated power regulation. Fully compatible with single-color and 1-wire addressable RGB LEDs (WS2811/12/13/15, SK6812).
- XIAO Compatibility for Smart Control: Fits all Seeed XIAO boards. Pair with XIAO ESP32 (C3/S3/C6) for WLED app control (colors, effects, animations) and seamless Home Assistant/ESPHome smart home integration.
- Grove Ecosystem Compatibility: Features an onboard Grove interface compatible with 400+ Seeed modules (sensors, accelerometers, etc.) to easily add interactive, environment-responsive lighting effects.
- Flexible Power Input: Accepts 12V/2A via a standard 5.5 x 2.1mm DC barrel jack (EU/US adapters) or direct wiring, ideal for both temporary and permanent setups.
- Compact Form Factor: Space-efficient design allows for inconspicuous installation in tight spaces directly alongside LED strips without sacrificing functionality.
- Comprehensive Protection: Built-in overcurrent, overvoltage, overtemperature, and short-circuit protection ensures safe, reliable operation and long component life.
Hardware Overview:
- For 5 V LED strips: each LED can draw up to ~50 mA at full brightness.
- This means 30 LEDs may draw ~1.5 A at full brightness.
- For 12 V LED strips driven via the driver board: ensure the external 12 V power supply can provide at least 2 A (or more depending on strip length) as per driver spec.
- Always ensure common ground between the XIAO board and the LED power supply to avoid signal issues.
- For long LED runs, consider splitting power injection (powering from multiple points) to avoid voltage drop and uneven brightness.
Mini-Project: Make Your Own Reactive Light Strip
This is a simple project to build an interactive, reactive light strip for music lighting, ambient mood lighting, or interactive desk lighting.
- Mount your XIAO board on the LED Driver Board for XIAO.
- Connect a 5 V or 12 V addressable RGB strip (like WS2812 / WS2812B / WS2813 / WS2815), matching the voltage to strip specs.
- Provide a suitable external power supply (5 V or 12 V) with enough current for example, for a strip of 30 LEDs at full brightness, expect ~1.5 A draw if using 5 V.
- Ensure a shared ground between the strip’s power supply and the XIAO board to maintain a common reference for data signals.
- Upload a control sketch (Arduino + libraries like FastLED or Adafruit NeoPixel) to your XIAO to drive dynamic animations like fades, color cycles, reactive patterns, etc.
- Optionally add sensors (sound, motion, light) to make the strip reactive for e.g. pulse with music, change color when motion detected, or adjust brightness based on ambient light. Use XIAO’s GPIO or Grove interface as supported by the driver board.
- Test and tune brightness and animation speed for best results while ensuring power draw stays within safe supply limits.
Tiny board, huge potential – start building today!
Applications:
- Home Lighting & Decoration: RGB strip lights, wall lights, and holiday decorations
- Educational and Science Experiments: Coding and Microcontroller Education, LED Light Design, Physical Data Visualization
- Gaming and interactive installations: PC case illumination, around-screen LED effects, interactive LED floor or wall.
- DIY Projects and Fun Uses: LED name boards, LED clocks, DJ disco lights, RGB mood lighting.
Package Includes:
- 1 x LED Driver Board for XIAO Supports 5V and 12V LED Strips -Seeed Studio
Specifications:
| Item | Detail |
|---|---|
| Supported LED Models |
Single-color LEDs Addressable RGB LEDs (WS2811, WS2812, WS2812B, WS2813, WS2815…) Other 1-wire protocol LEDs |

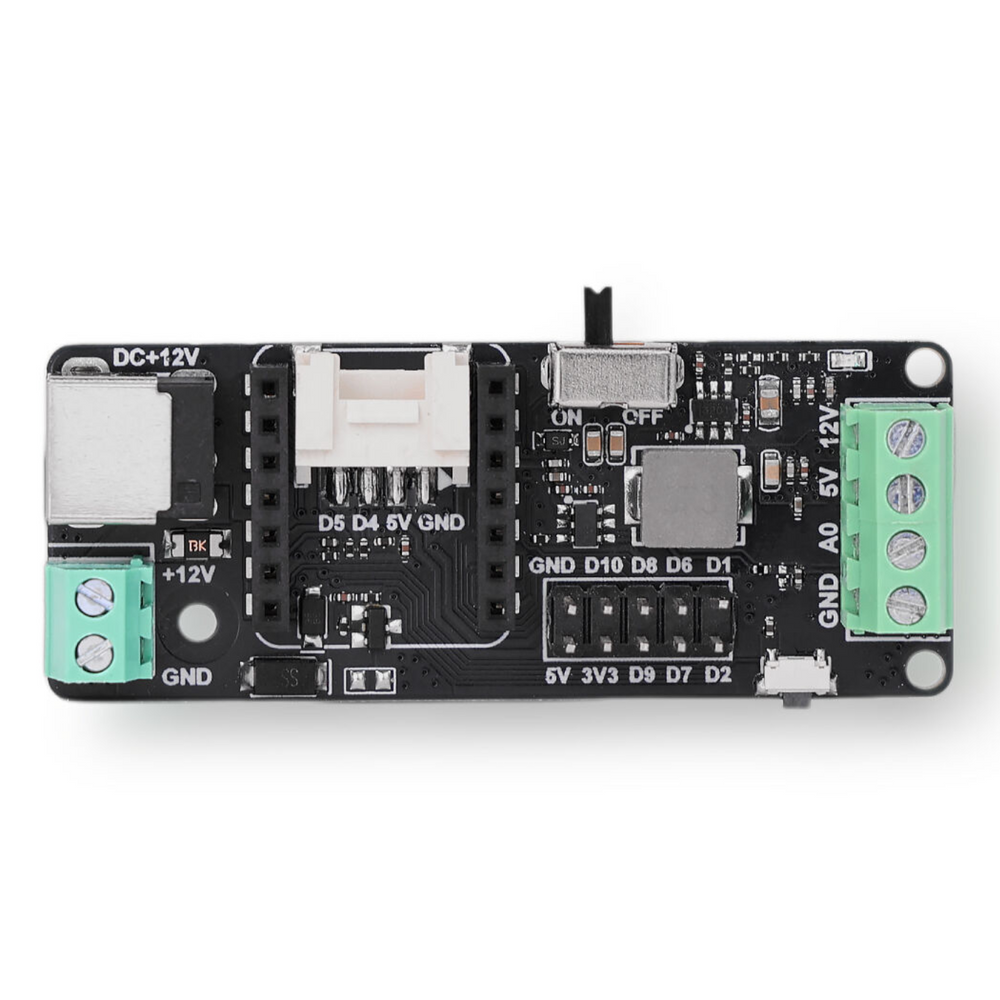

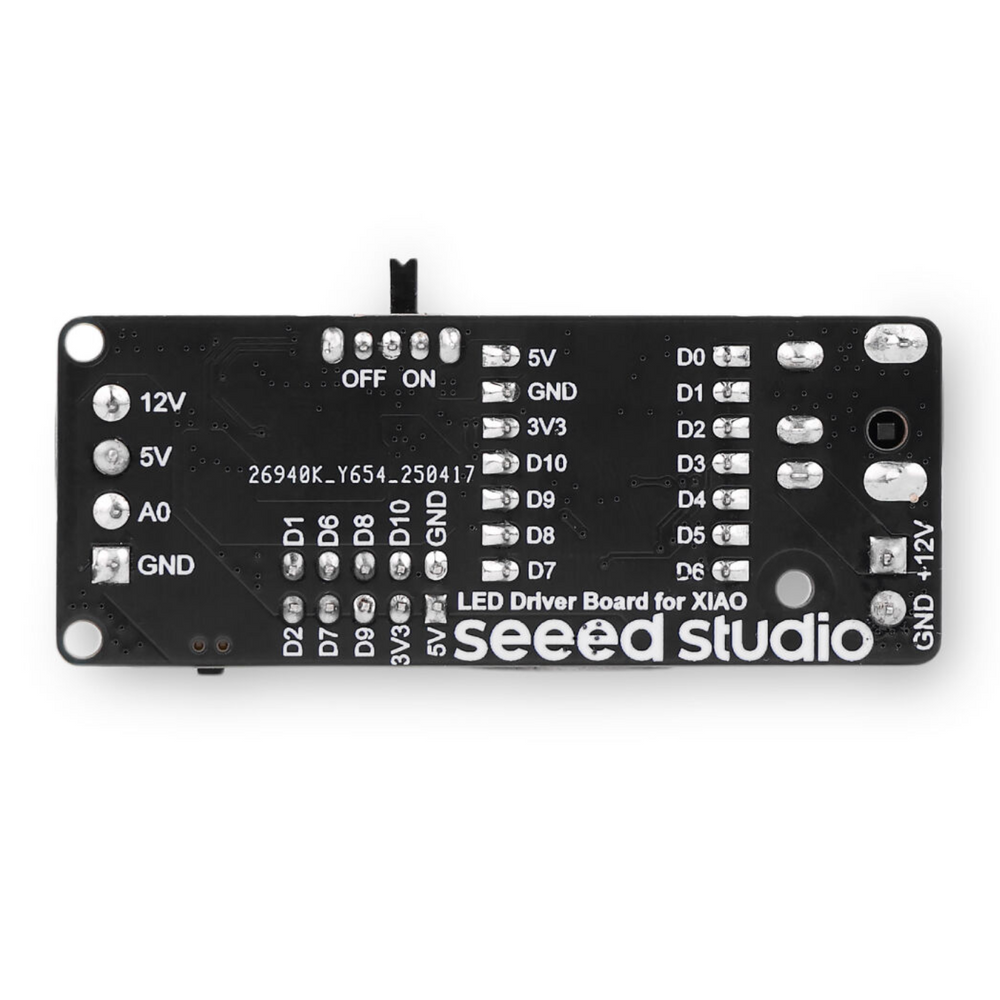

| LED Connector |
4-Pin 3.81mm Screw Terminal Block Connector: - 12V - 5V - A0 - GND |
| Power Input |
Power Adapter, 12V/2A/24W, European Standard Plug, DC Output Power Adapter, 12V/2A/24W, American Standard Plug, DC Output Other DC 12V Power Adapter with 5.5mm x 2.1mm x 10±0.3mm Plug DC 12V Wire |
| LED Power Support | DC 12V / DC 5V |
| Operating Current | 12V / 2A, 5V / 3A |
| Onboard Features |
Power Switch x1 Grove I²C Connector x1 User Button (D3) x1 Power LED x1 |
| User Pin Header | SPI x1, UART x1, Digital x2 |

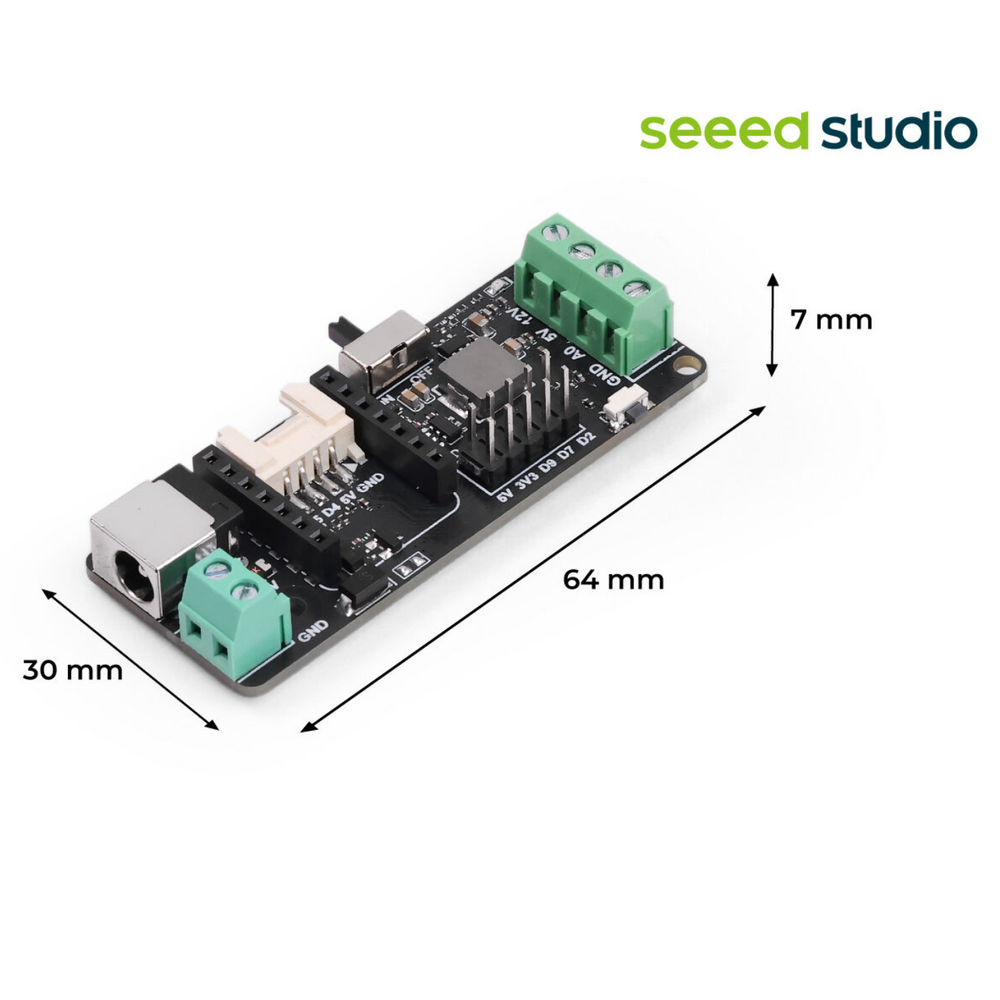

| Dimensions | 63mm x 30mm x 14.4mm |
1. How to connect the LED Driver Board for XIAO to 5V or 12V LED strips?
Plug the LED Driver Board for XIAO directly onto your XIAO microcontroller and connect your 5V or 12V LED strips to the screw terminals, matching polarity carefully. The board supports both voltage types, enabling control of a wide range of addressable or analog strips. Use separate power for longer strips to avoid overloading the XIAO.
2. How to control LED lighting effects using the XIAO LED Driver Board?
Program the XIAO LED driver board using Arduino IDE to create dynamic lighting effects like fades, chases, or color wipes. The board works with libraries such as FastLED or Adafruit NeoPixel to control brightness, color, and animation timing. This gives you full flexibility over 5V and 12V LED strips in both ambient and functional lighting setups.
3. How to power the LED Driver Board for XIAO safely?
For short LED runs, power the LED Driver Board for XIAO through the XIAO’s USB connection. For longer or brighter 5V and 12V LED strips, use an external power supply connected to the board’s power input terminal. Always match the supply voltage to your LED strip’s rating and ensure common ground between the XIAO and external power to prevent signal issues.
4. How to use the LED Driver Board for XIAO in DIY lighting projects?
This XIAO LED driver board is perfect for compact DIY lighting projects like under-cabinet lighting, wearable tech, or desk lamps. Its small size and direct XIAO integration allow for portable, programmable designs. Use it to build responsive lighting that reacts to sensors, sound, or timers for interactive installations.
5. How to interface the LED Driver Board for XIAO with Arduino code?
Use Arduino code with libraries like FastLED or NeoPixel to send control signals through the XIAO to the XIAO LED driver board. Define the data pin, LED count, and type in your sketch to enable full RGB or white-level control. Upload the code to create custom animations, brightness levels, or synchronized patterns across your LED strip.
6. How to choose between 5V and 12V LED strips for the XIAO LED Driver Board?
Use 5V LED strips for shorter runs and low-power applications like wearables or small displays, where voltage drop is minimal. Choose 12V LED strips for longer installations such as room lighting or signage, as they suffer less voltage drop over distance. The LED Driver Board for XIAO supports both, so select based on your project’s length, brightness, and power needs.
7. How to expand LED lighting projects using multiple XIAO LED Driver Boards?
Connect multiple LED Driver Boards for XIAO to separate XIAO boards or use I2C-enabled addressable setup
1. What is the LED Driver Board for XIAO used for?
The LED Driver Board for XIAO lets you control both 5V and 12V LED strips directly from your XIAO microcontroller, eliminating the need for external level shifting or power regulation. You can use it for RGB lighting, addressable LEDs, or ambient lighting projects. Its compact design makes it perfect for space-constrained LED lighting applications.
2. Can I use this driver board with NeoPixel or WS2812 LED strips?
Yes, this NeoPixel driver board for XIAO is fully compatible with WS2812 and similar addressable LED strips, providing clean signal delivery and stable power. You can drive smooth color transitions and dynamic lighting effects without signal degradation. It’s ideal for projects requiring precise control over individual LEDs.
3. Is the LED Driver Board compatible with WLED or smart lighting projects?
Absolutely, the XIAO-compatible LED controller works seamlessly with WLED firmware and other smart lighting platforms. You can integrate it into home automation systems for synchronized, network-controlled lighting. This makes it a powerful choice for DIY smart lighting and IoT-based visual feedback systems.
4. What voltage and current ratings does this LED driver board support?
The board supports 5V LED strips up to 3A and 12V LED strips up to 2A, offering flexible power options for various LED types. You can connect longer or denser strips while maintaining reliable operation. Its robust current handling ensures stable performance in continuous-use compact LED lighting applications.
