Laser Module

Regular price
Rs. 240
Sale price
Rs. 240
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • Laser Diode Module is a breadboard friendly, low cost having the wavelength of 650nm and operating voltage of 5V.
  • The laser head is composed of a light-emitting tube, condenser lens and adjustable copper sleeve and it is assembled when delivered.
  • The focal length of the lens is adjusted glued by strong glue stick, which can work directly after connecting to a 5v dc power supply.

Laser Module

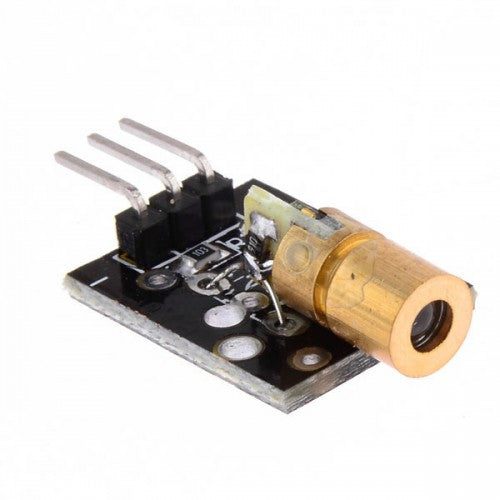

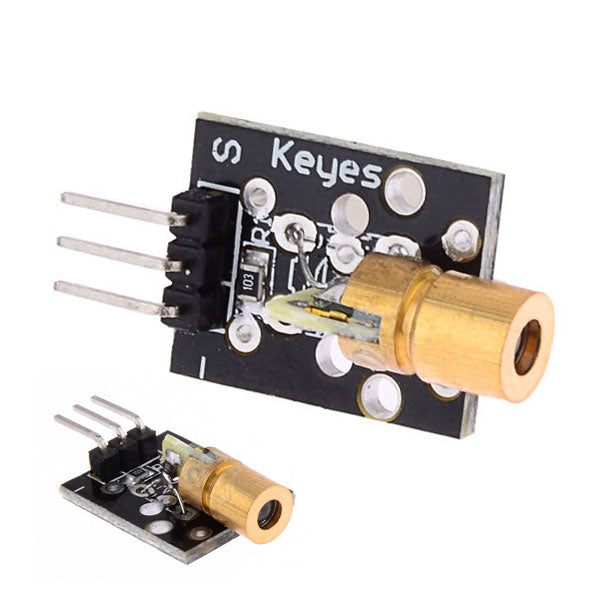

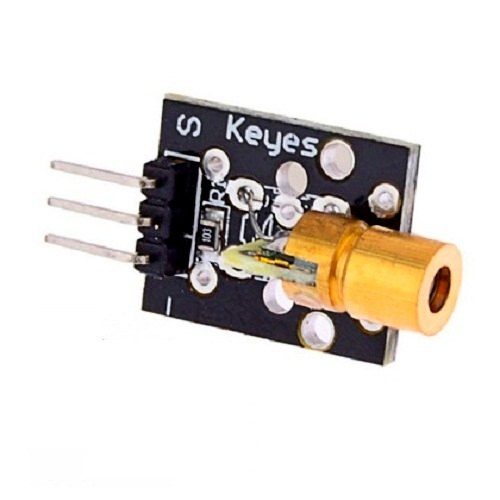

The Laser Module  is composed of a light-emitting tube, condenser lens, and adjustable copper sleeve and it is assembled when delivered, the focal length of the lens is adjusted glued by strong glue stick, which can work directly after connecting to a 5V DC power supply.

Pay attention to the laser cell to prevent from being burnt or battery explosion due to a short circuit when removing the battery.

PINOUT

  • 1 – GND
  • 2 – 5V
  • 3 – S (Control: HIGH = Laser on)

lasermodule_diag

Applications:

  • Laser test tools.
  • Concentricity positioning.
  • Medical equipment positioning.
  • Production of signal equipment.
  • Use for DIY or robots.
  • All kinds of level meters.
  • Laser projector.
  • Laser toys, etc.

Package Include:

  • 1 x Laser Module

Specifications

Voltage 3.0 V – 5 V
Driver APC circuit
Line length about 135 mm
Operating Current 40mA
Transmit power 58mW
Dimensions  3 x 2 x 1cms
Weight  5 grams
