- Supports NavIC (IRNSS L5) for enhanced accuracy in India and surrounding regions
- Multi-GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS) ensures reliable global coverage
- Dual embedded antennas (patch + chip) reduce the need for external components
- Fast time-to-first-fix with concurrent reception on L1 and L5 bands
- Built-in SBAS support (WAAS, EGNOS, MSAS, GAGAN) for improved positioning accuracy
- I2C and UART interfaces for easy integration with a wide range of microcontrollers
- Excellent anti-jamming performance with multi-tone interference canceller
- Compact design ideal for wearables, drones, smartphones, and IoT devices
L89HA Multi-GNSS Breakout Module for GPS, IRNSS, GLONASS, BeiDou, Galileo & QZSS - 7Semi

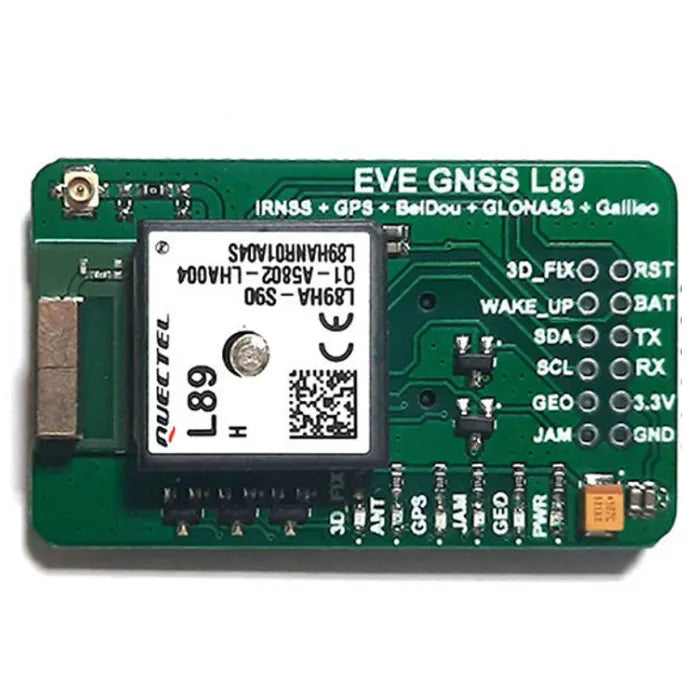

The L89HA Multi-GNSS Breakout Module is a compact and high-precision navigation solution based on the Quectel L89 module. It supports GPS, IRNSS, GLONASS, BeiDou, Galileo, and QZSS, enabling accurate and fast positioning with concurrent L1 and L5 band reception.

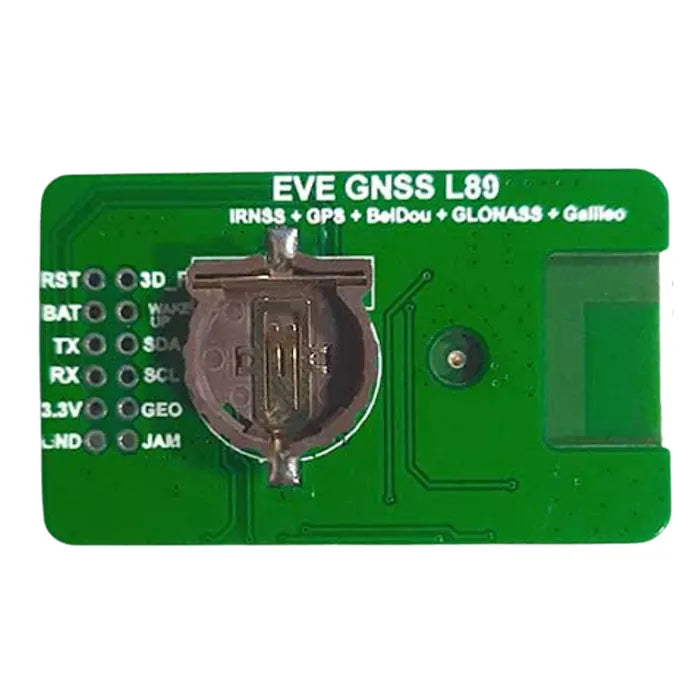

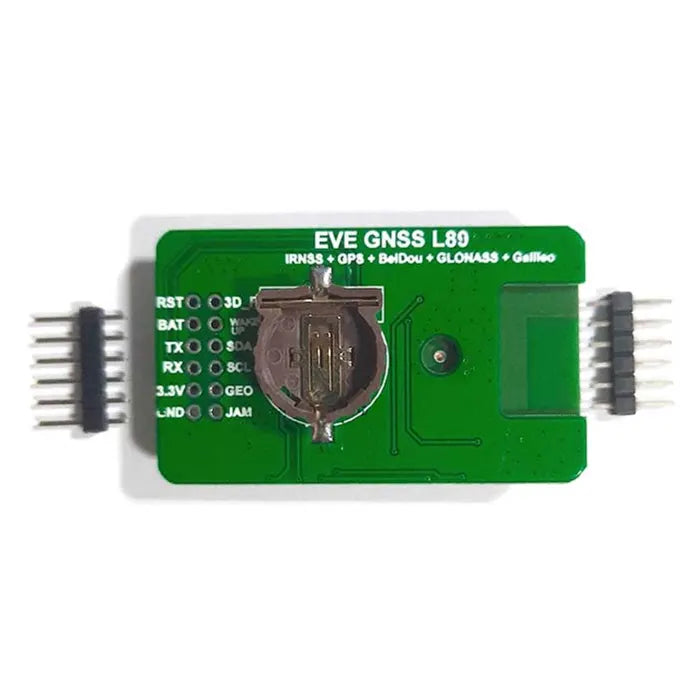

Powered by 3.3v, the L89 GNSS module offers I2C and UART interfaces for easy integration with various microcontrollers. It also features dual embedded antennas and a backup battery pin (BAT) for uninterrupted operation.
This L89 module is ideal for drones, wearables, smartphones, IoT devices, and any compact system requiring reliable GNSS tracking, geofencing, or timing. With high sensitivity and multi-constellation support, it ensures strong performance even in challenging environments.
L89 Breakout Dimensions
Features
-
Operates on a 3.3V power supply
-
Supports both I2C and UART communication interfaces
-
Compatible with IRNSS L5 band for enhanced regional accuracy
-
Built-in patch antenna and chip antenna for compact integration
-
Multi-GNSS support: GPS, IRNSS, GLONASS, BeiDou, Galileo, and QZSS
-
Supports DGPS and SBAS (WAAS, EGNOS, MSAS, GAGAN) for improved positioning accuracy
-
Integrated Low Noise Amplifiers (LNAs) for better signal sensitivity
- Excellent anti-jamming performance with multi-tone active interference cancellation
L89 Breakout Arduino Connection
How to Enable IRNSS (NavIC) on the L89 GNSS Module
Follow the steps below to enable IRNSS (NavIC) on the L89 module:
Connect Hardware
Use a USB to Serial converter to connect the L89 module to your PC.
Open QNavigator
Launch QNavigator software and open the serial port connected to the module.
Enter AT Command
To enable IRNSS, send the following AT command:
PSTMSETCONSTMASK,1024
Use an External Active Antenna
Ensure you're using an external active antenna and position it under an open sky for best reception.
Access Command Manual
For more details, download the L89 AT command manual from the resources section.
Package Includes

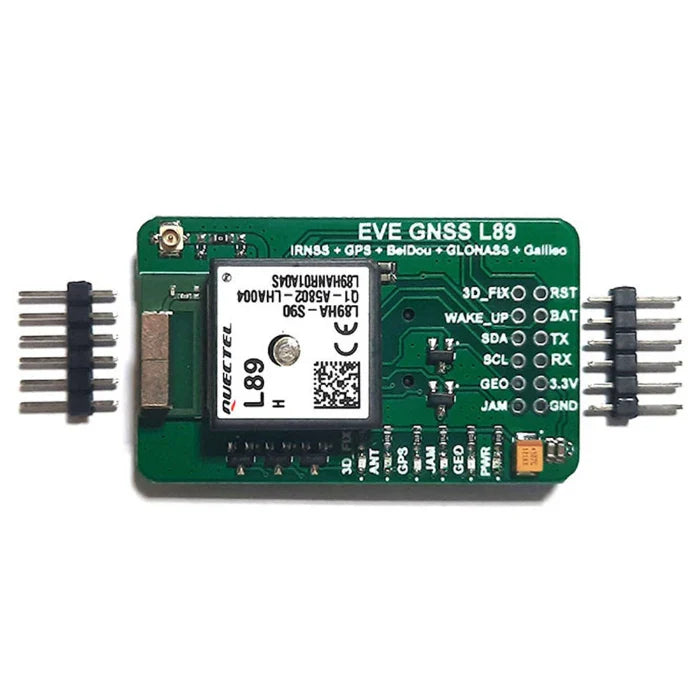

1 x 7Semi L89HA Multi-GNSS Breakout Module
Specifications
| Parameter | Specification |
|---|---|
| Receiving Bands | GPS L1 / Galileo E1 C/A: 1575.42 MHz GLONASS L1 C/A: 1602.5625 MHz IRNSS L5 C/A: 1176.45 MHz BeiDou B1 C/A: 1561.098 MHz |
| SBAS Support | WAAS, EGNOS, MSAS, GAGAN |
| Horizontal Position Accuracy | Autonomous: < 1.8 m CEP |
| Velocity Accuracy | Without Aid: < 0.1 m/s |
| Acceleration Accuracy | Without Aid: < 0.1 m/sĀ² |
| Timing Accuracy (1PPS) | 3.9 ns |
| Reacquisition Time | < 1.5 s |
| Dimensions (LxWxH) | 5 x 3 x 0.8 cm |
| Weight | 15 gm |
| Sensitivity | Acquisition: -147 dBm Tracking: -163 dBm Reacquisition: -156 dBm |
| Dynamic Performance | Maximum Altitude: 18,000 m Maximum Velocity: 515 m/s Maximum Acceleration: 4G |
