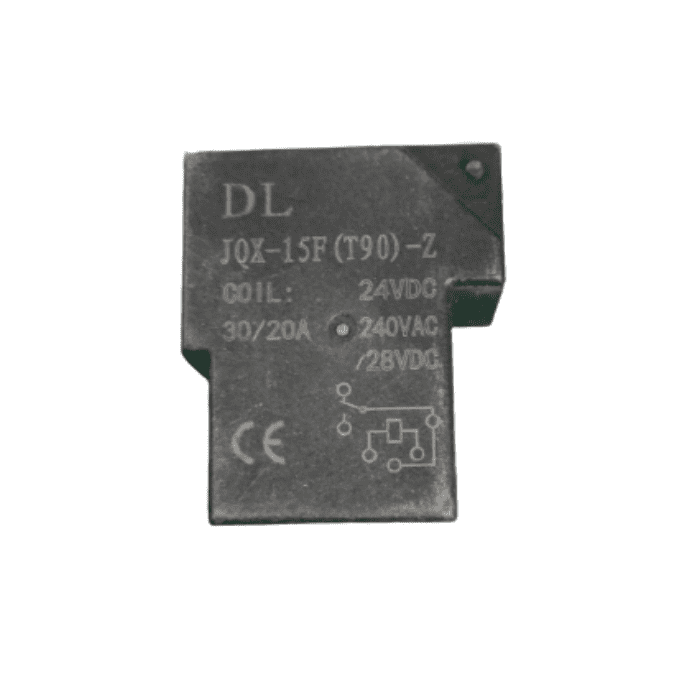

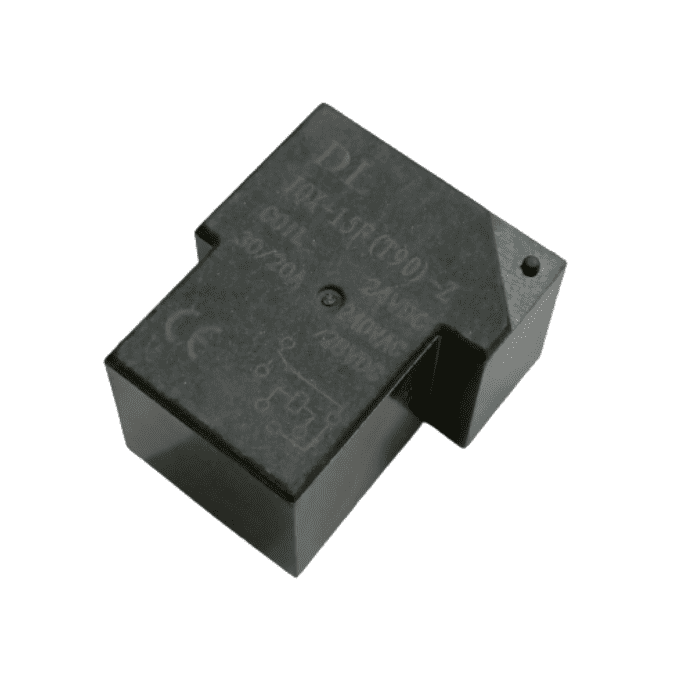

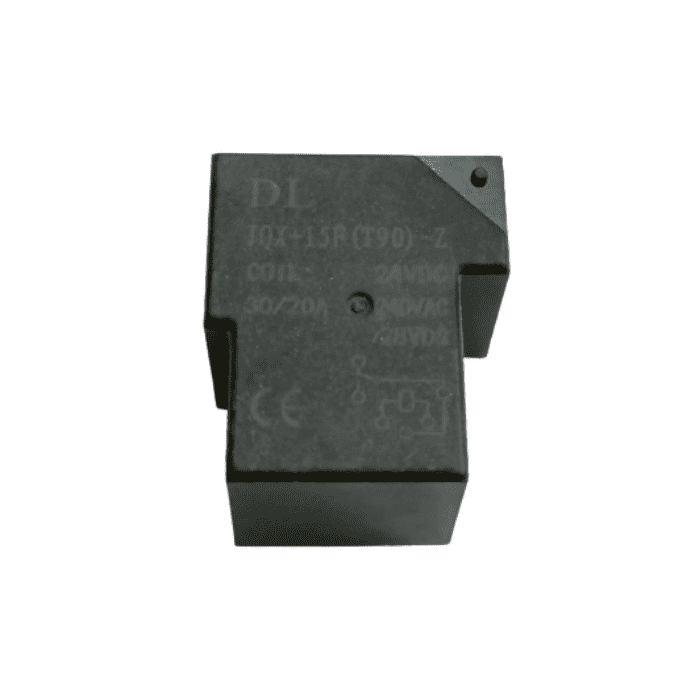

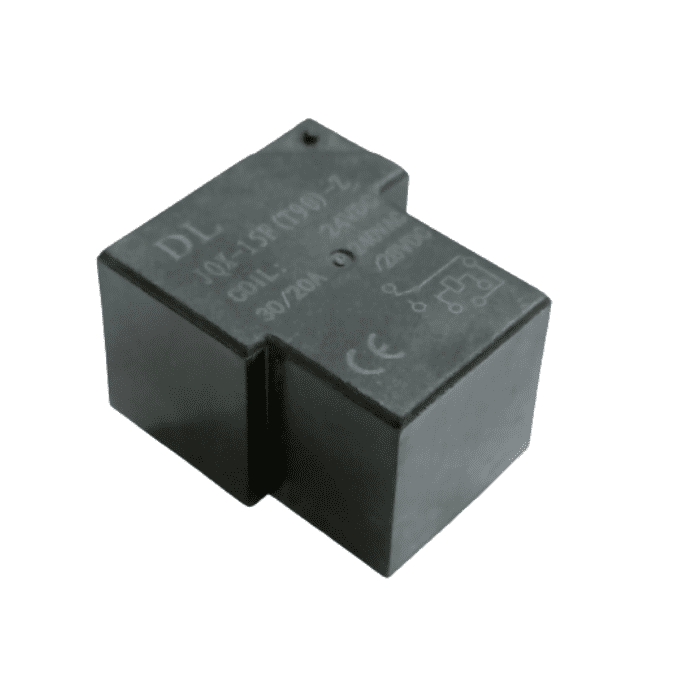

JQX-15F(T90) Coil Voltage DC 24V 6 Pin Power Relay

JQX-15F(T90) Coil Voltage DC 24V 6 Pin Power Relay

Regular price Rs. 74
Regular price Rs. 99 Sale price Rs. 74
Sale Sold out 25% off Best Price Guaranteed
You save Rs. 25
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Suitable for Control Solenoids, Motors, Bulbs, Lamp, Home Automation Projects, etc.
  • The relay plays the role of a protector or a circuit switch. It can protect your electric equipment very well.
  • It has an operating voltage of 24V DC and a max current capacity of 30A
  • This relay can be used to drive 30A devices

JQX-15F(T90) Coil Voltage DC 24V 6 Pin Power Relay

This is a JQX-15F (T90) 24VDC 6Pin 30A Power Relay. The relay is switched with the help of a small signal from a microcontroller like an Arduino. This relay can be used to drive 30A devices. It has an operating voltage of 24V DC and a max current capacity of 30A. This relay is of T90 type. It is an SPDT relay. It has 3 output terminals, NO, NC, and COM. It has two COM terminals.

APPLICATIONS:

  • Control Solenoids
  • Motors
  • Bulbs and Lamp
  • Home Automation Projects
  • Freewheeling diode to protect your microcontroller.

 Package includes:

  • 1 x JQX-15F(T90) Coil Voltage DC 24V 6 Pin Power Relay

Specifications:

Model

JQX-15F(T90)

NC Contact Rating

30A @ 240V AC / 28V DC

NO Contact Rating

20A @ 240V AC / 28V DC

Number Of Pins

6

Supply Voltage

24VDC

Weight

20g
