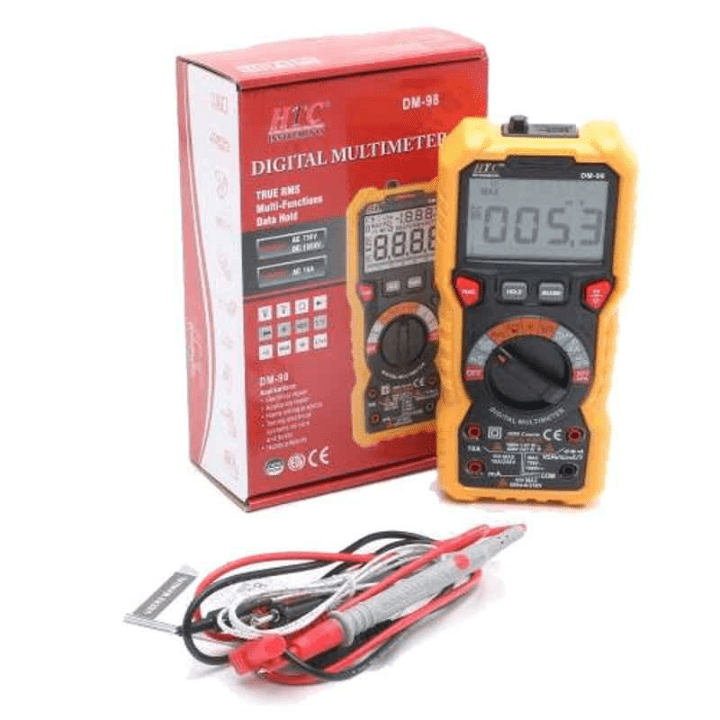

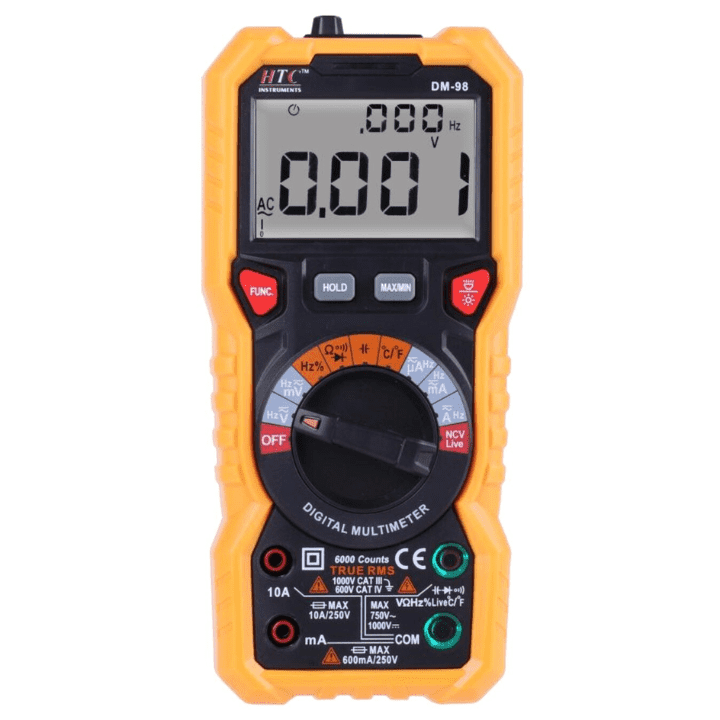

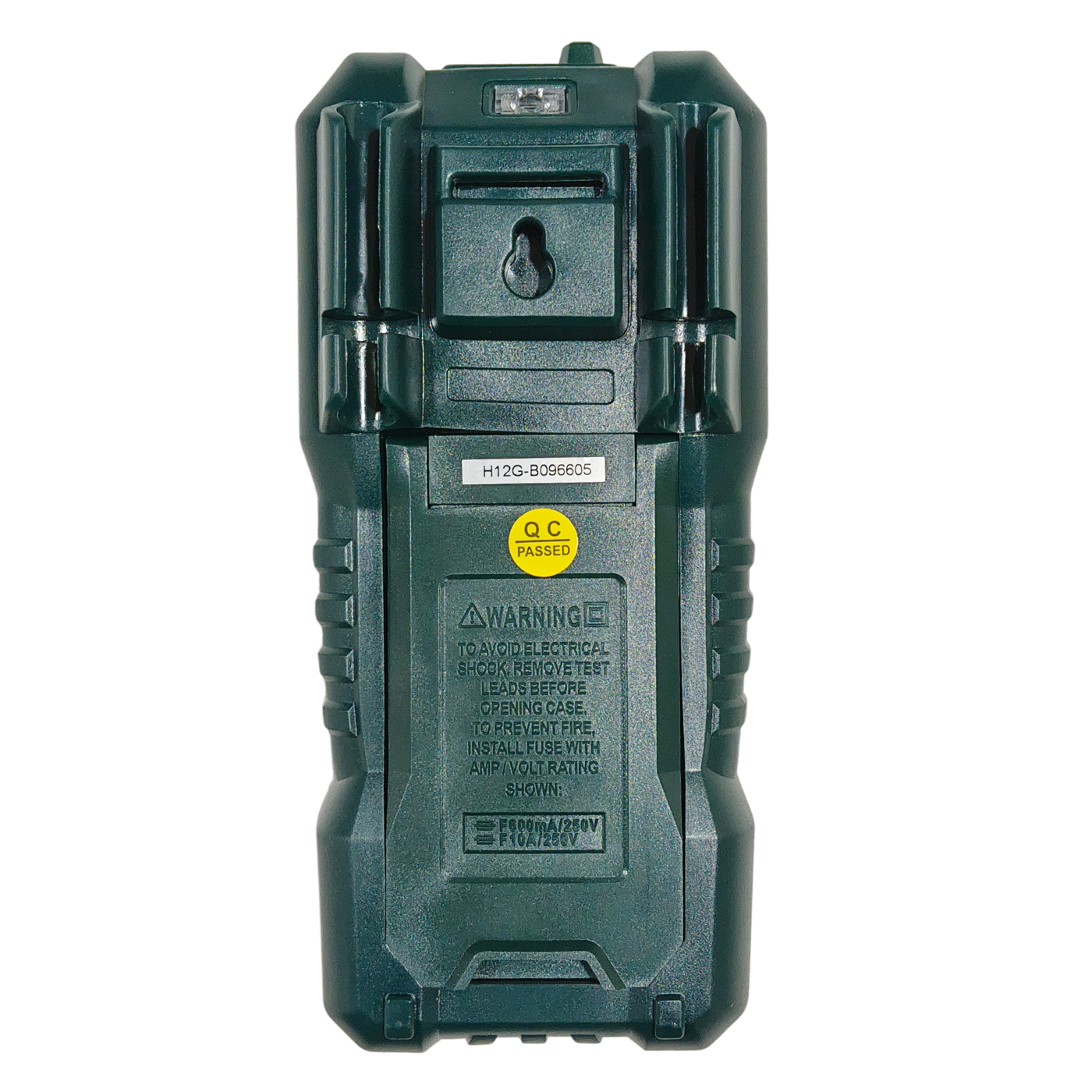

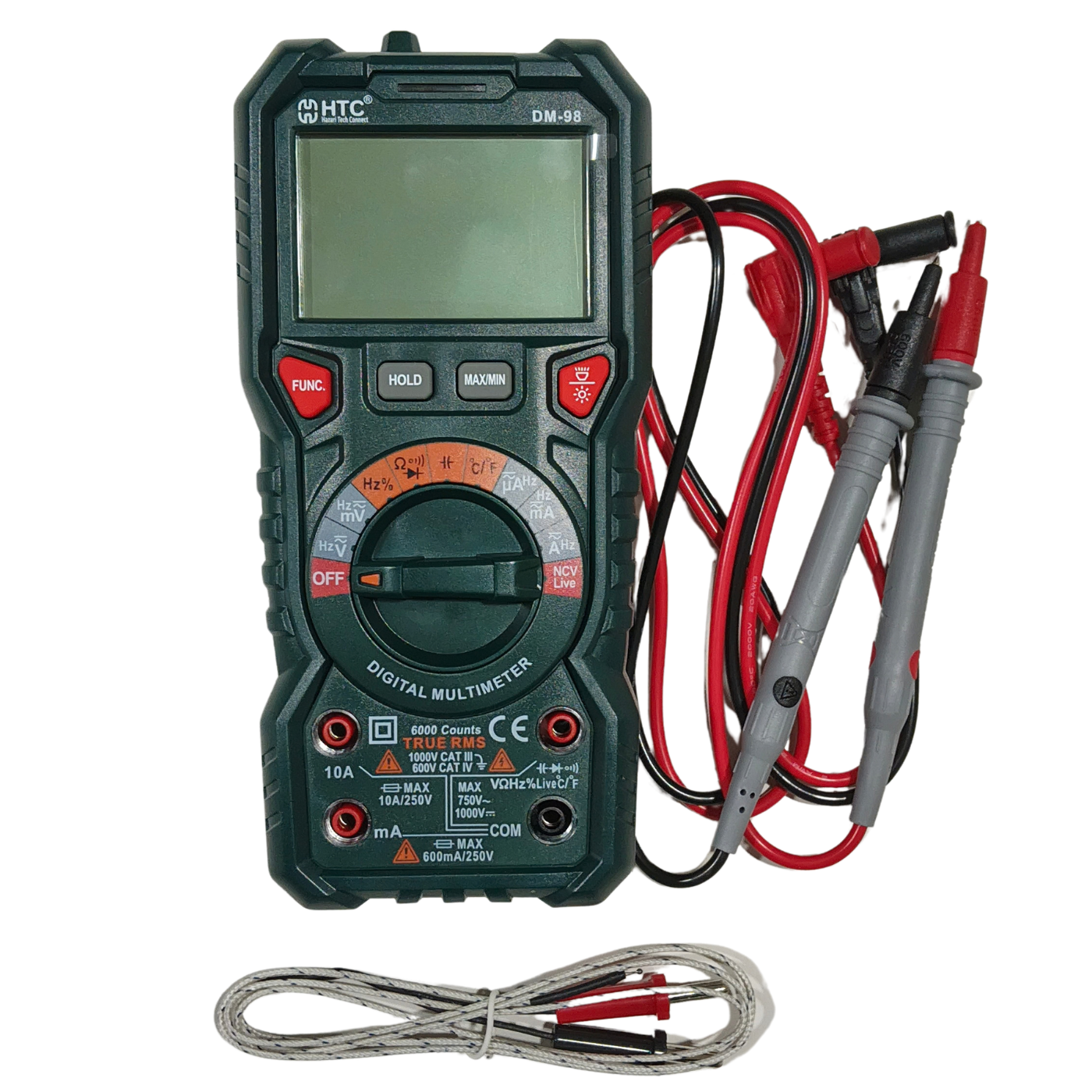

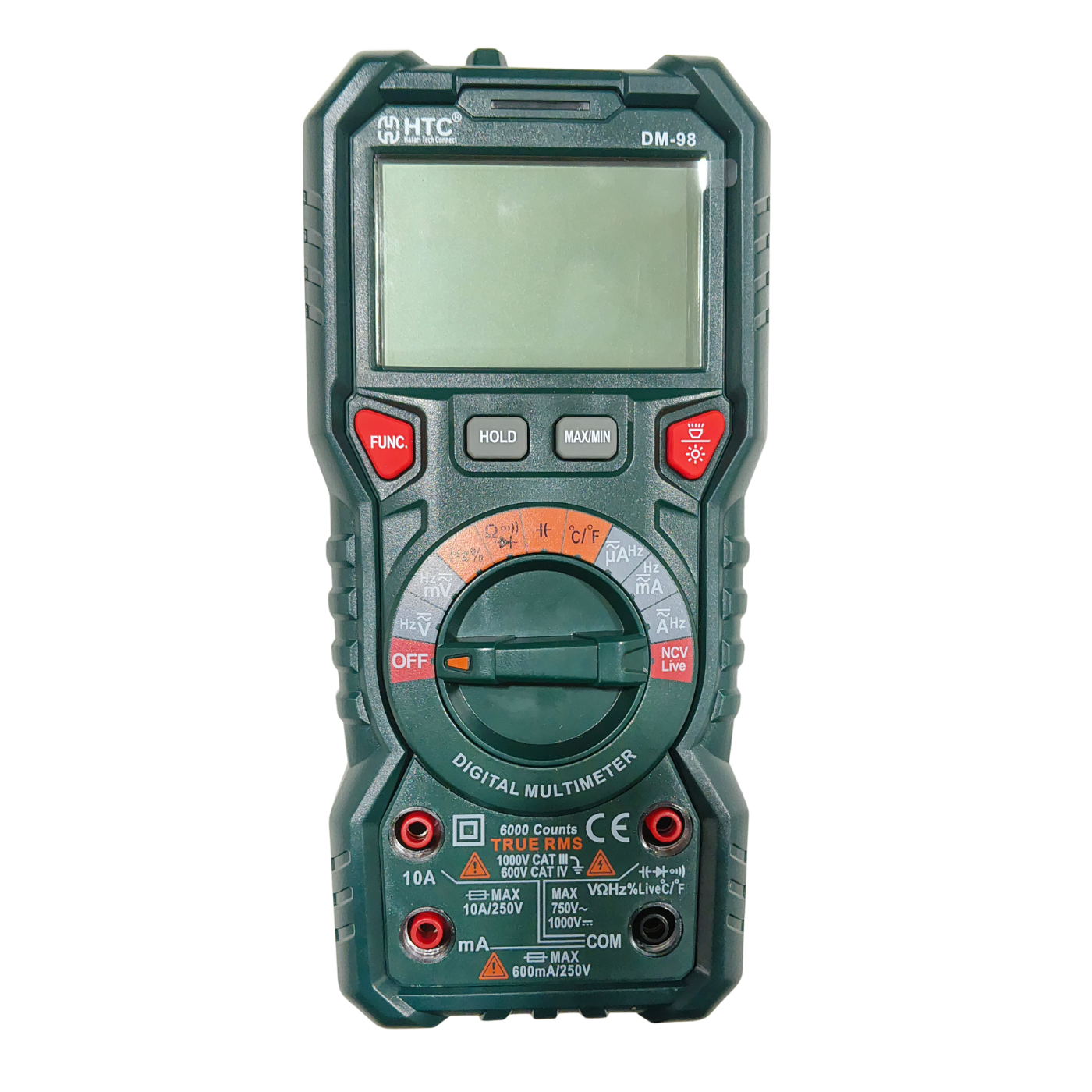

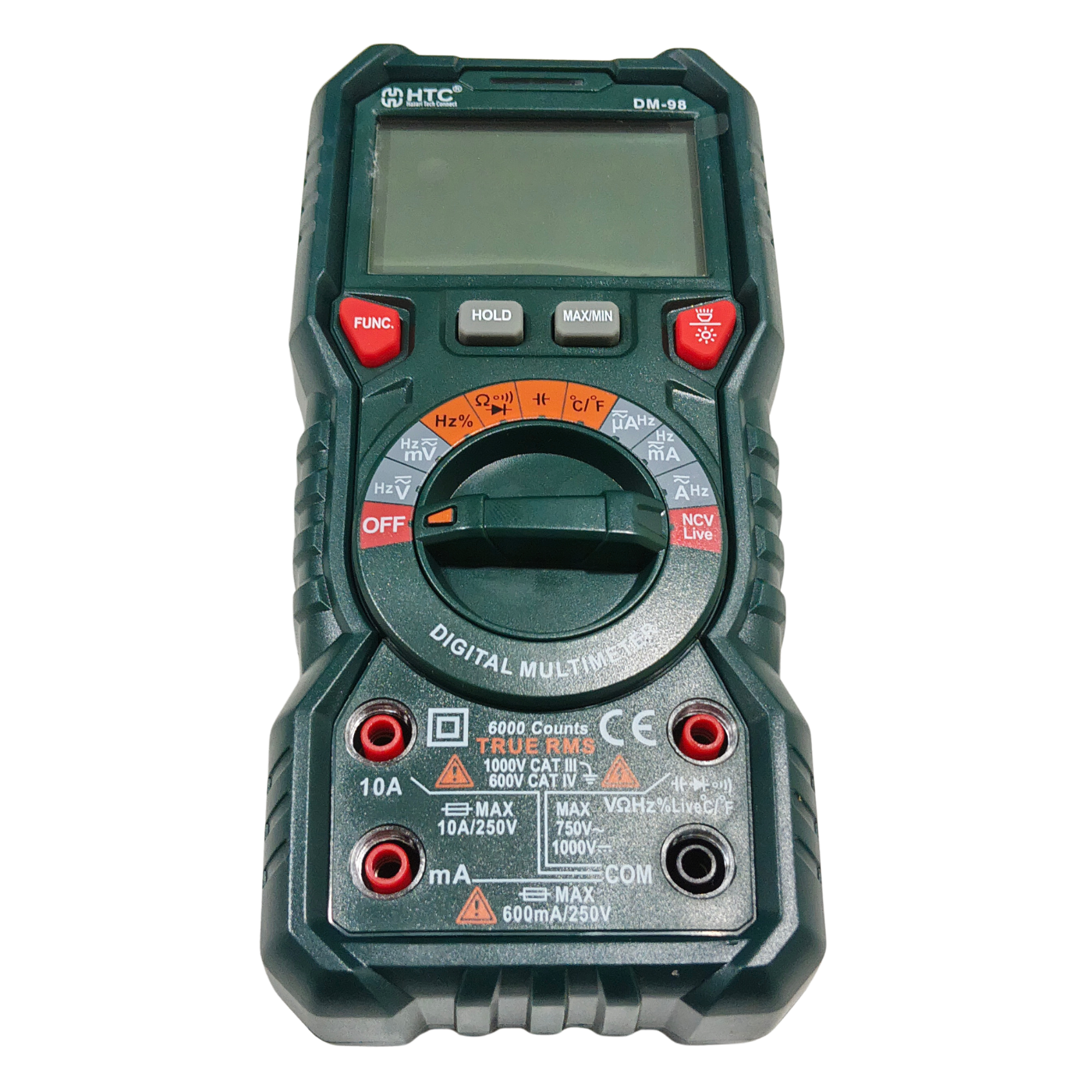

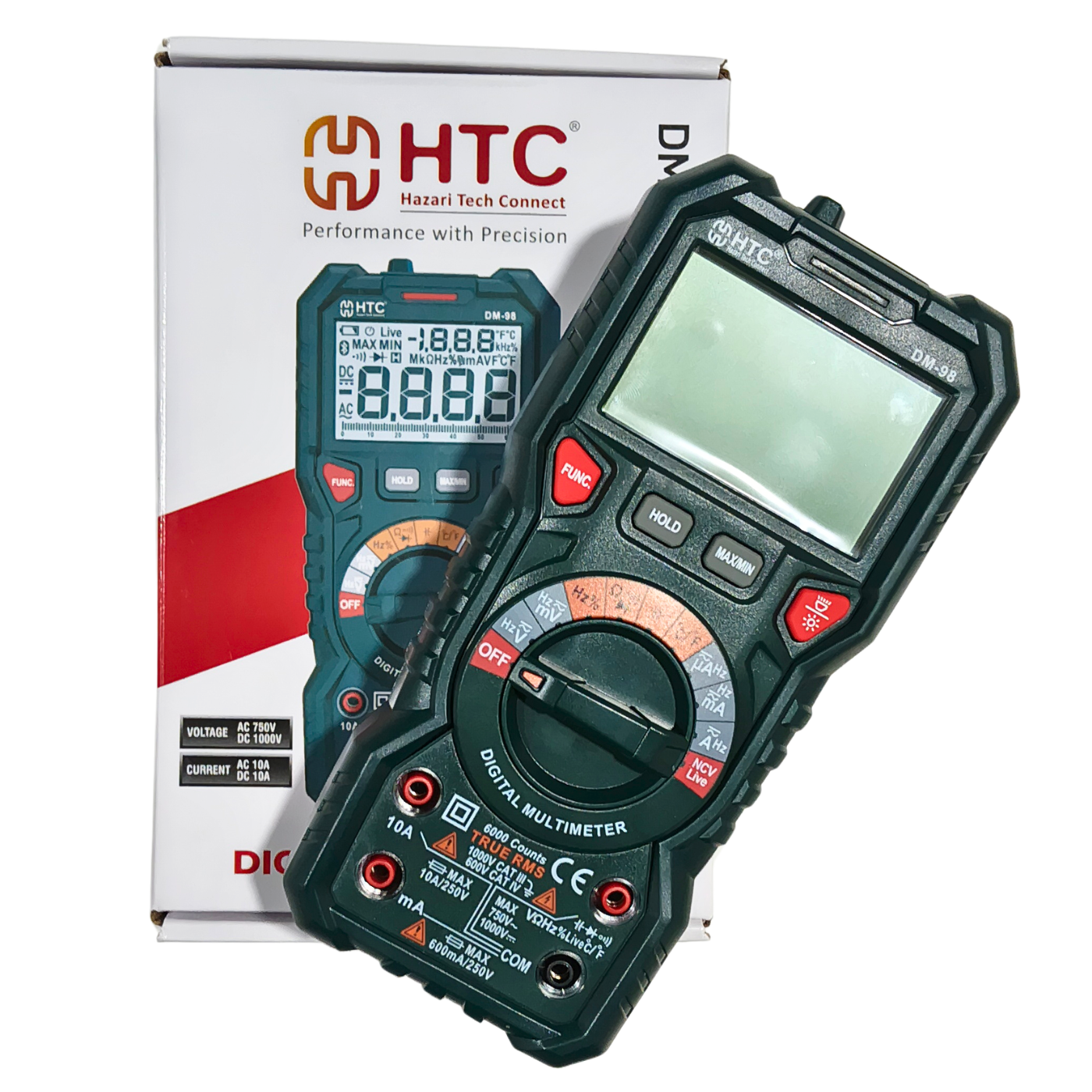

HTC DM-98 Digital Multimeter
Couldn't load pickup availability
HTC DM 6000 counts multimeter is a tool that is used to measure two or more electrical values. It offers an automatic output display and ensures high accuracy.
The measurement values are displayed on the LCD of the device. It contains LED indicators and an audible continuity set. The resistance of the tool is 600 - 60M ohm.
It has been provided with features such as data freeze, auto range, and backlight. EA6000 counts multimeter's unique quality is Dual LCD with bar graph, NCV, live test, double color backlight, try RMS, etc. Product Attributes: Frequency -10 Hz Weight - 249 g.
AC voltage range - 60 V DC voltage range - 600 MV. Color- Yellow Height - 188 mm Width- 88 mm Number of counts - 6000 Size of the display - 3 5/6
check out : HTC DM-91 Digital Multimeter
| Brand | HTC |
| DC Voltage Range |
600 mV-1000 V |
| Counts |
6000 |
| Battery Voltage |
1.5 V |
| Indication |
Input Jack LED |
| AC Current Accuracy |
±1.5% of Reading +3 Digits |
| AC Current Range |
600 ?A-10 Amp |
| AC Voltage Resolution |
0.1-1 V |
| Package Contents |
Test Lead & Manual |
| Resistance Accuracy |
±(1.0% of Reading +3 Digits) ±(1.5% of Reading +3 Digits) |
| Number of Batteries |
2 |
| Capacitance Accuracy |
±(4.0% of Reading +5 Digits) ±(5.0% of Reading +5 Digits) |
| Capacitance Range |
10 nF-1000 ?F |
| AC Voltage Range |
600 mV-750 V |
| DC Voltage Accuracy |
±(0.5% of Reading +3 Digits) |
| Display Digit |
3½ |
| AC Voltage Accuracy |
±(0.8% of Reading +5 Digits) |
| Resistance Range |
600 ?-60 M? |
| Capacitance Resolution |
0.001 nF-0.01 mF |
| Temperature Accuracy |
±5% of Reading +3 Digits |
| DC Voltage Resolution |
0.1 mV-1 V |
| Dimensions |
188x88x58 mm |
| Resistance Resolution |
0.1-0.01 M? |
| Model No |
DM-98 |
| DC Current Resolution |
0.1 ?A-0.01 A |
| Battery Type |
AAA |
| Type |
Digital |
| DC Current Accuracy |
±(1.2% of Reading +3 Digits) |
| DC Current Range |
600 ?A-10 Amp |
| Temperature Range |
-20 to 0 deg C |
| AC Current Resolution |
0.1 ?A-0.01 Amp |
| Display |
Dual LCD with Bargraph |
| Temperature Resolution |
1 deg C |
| Common/Generic Name |
Digital Multimeter |
| Dimensions LxWxH |
188x88x58 mm |
| Weight |
217 g |
