HTC DM-91 Digital Multimeter
HTC DM-91 Digital Multimeter
Low stock: 5 left
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- No Power off under natural operation.
- Data Hold, Max & Min Value Hold.
- Large LCD Display with Auto/Manual Range.
- Capacitance, Frequency / Duty Cycle, Temperature and Transistor Test.
| This product is not available for store pickup. Apologies for the inconvenience caused |

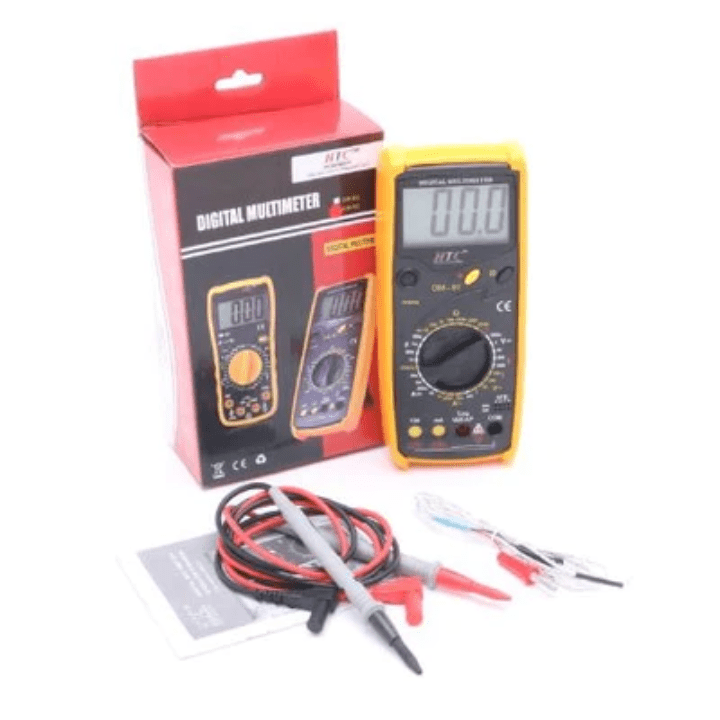

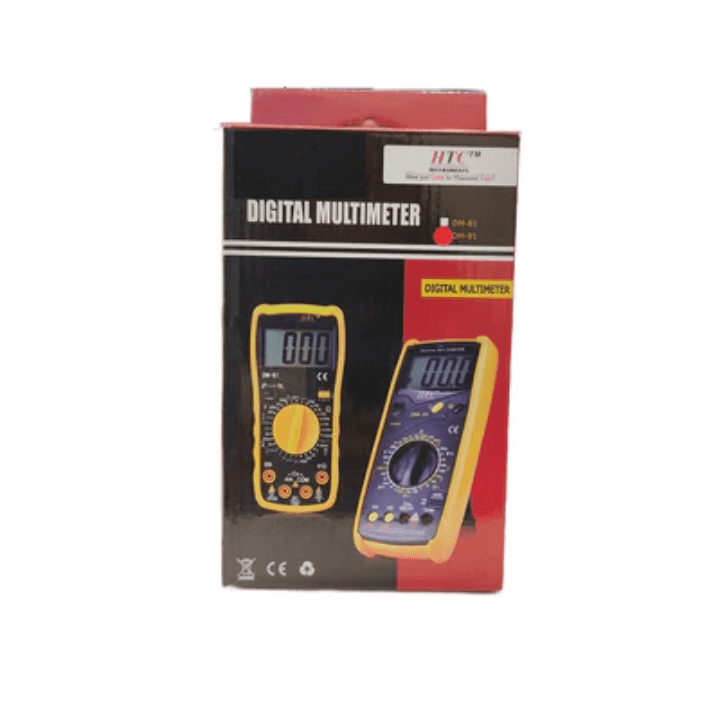

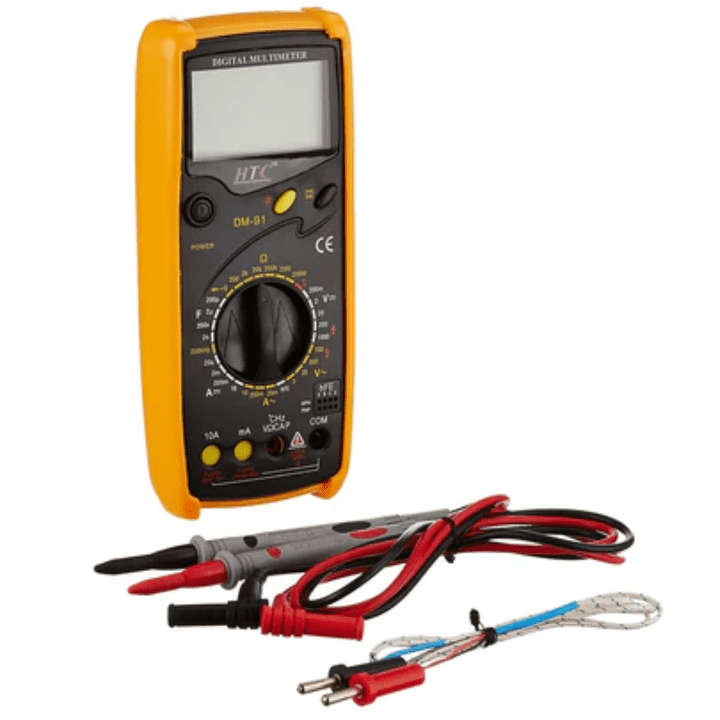

HTC DM-91 Digital Multimeter
If you are looking for an extremely versatile multimeter, HTC produces a large variety of multi-functional instruments. The HTC DM 91 can test current, voltage, resistance, capacitance, transistor hFE, frequency, temperature, and diode. This 700V LCD display terminal interlock digital multimeter has a continuity buzzer, anti-shock protection, and auto power-off after 30 minutes. The HTC digital multimeter has a backlight LCD and indicates low battery status. The HTC DM 91 ships with test leads and a manual. It has a terminal shutter interlock mechanism. Moreover, the instrument provides protection in all ranges of current/voltage.
check out : HTC DM-86 Digital Multimeter
Package Includes:
- 1 x HTC DM-91 Digital Multimeter
Specifications:
| Brand | HTC | |
| Frequency (Hz) |
0.1Hz-30MHz |
|
| Counts |
4000 |
|
| AC Current Accuracy |
±(1.5% + 5digit) |
|
| Low Battery Display |
Yes |
|
| Includes |
Test Leads, Holster, Manual & TP 01 Temperature Probe Bead type |
|
| Resistance Accuracy |
±(0.8% + 2digit) |
|
| Capacitance Accuracy |
±(35% rdg + 8 digit) |
|
| DC Voltage Accuracy |
±(0.5% + 4digit) |
|
| DC Voltage Range (Volts) |
0.1mV-1000V |
|
| Item Code |
DM-97 |
|
| Items in Pack |
1 Piece |
|
| AC Voltage Accuracy |
±(0.8%+6) |
|
| Warranty |
12 months manufacturer warranty |
|
| Operating Temperature Range |
40 to 1000 deg C |
|
| Dimensions |
170x93x35 mm |
|
| Temperature Range © |
-40°C-1000°C |
|
| Frequency Accuracy |
±(0.5% + 4 dgt) |
|
| Resistance Range (Ohm) |
0.1Ω-40MΩ |
|
| Type |
Digital |
|
| DC Current Range (Amp) |
0.1µA-20A |
|
| Measurement Speed |
3 times/sec |
|
| DC Current Accuracy |
±(1.0% + 5digit) |
|
| Capacitance |
10pF to 200uF |
|
| AC Current Range (Amp) |
0.1µA-20A |
|
| AC Voltage Range (Volts) |
0.1mV-750V |
|
| Power Input |
F3V AAA |
|
| Display |
3¾ Digits LCD Display |
|
| Dimensions LxWxH |
170x93x35 mm |
|
| Weight |
|
