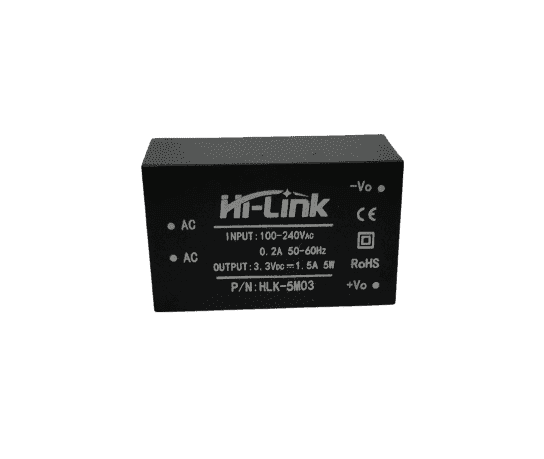

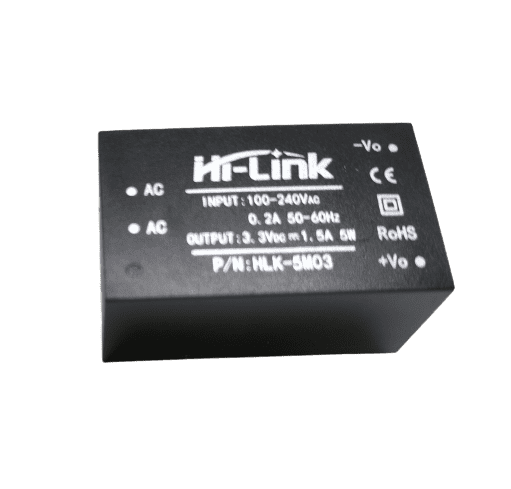

Hi-Link 3.3V 1.5A Power Module

Hi-Link 3.3V 1.5A Power Module

Low stock: 9 left

Regular price Rs. 251
Regular price Rs. 313 Sale price Rs. 251
Sale Sold out 20% off Best Price Guaranteed
You save Rs. 62 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 13 hours and 51 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • This is Hi-Link 3.3V 1.5A Power Module
  • Global universal input voltage range of 90~265Vac
  • Low ripple and low noise
  • High output short circuit and over-current protection with self-recovery
  • High efficiency and high power density
  • High reliability, long life design, continuous working time is greater than 100,000 hours
  • Meets UL and CE requirements, designed to meet EMC and safety testing requirements, with high-quality environmentally friendly waterproof plastic potting to meet IP65 standards.
Trust Badge 1 Trust Badge 2 Trust Badge 3

Hi-Link 3.3V 1.5A Power Module

The 5W ultra-small series module power supply is a small-volume, high-efficiency AC -DC power module supply designed by Shenzhen Hi-Link Electronics Co., Ltd. It has the advantages of global input voltage range, low-temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. It has been widely used in smart homes, automation control, communications equipment, instrumentation, and other industries.

Features:

  • Global universal input voltage (90~265Vac)
  • Low ripple, low noise
  • High output short circuit and over-current protection and self-recovery
  • High efficiency, high power density
  • Input and output isolation voltage 3000Vac
  • 100% full load aging and testing
  • Meet UL, CE requirements; product design to meet EMC and safety testing requirements
  • Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water, and dust to meet IP65 standards

Environmental Conditions:

  • Technical indicators: Single bit
  • Working temperature: – 20-60 +degree
  • Storage temperature:  -40-+80 Degree Celsius
  • Relative humidity: 5-95%
  • The cooling way: Natural cooling
  • The atmospheric pressure: 80-106Kpa
  • The altitude: 2000M or less.

Package Includes:

1 x Hi-Link 3.3V 1.5A Power Module


      Specifications:


      Brand  Hi-Link
      Rated Input Voltage 100-240 VAC
      Input Voltage Range 90-264 VAC
      Maximum Input Current 0.2 A
      Input Inrush Current < = 10A
      External Fuse Recommended 1A 250Vac or 10 Ohm wire-wound resistance (Slow blow)
      Long-term Reliability MTBF> = 100, 000 h
      Working Temperature -25 ~ 60 C
      Storage Temperature -40 ~ 80 C
      Dimensions 80x50x30mm
      Weight 60gm
