ESP8266 Wroom Downloader Burning Fixture Tool Programming Board
ESP8266 Wroom Downloader Burning Fixture Tool Programming Board
Regular price
Rs. 624
Regular price
Rs. 699
Sale price
Rs. 624
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 8 hours and 59 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Suitable for development or batch production.
- Compatible for ESP8266 Series Wi-Fi Modules.
- CP2104 UART Bridge Controller.
- AMS1173.3V Chip for powering from USB.
- Support one-click firmware download function.
- There are power indicator light, burning indicator light, serial communication indicator light.

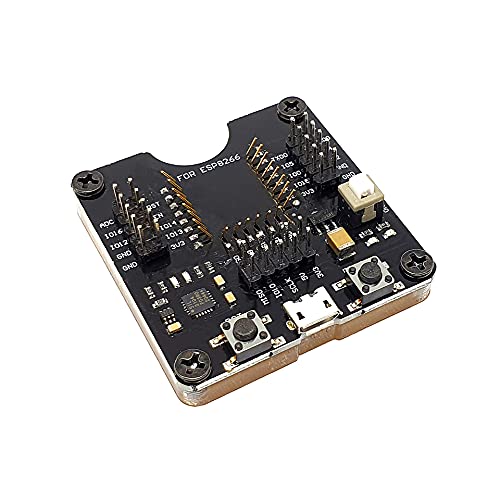

ESP8266 Wroom Burning Fixture Tool Downloader
The ESP8266 development fixture board can be used to program ESP8266 chips for development and small-batch production. The development board comprises fixtures for the ESP32 modules with an inbuilt CP2104 USB-TTL chip and an AMS1117 3.3 version regulator to drive and program the ESP module through USB.
The ESP8266 Wroom Downloader Burning Fixture Tool also has GPIO headers which can be used to drive peripherals directly from the development fixture board. It is a Downloader for ESP-WROOM-32 ESP-32 WIFI Wireless Module. It has output all GPIO ports for user debugging.

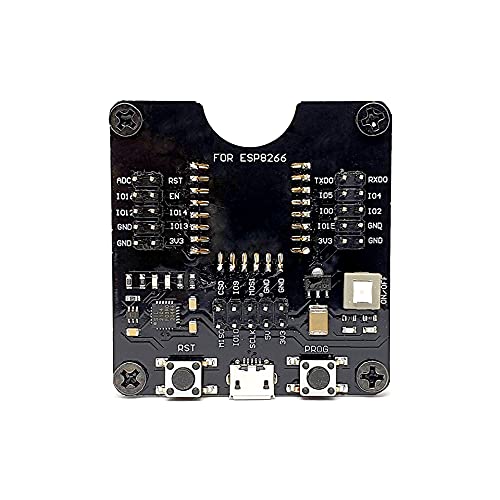

Pinout:
Also check the ESP32-WROVER Development Fixture Board.
Package Includes:
- 1 x ESP8266 Wroom Downloader
Specifications:
| Model | ESP8266 |
| Controller Chip | CP2104 UART to UART Bridge Controller |
| Interface | USB |

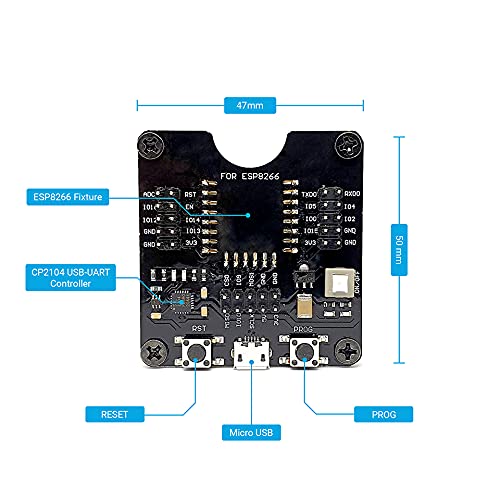

| Dimensions(LxWxD) | 47 x 50 x 5mm |
| Weight | 50gm |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1.ESP8266 Wroom Downloader?
- The ESP8266 Wroom Downloader is an official firmware download tool developed by Espressif for the ESP8266 module. It allows users to download multiple binaries to the SPI Flash of the ESP8266 mother board (ESP-LAUNCHER or ESP-WROOM-02U) at the same time according to the actual compilation mode and flash size.
2.How do I use the ESP8266 Wroom Downloader?
- To use the ESP8266 Wroom Downloader, press and hold the Reset button and then press and hold the Flash button. Release the Reset button first and then release the Flash button. Next, click the START button in the flash download tool GUI window. The flash download tool should check the ESP8266 in your setup and produce a report similar to the pictures shown in the guide.
3.What other software is compatible with the ESP8266 Wroom Downloader?
- The ESP8266 Wroom Downloader is compatible with lots of software such as Arduino IDE, ESP8266 Flasher, and Lexin FLASH_DOWNLOAD_TOOLS. It is also based on the USB-UART CP2104 which is compatible with all platforms. Onboard with the ESP8266 automatic download circuit, it is very convenient for users to download ESP-01/01S program, upgrade firmware, serial debugging and more.
