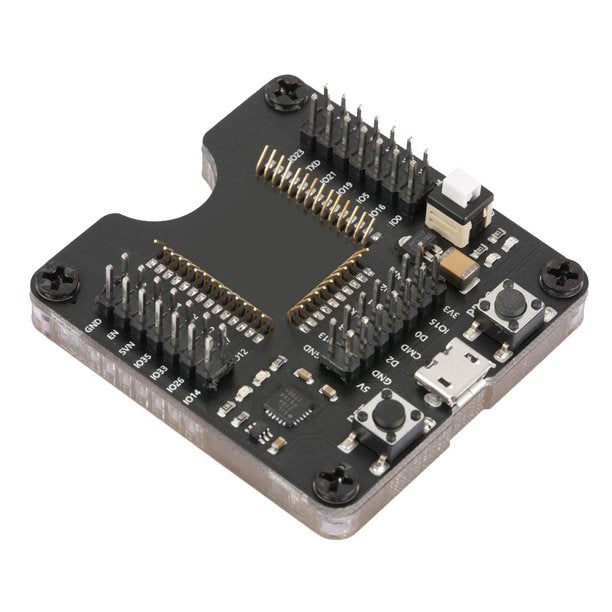

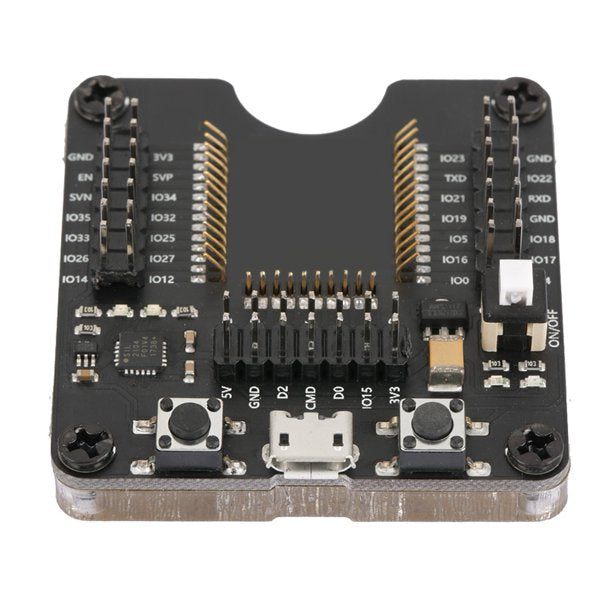

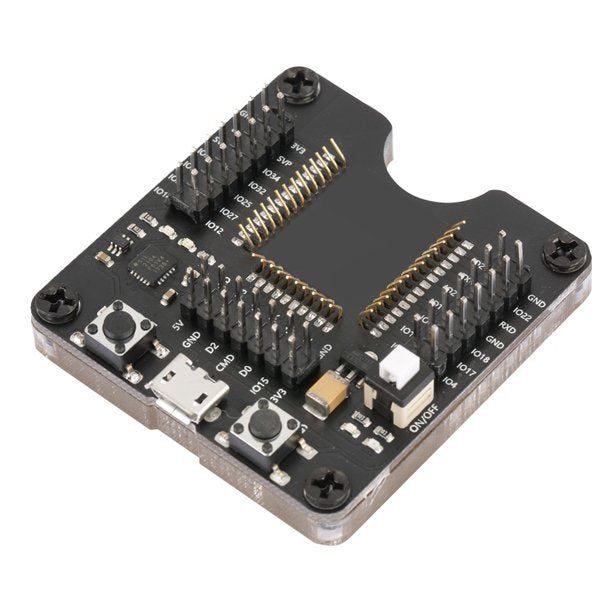

ESP32 Wroom Programming Jig
ESP32 Wroom Programming Jig
Regular price
Rs. 638
Regular price
Rs. 762
Sale price
Rs. 638
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 9 hours and 7 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- ESP WROOM 32 chip testing/firmware burning tool.
- This board consists of break out for ESP32 pins.
- Convert your ESP32 chip into an easy to use development board by simply plugging in your ESP 32 chip for testing and programming.
- Eliminates the need of soldering wires to ESP32 chip directly.
- Highly recommend for bulk testing and programming.
ESP32 Wroom Programming Jig
This module is suitable for testing or burning firmware to the ESP WROOM 32 chips. All IO ports have LEDs which enables this module to act as a minimum system board to test all GPIO pins.
It does support a one-click firmware download function. It has a power indicator light, burning indicator light, and, serial port communication indicator light. IT lead-out all IO ports, which can be used as the smallest system development board or a fixture for small-batch programming
Check out our entire range of IoT & Wireless Devices

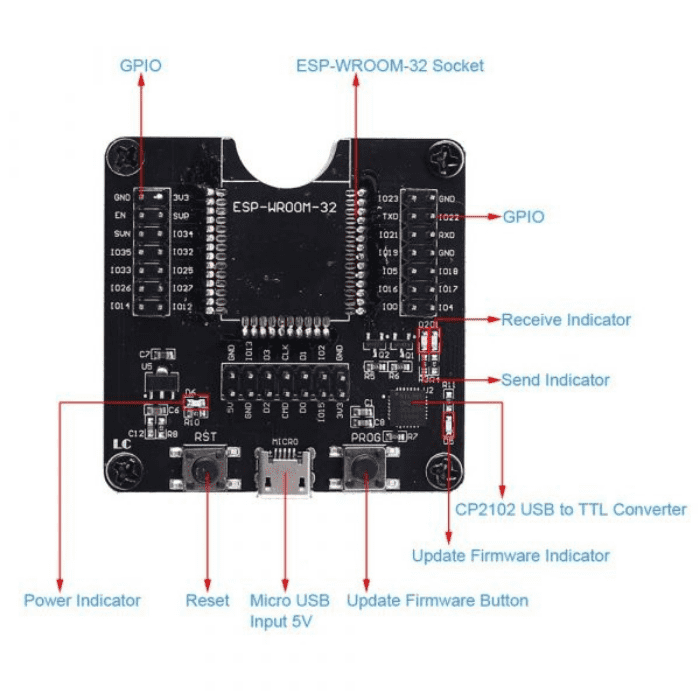

ESP32 Wroom Programming Jig Pinout:
Pinout of ESP32 Wroom Programming Jig
Application:
- Burning Fixture Tool
Package Includes:
- 1 x ESP32 Wroom Programming Jig
Specifications:
| Type | Voltage Regulator |
| Application | Burning Fixture Tool |
| Dimensions | 5 x 4 x 3cms |
| Weight | 25 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
ESP32-WROVER Development Fixture Board
Regular price
Rs. 651
Regular price
Rs. 869
Sale price
Rs. 651
Unit price
per
Incl. GST (No Hidden Charges)
Sale
ESP32 (38 Pin) WiFi + Bluetooth NodeMCU-32 Development Board
Regular price
Rs. 357
Regular price
Rs. 519
Sale price
Rs. 357
Unit price
per
Incl. GST (No Hidden Charges)
Sale
ESP32 MH-ET Live Module
Regular price
Rs. 760
Regular price
Rs. 919
Sale price
Rs. 760
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is Wroom ESP32?
- The ESP32-WROOM-32 is a powerful, generic Wi-Fi + Bluetooth + Bluetooth LE MCU module designed for a wide range of applications, from low-power sensor networks to the most demanding tasks like voice encoding, and music streaming, and MP3 decoding.
2. What is a ESP32 Wroom Programming Jig?
- The ESP32 Wroom Programming Jig is used to test or burn firmware to the ESP WROOM 32 chips. All IO ports have LEDs, allowing this module to function as a minimum system board for testing all GPIO pins.
3. What are the features of the ESP32 Wroom Programming Jig?
- The ESP32 Wroom Programming Jig does support a one-click firmware download function. It has three indicator lights: one for power, one for burning, and one for serial port communication. It leads out all IO ports, allowing it to function as the smallest system development board or a fixture for small-batch programming.
