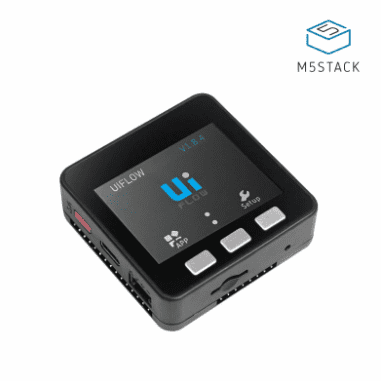

M5Stack BASIC Kit, like its namesake, is a starter kit among the M5Stack development kit series. It’s a modular, stackable, scalable, and portable device that is powered with an ESP-32 core, which makes it open-source, low cost, full-function, and easy for developers to handle new product development on all stages including circuit design, PCB design, software, mold design, and production. This Basic Kit provides a friendly price and full-featured resources which makes it a good starter kit for you to explore IoT.
If you want to explore the fastest way of IoT prototyping, the M5Stack development board is the perfect solution. Not like others, the M5Stack development board is highly efficient, covered with industrial-grade case and ESP32-based development board. It integrates with Wi-Fi & Bluetooth modules and contains a dual-core and 16MB of SPI Flash. Together with 30+ M5Stack stackable modules, 40+ extendable units, and different levels of program language, you can create and verify your IoT product in a very short time.
Supportive development platforms and programming languages: Arduino, Blockly language with UIFlow, Micropython. Regardless of what level of programming skill you have, M5Stack would guide you in every step of the way to realize your idea as well as to the final productization. e If you ever played with ESP8266, you would realize that ESP32 is a perfect upgrade out of ESP8266. In comparison, ESP32 has more GPIOs, more analog inputs, and two analog outputs, multiple extra peripherals( like a spare UART ). Official developing platform ESP-IDF has transplanted with FreeRTOS. With dual-core and real-time OS, you can get more organized code and a much high-speed processor.

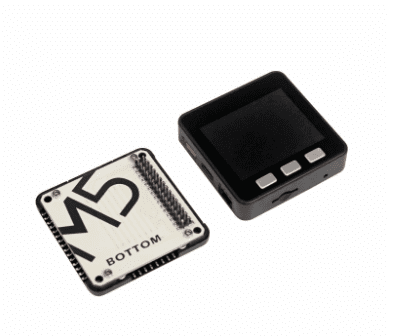

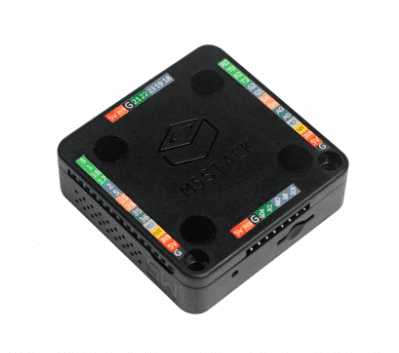

M5Stack Basic is consists of two separable parts. The upside part has all kinds of processors, chips, and some other slot components. The bottom part has a lithium battery, M-BUS socket, and extendable pins on both sides.
Power on: Click the red power button on the left
Power off: Quickly double-click the red power button on the left
Note: By default, when USB is powered, it cannot be shut down

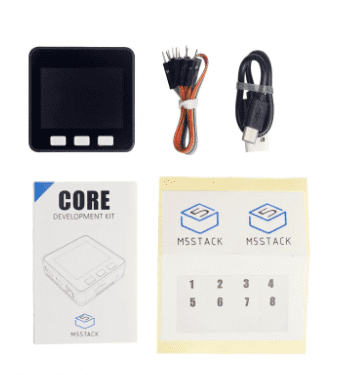

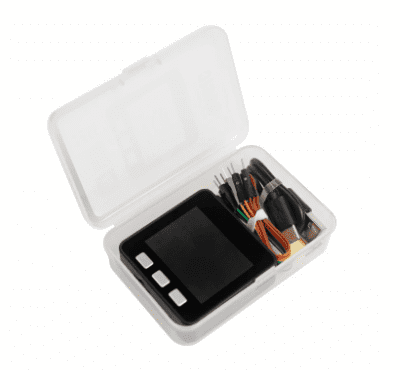

1x BASIC
10x Dupont
1x Type-C USB(20cm)
1x User Manual
1x Sticker
| ESP32 | 240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual-mode Bluetooth |
| Flash Memory | 16MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| Core Bottom Port | PIN (G1,G2,G3,G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36) |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit |
| Button | Custom button x 3 |
| Speaker | 1W-0928 |
| Battery | 110mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |
| Operating Temperature | 0°C to 60°C |
| Dimensions |
54 x 54 x 18mm |
| Weight | 93gm |
