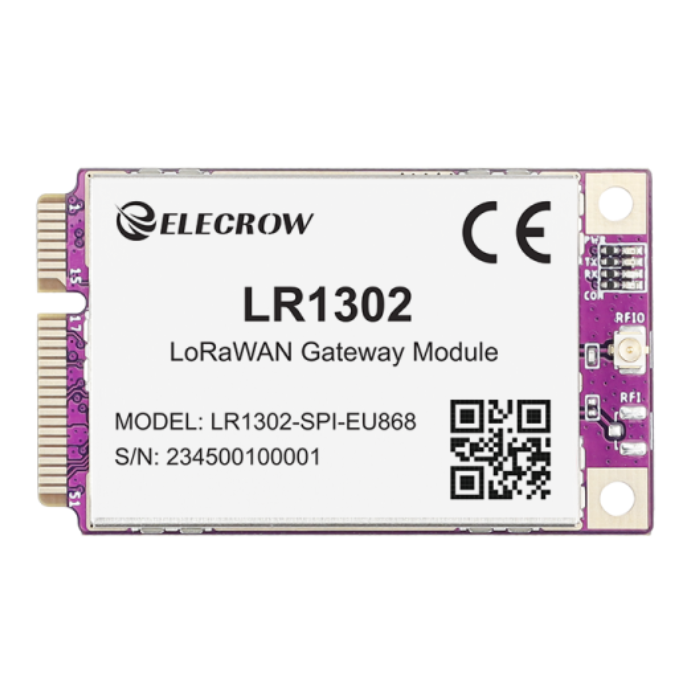

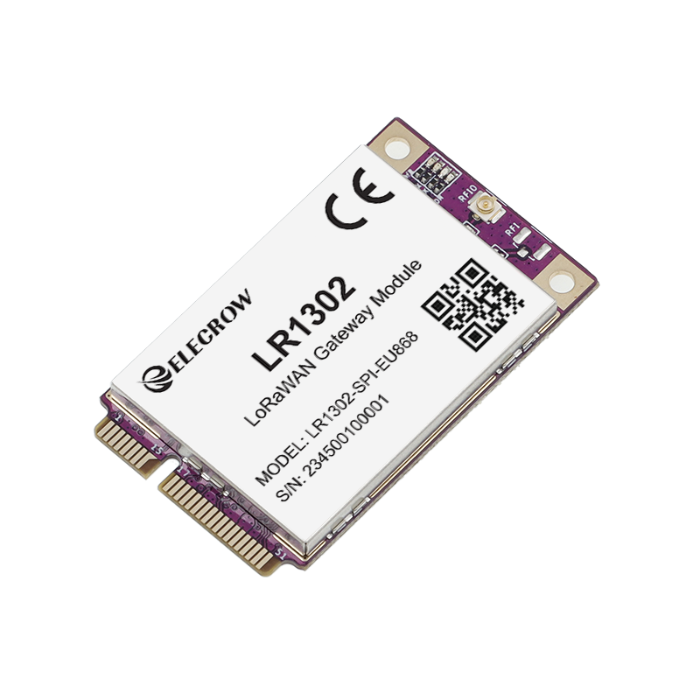

Elecrow LR1302 SX1302 LoRaWAN Gateway Module – 8-Channel EU868
The Elecrow LR1302 LoRaWAN Gateway Module is an 8-channel long-range communication module designed for IoT gateways, wireless sensor networks, industrial automation, and embedded communication systems. It is built around the Semtech SX1302 LoRaWAN baseband chip, providing efficient data communication, high sensitivity, and low-power operation.
The module uses a compact mini-PCIe form factor, making it convenient to integrate into compatible gateway hardware and space-constrained embedded systems. Its 8-channel architecture allows multiple LoRaWAN devices to communicate through the gateway, making it suitable for scalable IoT network deployments.
The LR1302 supports the EU868 frequency band and uses an SX1250 TX/RX front end for long-range wireless communication. It offers sensitivity down to -139 dBm at SF12 and transmit power of up to 26 dBm at 3.3V, supporting reliable communication across long distances.
The module is designed with low power consumption and a low operating temperature, helping simplify gateway design without requiring additional cooling in suitable deployments. Its compact construction and mini-PCIe interface make it a practical choice for developers building custom LoRaWAN gateways and IoT communication systems.
Features
SX1302 LoRaWAN Baseband Chip
The LR1302 uses the Semtech SX1302 LoRaWAN baseband chip, providing improved power efficiency, sensitivity, and communication performance for LoRaWAN gateway systems.
8-Channel LoRaWAN Support
The module supports 8-channel data transmission, allowing multiple LoRaWAN devices to communicate through a gateway and improving network capacity.
EU868 Frequency Band
This version supports the EU868 frequency band, making it suitable for compatible LoRaWAN network deployments operating in the European 868 MHz region.
Long-Range Wireless Communication
The SX1250 TX/RX front end provides sensitivity down to -139 dBm at SF12 and transmit power up to 26 dBm at 3.3V, supporting long-range communication.

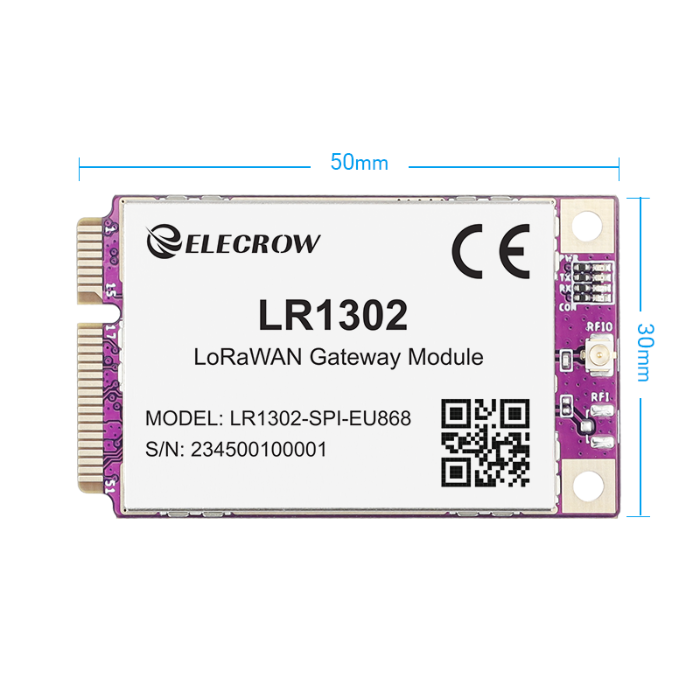

Compact Mini-PCIe Form Factor
The mini-PCIe form factor makes the module easy to integrate into compatible gateway hardware, embedded systems, and space-constrained IoT devices.
Low-Power Operation
The SX1302 architecture is designed for efficient power consumption, making the module suitable for gateway systems where energy efficiency is important.
Low Operating Temperature
The module's low operating temperature can reduce the need for additional cooling in suitable gateway configurations, helping maintain a compact design.
CE Certification
The module has CE certification, helping simplify compliance considerations when developing compatible final products.
Who Should Buy the Elecrow LR1302?
IoT Developers
Suitable for developers building LoRaWAN networks, wireless sensor systems, and connected IoT devices.
Embedded System Engineers
The compact mini-PCIe design makes the module suitable for integrating LoRaWAN connectivity into custom embedded gateway hardware.
Industrial Automation Developers
Useful for long-range wireless communication between sensors, controllers, and gateway systems.
Smart Infrastructure Developers
Suitable for developing connected infrastructure and distributed sensor networks that require long-range communication.
LoRaWAN Gateway Developers
An appropriate choice for developers creating custom 8-channel LoRaWAN gateways based on the SX1302 platform.
Why Choose the Elecrow LR1302?
- Semtech SX1302 LoRaWAN baseband chip
- 8-channel LoRaWAN communication
- EU868 frequency band support
- Sensitivity down to -139 dBm @ SF12
- TX power up to 26 dBm @ 3.3V
- Compact mini-PCIe form factor
- Low-power design
- Low operating temperature
- CE certified
- Suitable for custom LoRaWAN gateway development
Elecrow LR1302 LoRaWAN Gateway Module Price in India
The Elecrow LR1302 SX1302 LoRaWAN Gateway Module is available at ₹3,525 at Robocraze.
With 8-channel LoRaWAN support, SX1302 technology, EU868 frequency compatibility, long-range communication capability, and a compact mini-PCIe form factor, it is suitable for IoT gateway development and embedded wireless communication projects.
Pricing may vary depending on stock availability, offers, and promotions.
Why Buy from Robocraze?
- Genuine Elecrow Product
- Verified Sourcing
- Secure Packaging
- Fast Shipping Across India
- GST Invoice Available
- Technical Support
- Reliable After-Sales Assistance
Ideal For
- LoRaWAN Gateways
- IoT Networks
- Wireless Sensor Networks
- Industrial IoT
- Smart Infrastructure
- Embedded Systems
- Industrial Automation
- Long-Range Communication
- IoT Prototyping
- Custom Gateway Development
- Smart Monitoring Systems
- LoRaWAN Development
LR1302 LoRaWAN Gateway Module Pinout Diagram
