Dual Monster Moto Shield VNH3ASP30 DC Motor Drive - Buy Online in India

Dual Monster Moto Shield VNH3ASP30 DC Motor Drive

Rs. 3,499
Rs. 4,499
Rs. 3,499
Save Rs. 1,000
(-22%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 17 left in stock
SKU: TIFMC0137
  • This is the Dual Monster Moto Shield VNH3ASP30 DC Motor Drive
  • The Maximum Voltage of this Shield is 16V
  • The Peak Current of this Shield is 14 A
  • Current sensing available to Arduino analog pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • The Maximum PWM frequency of this is 20 kHz
  • This has Undervoltage and Overvoltage shutdown.
FLAT ₹ 100/- OFF
RC100
COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer Robocraze Academy Limited Time Offer
Dual Monster Moto Shield VNH3ASP30 – Powerful Arduino shields for high-current DC motor control. -Robocraze
Dual Monster Moto Shield VNH3ASP30 DC Motor Drive
Rs. 4,499 Rs. 3,499

Dual Monster Moto Shield VNH3ASP30 DC Motor Drive

Rs. 4,499 Rs. 3,499

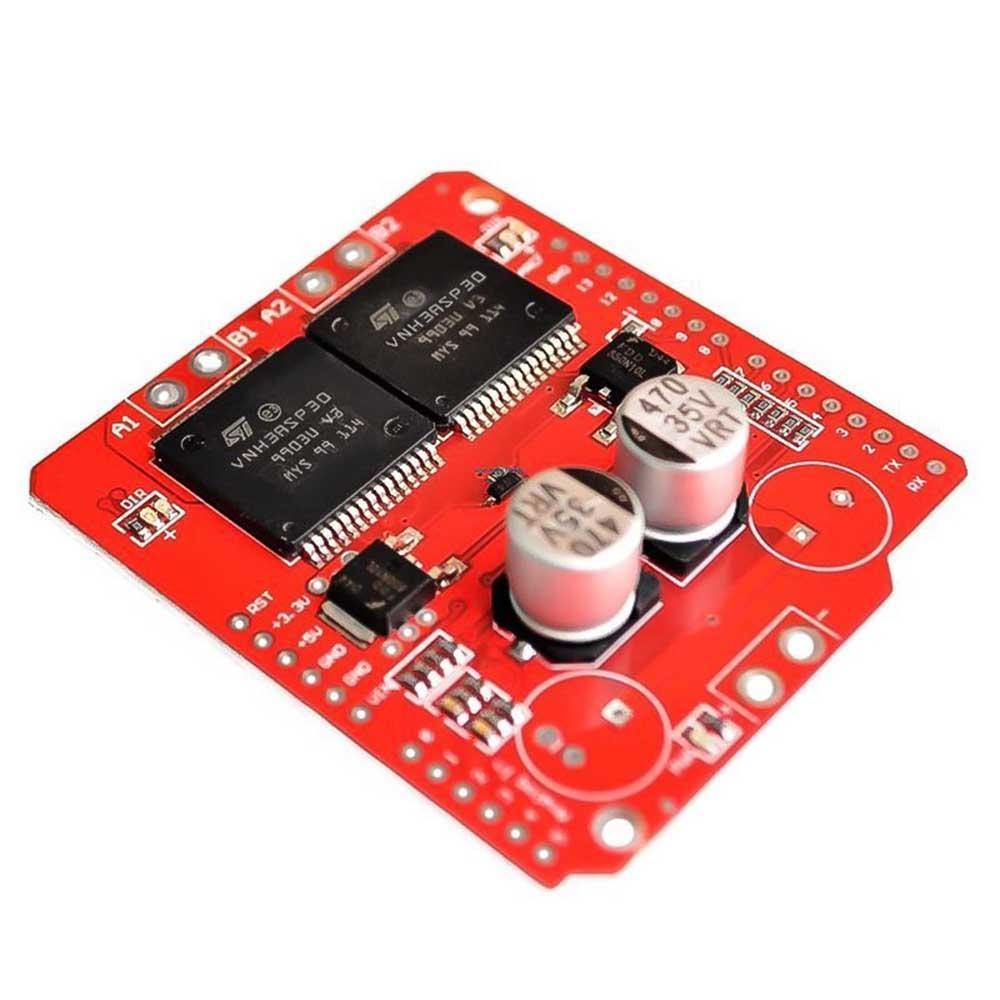

Dual Monster Moto Shield

The Motor Driver Shield Monster Moto has been upgraded to the Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A). This new version features a pair of VNH3ASP30 full-bridge motor drivers, replacing the previous L298 H-bridge. The support circuitry has also been improved to allow for the driving of high-current motors.

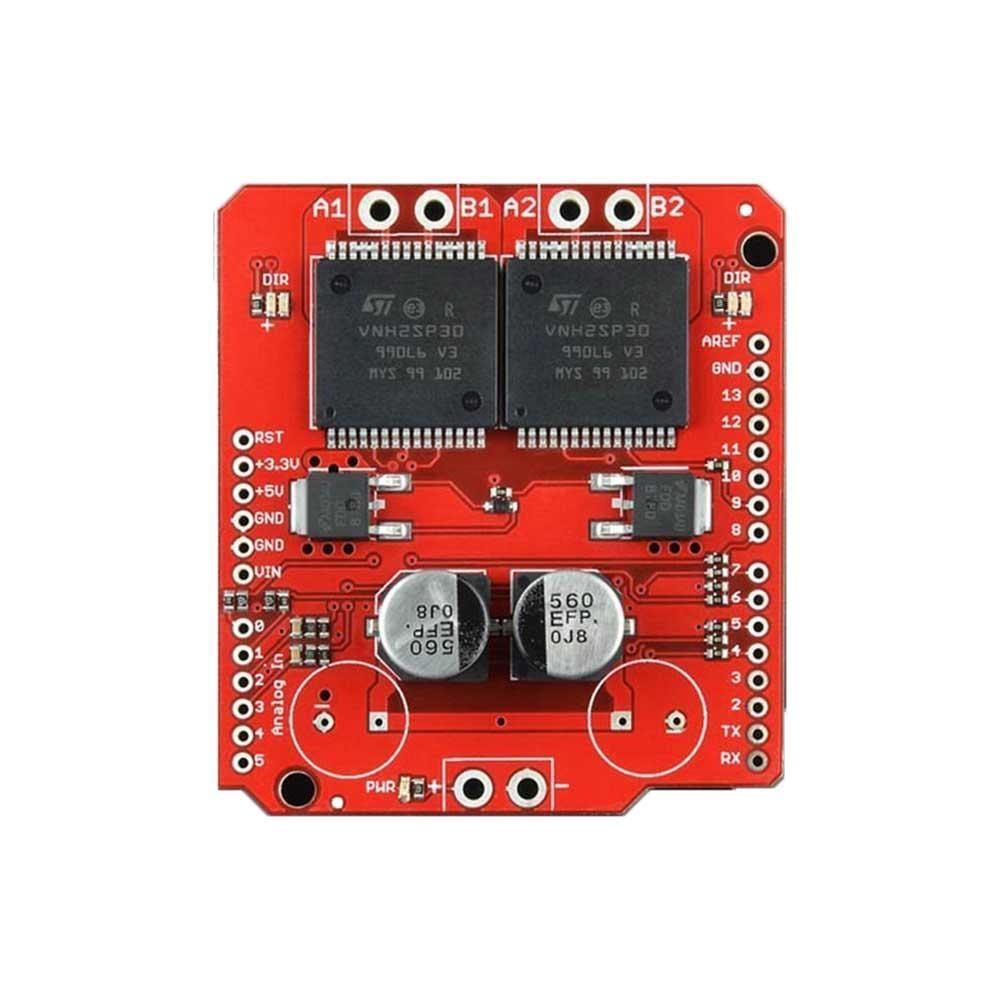

To make it easy to connect larger gauge wires, the VIN and motor out are now pitched for 5mm screw terminals (not included). The direction of each motor is controlled by INA and INB, while the PWM pins turn the motors on or off.

The VNH3ASP30 is ideal for a variety of automotive applications and includes a dual monolithic high-side driver and two low-side switches. The high-side driver switch utilizes STMicroelectronics' VIPower M0 technology to integrate a Power MOSFET with intelligent signal/protection circuitry on the same die.

Furthermore, the current sense (CS) pins on the VNH3ASP30 will output around 0.13 volts per amp of output current. All these features make the Dual Monster Moto Shield VNH3ASP30 DC Motor Driver 2x14A (Peak 30A) a powerful and versatile motor driver shield.

Package Includes:

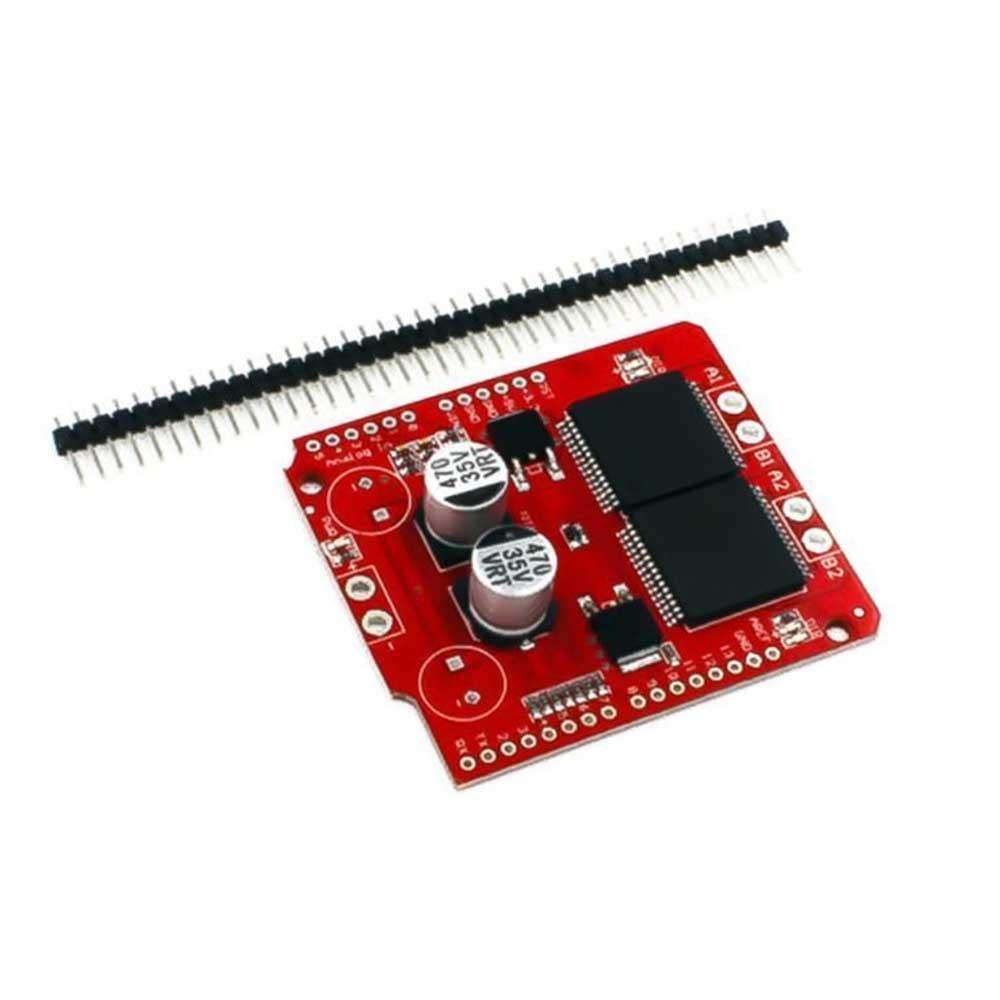

  • 1 x Dual Monster Moto Shield

Specifications:

Driver Model VNH3ASP30
Operating Voltage (VDC) 12 ~ 16
Peak Current (A) 14
No. of Channels

2

Dimensions

60 x 54 x 12(mm)

Weight

5 grams

Specifications:

2

Specifications:

60 x 54 x 12(mm)

Specifications:

5 grams

1. What is a "Dual Monster Moto Shield VNH3ASP30 DC Motor Drive", and how can it be used in robotics or other projects involving DC motors?

The Dual Monster Moto Shield VNH3ASP30 DC Motor Drive is a motor driver shield that can control two high-current DC motors. It is suitable for a variety of automotive applications and has a continuous current capacity of either 14A or 30A, depending on the model. The shield features a dual monolithic high side driver and two low side switches, and can be connected to an Arduino or another microcontroller to manage motor speed and direction. This shield is ideal for use in robotics or other projects that require DC motor control, including electric vehicles, drones, and industrial automation.

2. What are some of the key features and specifications of the "Dual Monster Moto Shield VNH3ASP30 DC Motor Drive", and how do they impact its performance and compatibility with different types of motors?

The VNH3SP30 Dual Monster Motor Driver Shield is a shield for driving 2 DC motors, capable of sustaining up to 9A. It is a modified version of the Ardumoto motor driver shield, using a VNH3SP30 full-bridge motor driver instead of the L298 H-bridge. The board has a maximum current rating of 30A for driving high-current motors. The VIN and motor out connectors use 5mm screw terminals, and the board includes additional circuitry for compatibility with different types of motors. These features enhance the performance of the shield, enabling it to drive high-current motors and accommodate various types of motors.
