DRV8833 2 Channel DC Motor Driver
DRV8833 2 Channel DC Motor Driver
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Dual-H-bridge driver for two DC motors or one stepper motor.
- Voltage range: 2.7V to 10.8V.
- 1.2A continuous (2A peak) current per motor.
- Compatible with 3V and 5V input signals.

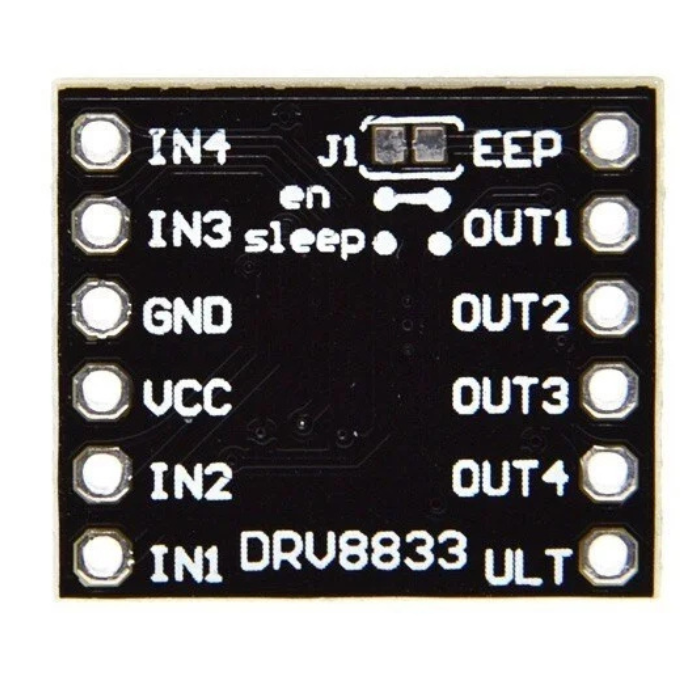

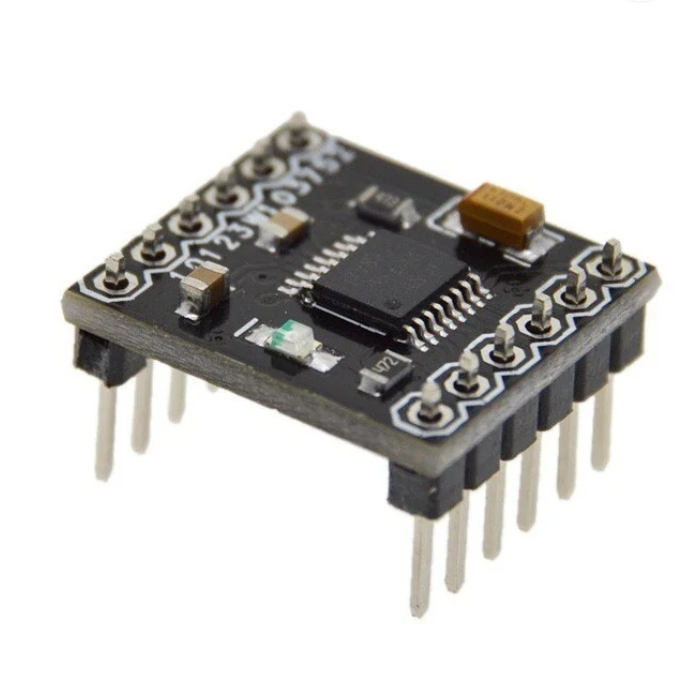

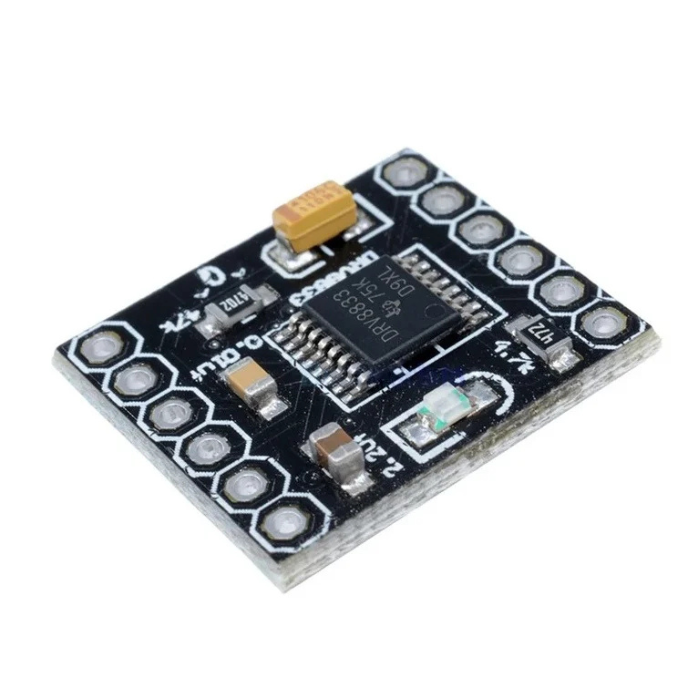

DRV8833 2 Channel DC Motor Driver
The DRV8833 2 Channel DC Motor Driver is a small, powerful motor driver that controls two brushed DC motors. It works with motor voltages between 2.7V and 10.8V, providing up to 1.2A of continuous current per channel, with short bursts up to 2A. This makes it ideal for low-voltage, small-motor applications. The board comes fully assembled with the DRV8833 chip and includes a safety feature for reverse battery protection. It also has built-in current limits and doesn’t need an external power supply for the logic voltage, making it easy to use in various projects.
Key features
- Dual-H-bridge for two DC motors or one stepper motor.
- Voltage range: 2.7V to 10.8V.
- 1.2A continuous (2A peak) per motor, 2.4A continuous (4A peak) when paralleled.
- 3V- and 5V-compatible inputs.
- Protection against under-voltage, over-current, and over-temperature.
- Reverse-voltage protection.
- Current limiting with optional sense resistors.
Package Includes

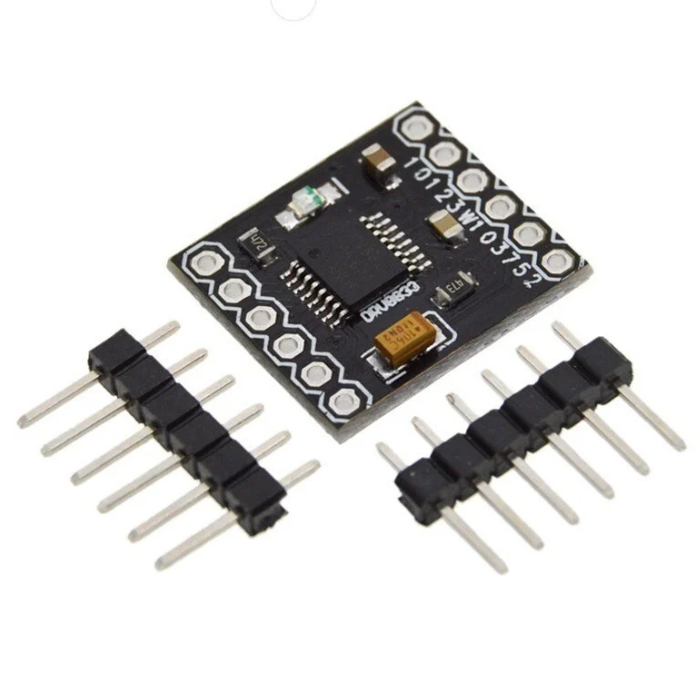

- 1 x DRV8833 2 Channel DC Motor Driver Module
- 12 x Pin Headers
Specifications
| Specification | Details |
|---|---|
| Model Series | DRV Series |
| Voltage Rating | 2.7 to 10.8VDC |
| Current Rating | 1.2 to 2A |
| Width | 18mm |
| Height | 8mm |
| Weight | 5g |
