DFRobot Gravity Industrial Stainless Steel Submersible Pressure Water Level Sensor 0-5m

DFRobot Gravity Industrial Stainless Steel Submersible Pressure Water Level Sensor 0-5m

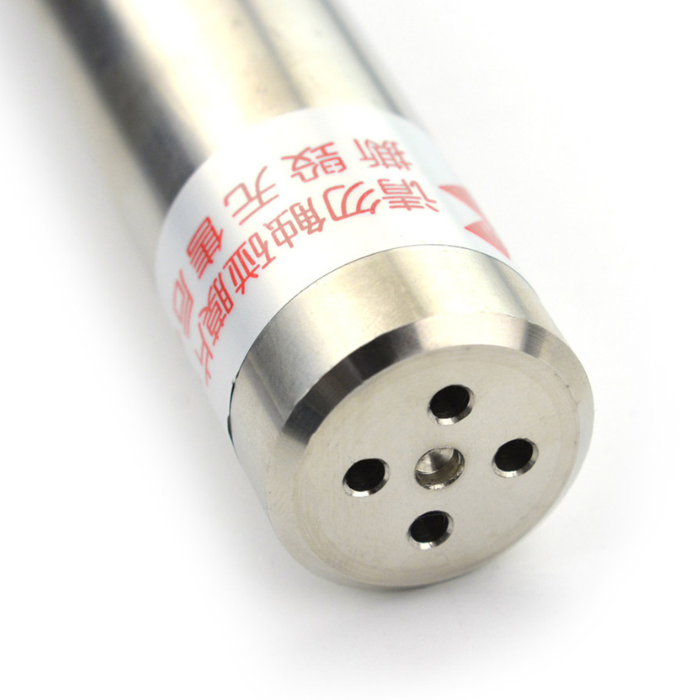

This tough Industrial Stainless Steel Pressure Sensor is excellent for checking the level of water or other liquids in places like storage tanks, deep wells, or even small rivers. It can accurately measure liquid depths from 0 all the way up to 5 meters.

Because it's made from strong stainless steel, it doesn't rust easily and you can place it directly into water, oil, or even slightly thick liquids without any worries about damage. It’s a very handy Submersible Level Sensor 0-5m that sends out an industry-standard 4-20mA Water Level Sensor current signal.

This type of signal is commonly understood by many industrial control systems (PLCs) and other professional equipment.

You can also easily connect this Gravity Pressure Level Sensor to microcontrollers like Arduino (usually with a simple converter module) for your own science projects or automatic systems, making it simple to monitor liquid levels precisely.

Important Notes:

• Follow the power supply connection instructions carefully.

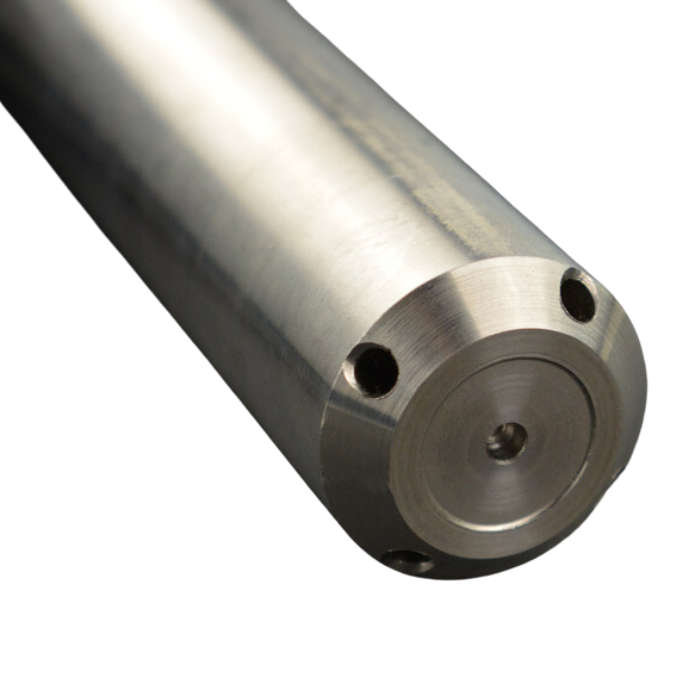

• Do not disassemble, drop, or strike the sensor. Avoid touching the diaphragm with sharp objects.
• The sensor works immediately after powering on but gives stable output after 30 minutes of preheating. Stop using if any abnormality occurs.
• Install the sensor vertically downward. Ensure the terminal is waterproof to prevent water entry.
• Submerge the probe properly, secure it in place, and keep it away from the water inlet.

DFRobot Gravity Submersible Pressure Water Level Sensor with Arduino Circuit Diagram

Dimensions

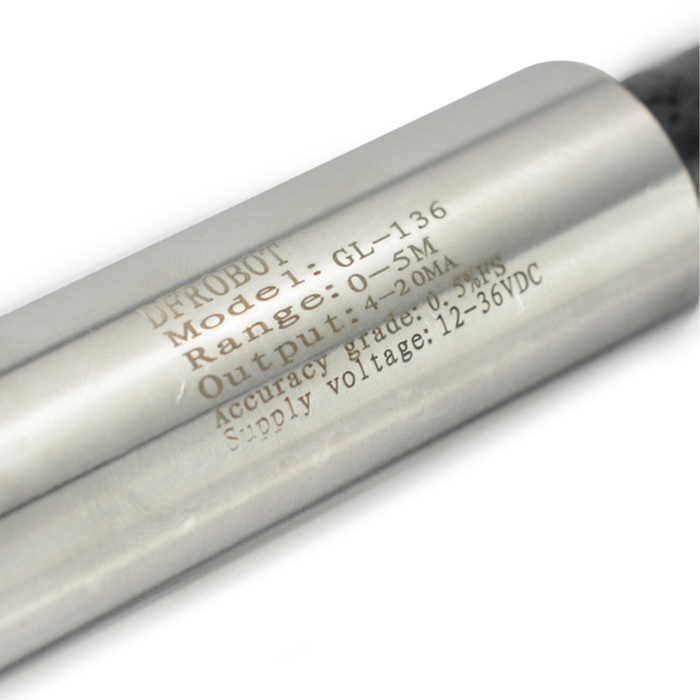

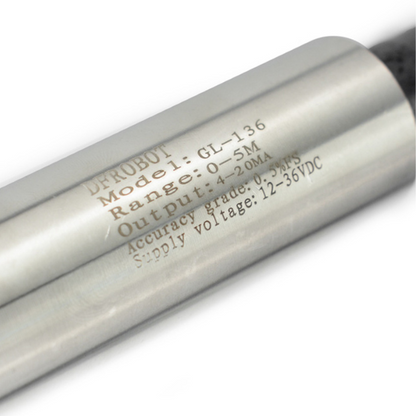

Features

• Measuring Range: 0 to 5 meters water depth.
• Output Signal: Industry-standard 4-20mA current.
• Body Material: Tough 304 Stainless Steel shell.
• Waterproof: IP68 rated for full submersion.
• Accuracy: Precise readings with 0.5% Full Scale.
• Power Supply: Works with 12V to 36V DC.

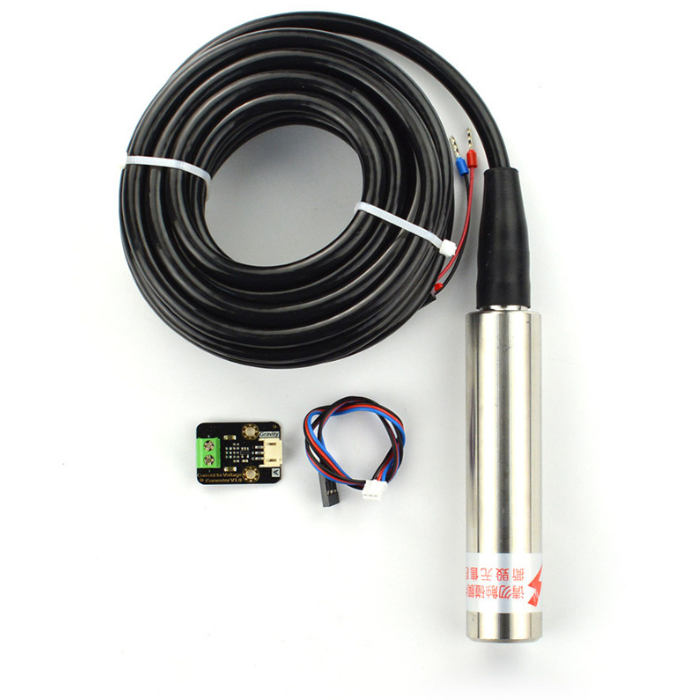

Package Includes

• 1 x Gravity: Industrial Stainless Steel Submersible Pressure Level Sensor(0~5m)

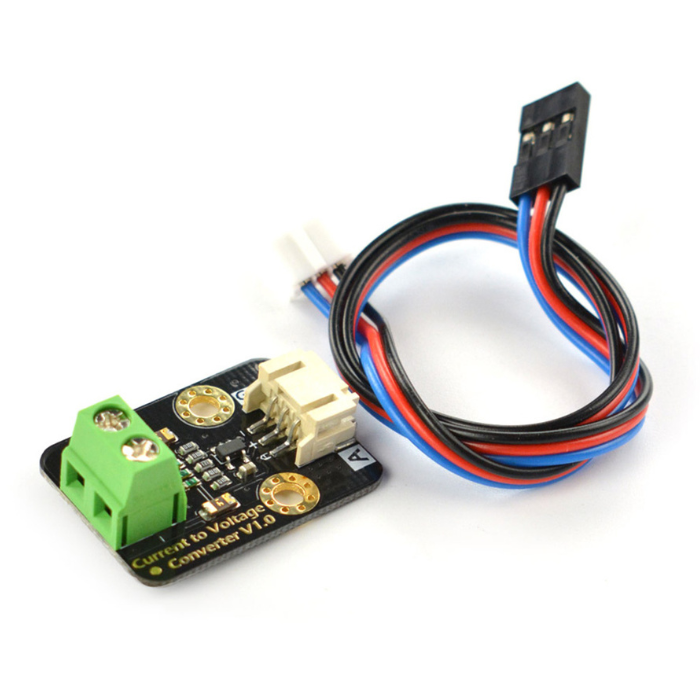

• 1 x Gravity: Analog Current to Voltage Converter(for 4~20mA Application) (SEN0262)
