- The SX1308 is a DC-DC step-up module that has a maximum output power of 28V and 2A, utilizing a 1.2Mhz power booster module with an SX1308 chip.
- The SX1308 chip comes in a small package with high efficiency, and its output power can be easily adjusted.
- The booster module has an integrated MOSFET with the lowest RDS internal resistance of 100mΩ, which allows it to generate large current outputs of up to 2A.
- The circuit has short circuit protection and overheating protection functions, ensuring safety.
- The module features a 10k potentiometer for adjusting the output voltage.
- The SX1308 adjustable power supply is suitable for use in 3G network products, digital products, mobile power supply, battery power supply, and other equipment.

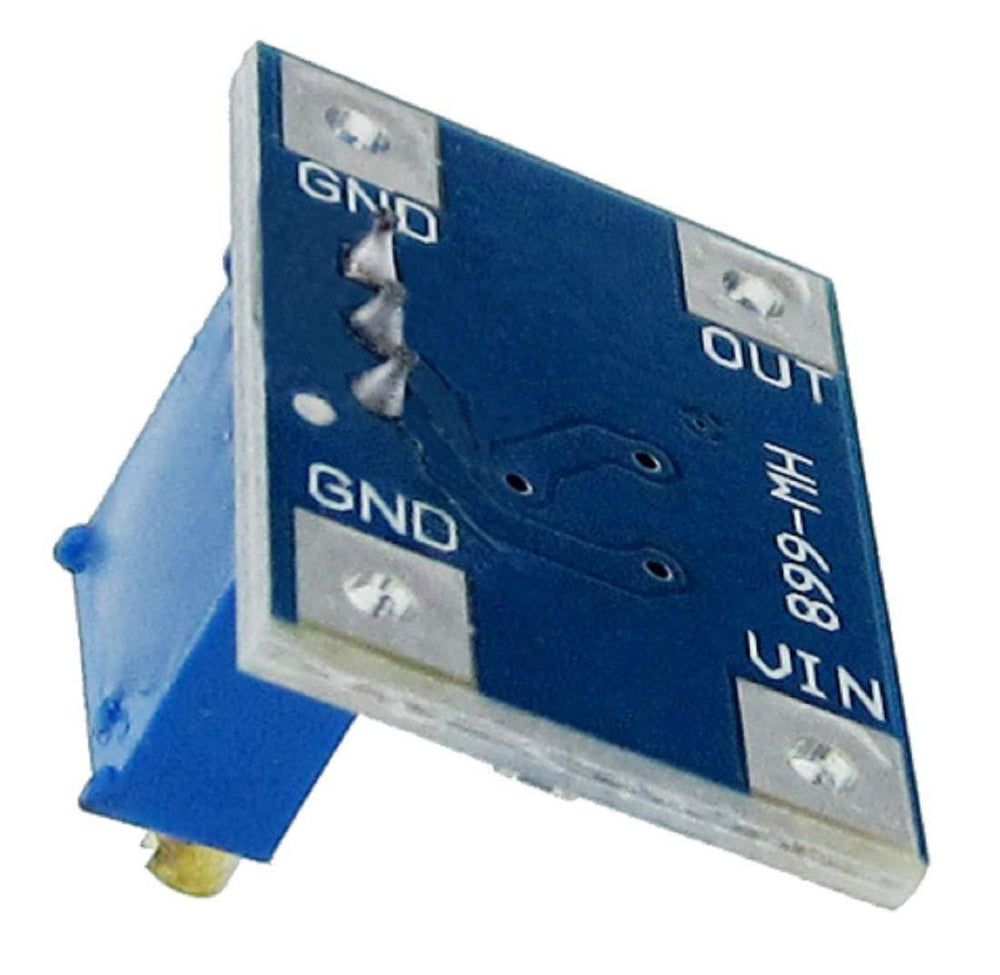

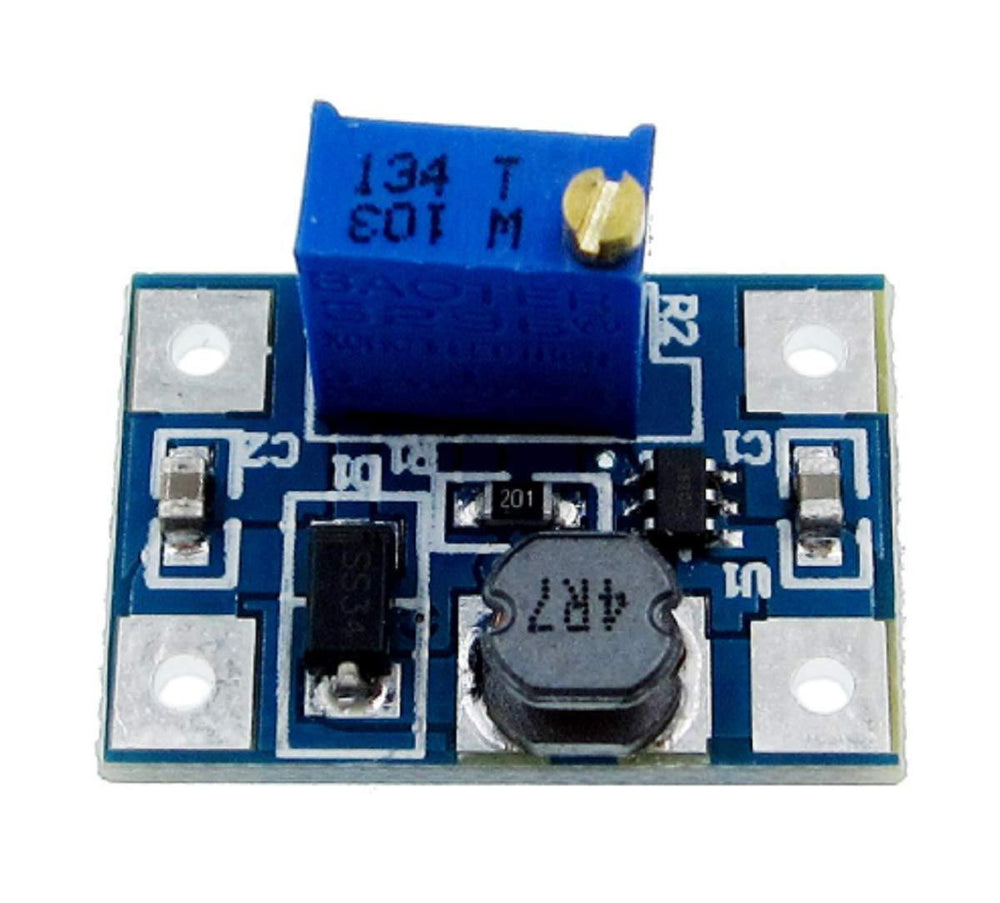

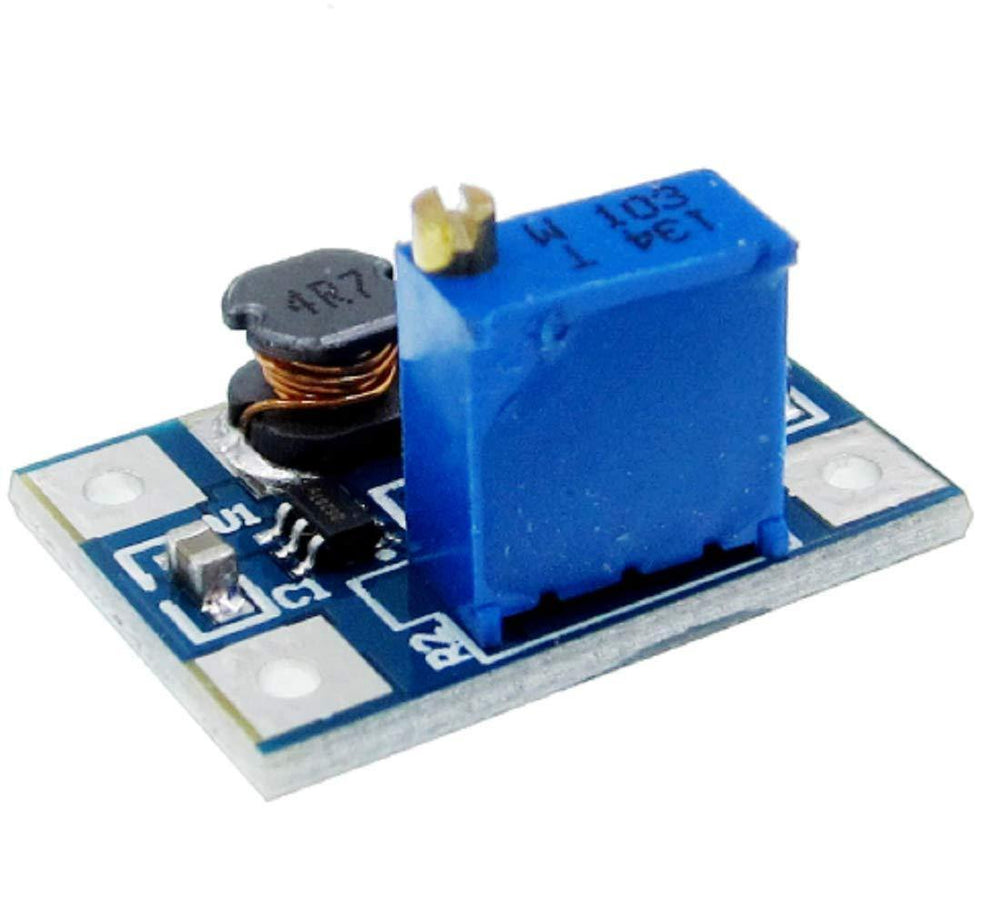

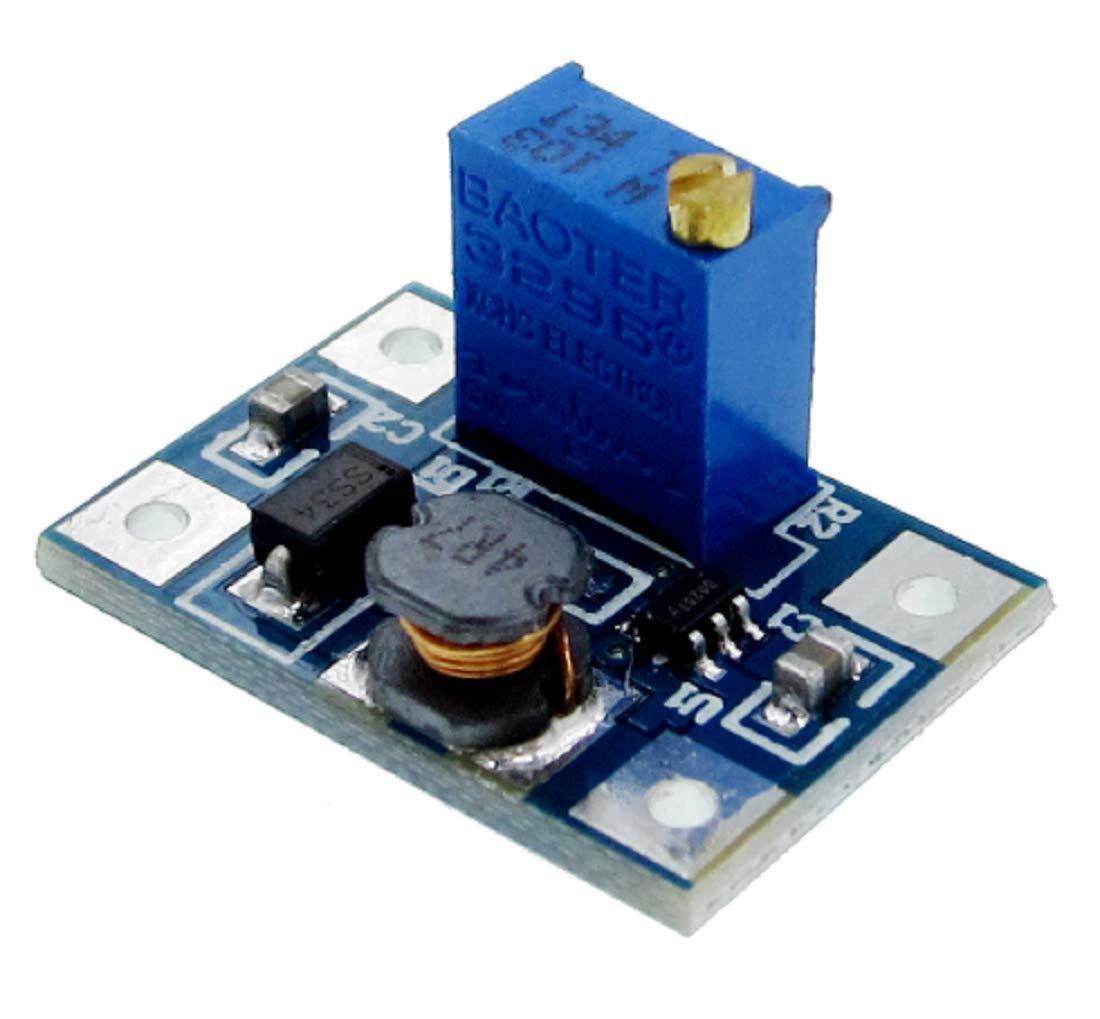

DC-DC SX1308 Step-up Adjustable Power Module
The SX1308 Adjustable Power Supply is a DC-DC step-up module that has a maximum output power of 28V and 2A, utilizing a 1.2Mhz power booster module with an SX1308 chip. The SX1308 chip comes in a small package with high efficiency, and its output power can be easily adjusted. This booster module has an integrated MOSFET with the lowest RDS internal resistance of 100mΩ, which allows it to generate large current outputs of up to 2A.
Features
- Oscillation frequency 1.2MHz
- efficiency is as high as 95%
- The circuit has short circuit protection, overheating protection function
- 10k to adjust potentiometer, adjust the output voltage
Applications
- 3G network products
- digital products
- mobile power supply
- battery power supply, equipment, etc.
Package Includes:
- 1 x DC-DC SX1308 Step-up Adjustable Power Module
Specifications:
| Maximum input voltage | DC 2-24V |
| Maximum output voltage | DC 2-28V |
| Switching frequency | 1.2MHz |
| Dimensions | 24 x 16 (mm) |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
LM317 DC to DC Converter Step Down Power Supply
Regular price
Rs. 52
Regular price
Rs. 99
Sale price
Rs. 52
Unit price
per
Incl. GST (No Hidden Charges)
Sale
150W Dc-Dc Boost Adjustable Power Converter
Regular price
Rs. 148
Regular price
Rs. 208
Sale price
Rs. 148
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
XL6019 DC-DC 5A Adjustable Boost Power Supply Module
Regular price
Rs. 154
Regular price
Rs. 168
Sale price
Rs. 154
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the SX1308 Boost Converter?
The SX1308 Boost Converter is designed for small, low power applications and operates as a constant frequency, current mode step-up converter. This DC-DC step-up boost voltage converter enables the use of small, inexpensive capacitors and inductors measuring 2mm or less in height. With a switching frequency of 1.2MHz, the SX1308 offers an adjustable output voltage range of 3-28V and a maximum output power of 2A. The chip is widely utilized in electronic projects that require a voltage boost, and there are numerous booster modules available that utilize the SX1308.
2. What are the typical applications of the SX1308 Boost Converter?
The SX1308 Boost Converter is a highly efficient power converter module that is widely used in small and portable applications that require a voltage boost. It can convert input voltages as low as 2V into output voltages as high as 28V at a maximum output current of 2A. The module features an adjustable output voltage range that can be set using the onboard potentiometer. With its constant frequency, 6-pin SOT23 current mode step-up converter design, the SX1308 allows for the use of tiny, low-cost capacitors and inductors that are 2mm or less in height. This makes it a suitable choice for electronic projects that require a boost in voltage, such as LED lighting, battery charging, and motor driving.
