  • This is 0.9V-5V to 5V DC-DC USB Step Up Power Boost Converter Module
  • The module adopts a high-performance imported chip, performance is superior to the common module.
  • Take the USB female, a wide range of Uses.
  • A single AA battery power supply can output a current up to 200~300 ma.
  • Two AA batteries to the output current of 500~600 mA.
  • Work from battery voltage as low as 0.9V, allowing you to maximize battery use.
  • If your USB device is critical on 5V operation you can use this module.

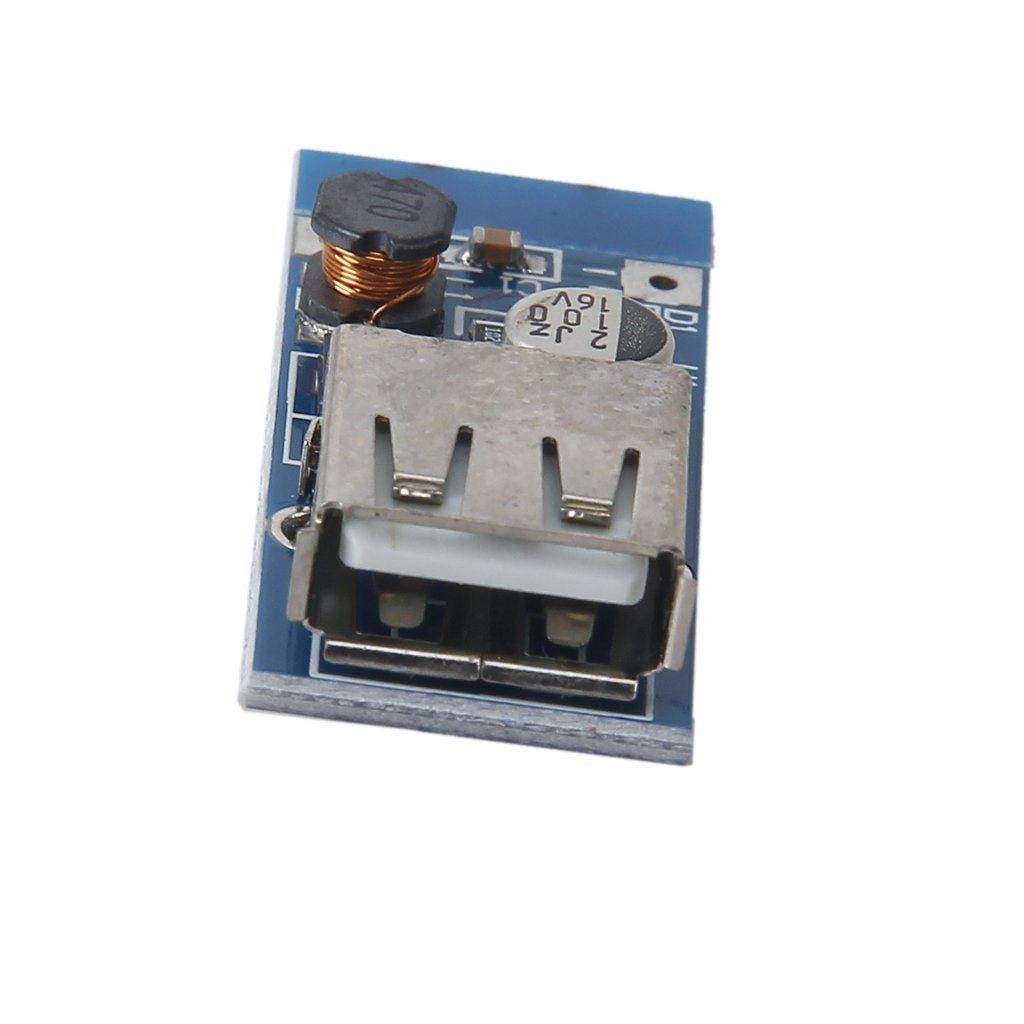

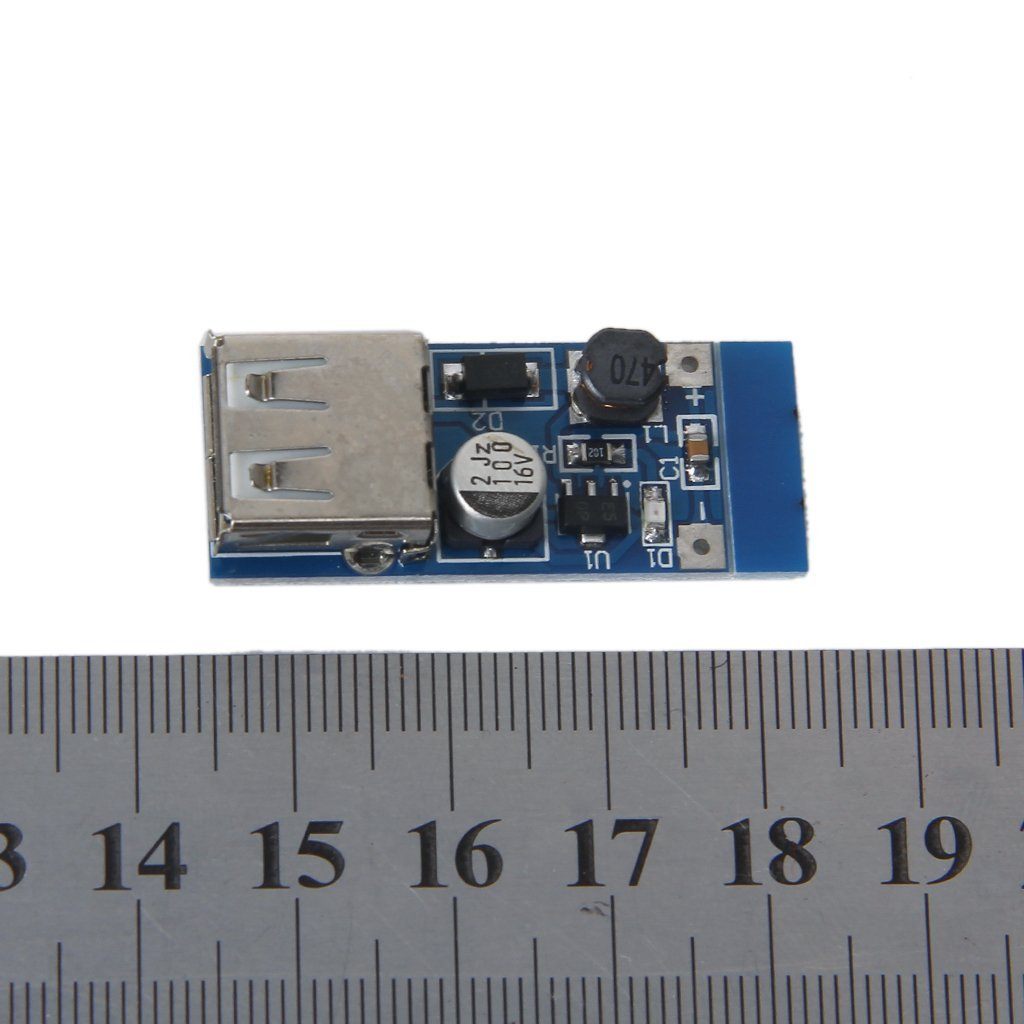

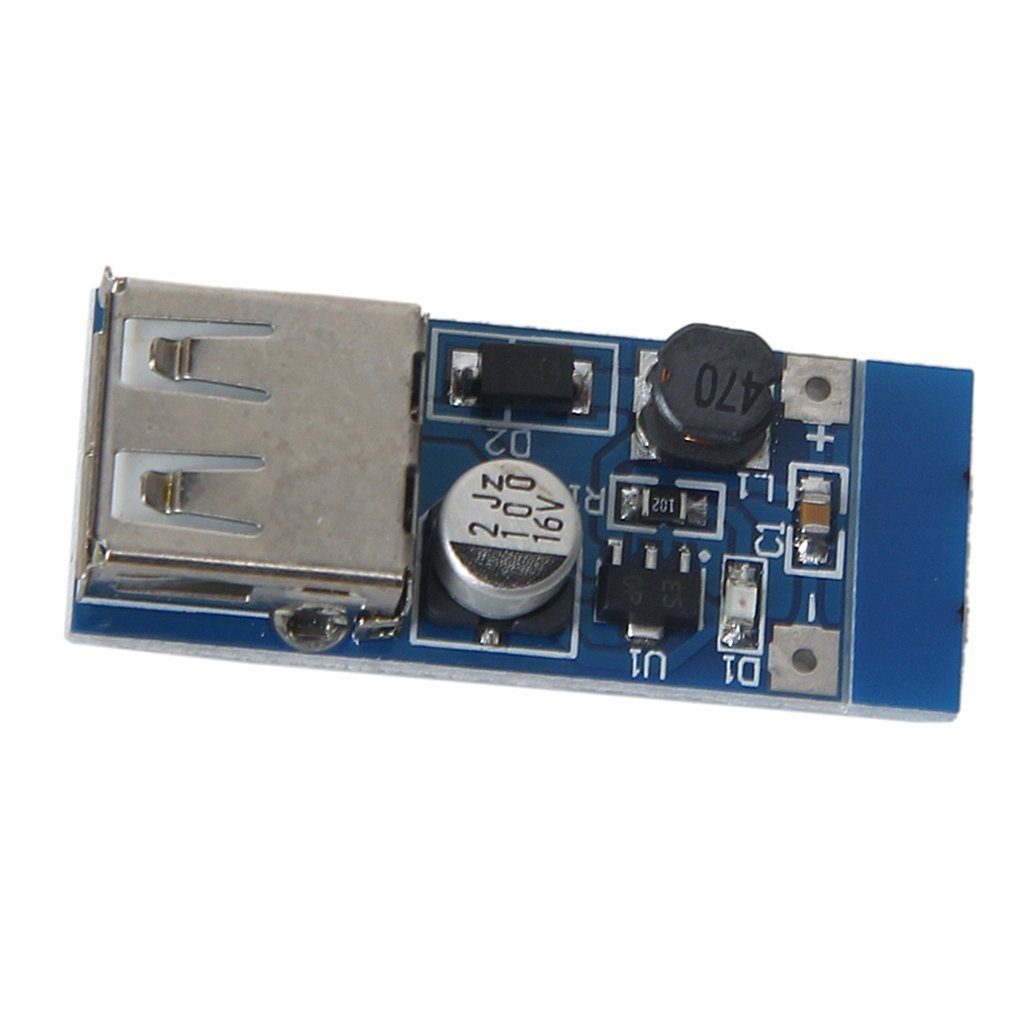

0.9V-5V to 5V DC-DC USB Step Up Power Boost Converter Module

The USB converter modules produce an output of 5V and feature an LED indicator. It can be used in various applications like mobile phone, pad, GPS, automobile data recorder and Bluetooth device.

Step-up Module with 0.9-5V input, output 5V for many digital devices, so this is really a great module for designing a portable charger. Useful for your USB charger projects and onboard USB device supply solutions. (ie GoPro cameras)

You can supply it with single-cell LiPO or an AA size battery or others. Two AA batteries can output a current of 500 ~ 600MA, a single AA battery power supply can output 200ma current supply, great for mobile phones camera, single-chip, and digital products supply.

check out : 0.9V-5V to 5V 600MA USB Output charger step up Mini DC-DC Boost Converter

Applications:

  • USB voltage regulator for USB-powered device.
  • This module will bring the USB voltage required for your application at regulated 5V output.
  • Various USB devices need 5V from low voltage batteries.
  • Charge mobile phone/MP4/MP3 from AA battery when traveling

Package Includes:

  • 1 x USB step-up boost module.

Specifications:

Input 0. 9V 5v
Output 5V
Dimensions  39Mm x 15mm
Weight 5 grams
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-45%
LM317 DC to DC Converter Step Down Power Supply-Robocraze

LM317 DC to DC Converter Step Down Power Supply

Rs. 54
Rs. 99 Rs. 54
Incl. GST (No Hidden Charges)
Sale
-51%
XL4015 DC-DC Step Down Adjustable Power Supply Module-Robocraze

XL4015 DC-DC Step Down Adjustable Power Supply Module

Rs. 71
Rs. 144 Rs. 71
Incl. GST (No Hidden Charges)
Sale
-5%
XL6019 DC-DC 5A Adjustable Boost Power Supply Module-Robocraze

XL6019 DC-DC 5A Adjustable Boost Power Supply Module

Rs. 159
Rs. 168 Rs. 159
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. What is USB 5V DC Boost Step-Up power supply module?

  •  DC-DC Boost Step-Up power supply module is a power module that converts an input voltage in the range of 2.5 to 5V to a regulated voltage of 5V  available from a USB Type-A connector. Suitable for stabilizing battery charging and compensating losses in long lines. The output power of this module is  affected by various factors such as front-end power supply and rear load, as well as the load capacity of the module itself.

2. What are the uses of DC to DC Boost Step-Up power supply module?

  • This module can be used for DIY mobile power. Especially when traveling, we often face  battery power issues in mobile devices, MP3 players, smart watches, etc.  In this case, if you have a spare battery, you can consider  a mobile power supply. Just choose this 5V USB step up power boost module module and lithium battery or 2-3 Ni-MH batteries. You can get 5V output  voltage to charge your mobile phone, MP3, MP4, PDA, PSP very easily and conveniently.

3. Does this DC to DC Boost Step-Up power supply module have short-circuit protection? Will it burn out if the input is short-circuited accidentally when I use it?

  • No, There is no short-circuit protection in the Step Up Power Supply Module. If you need short-circuit protection, connect a resettable fuse in series at the input.
