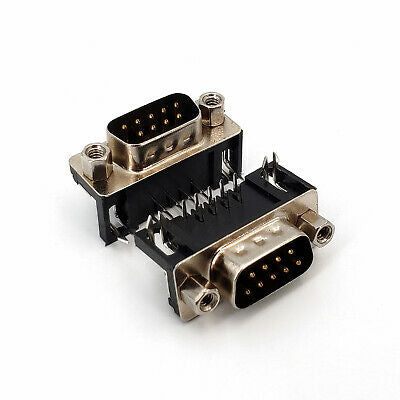

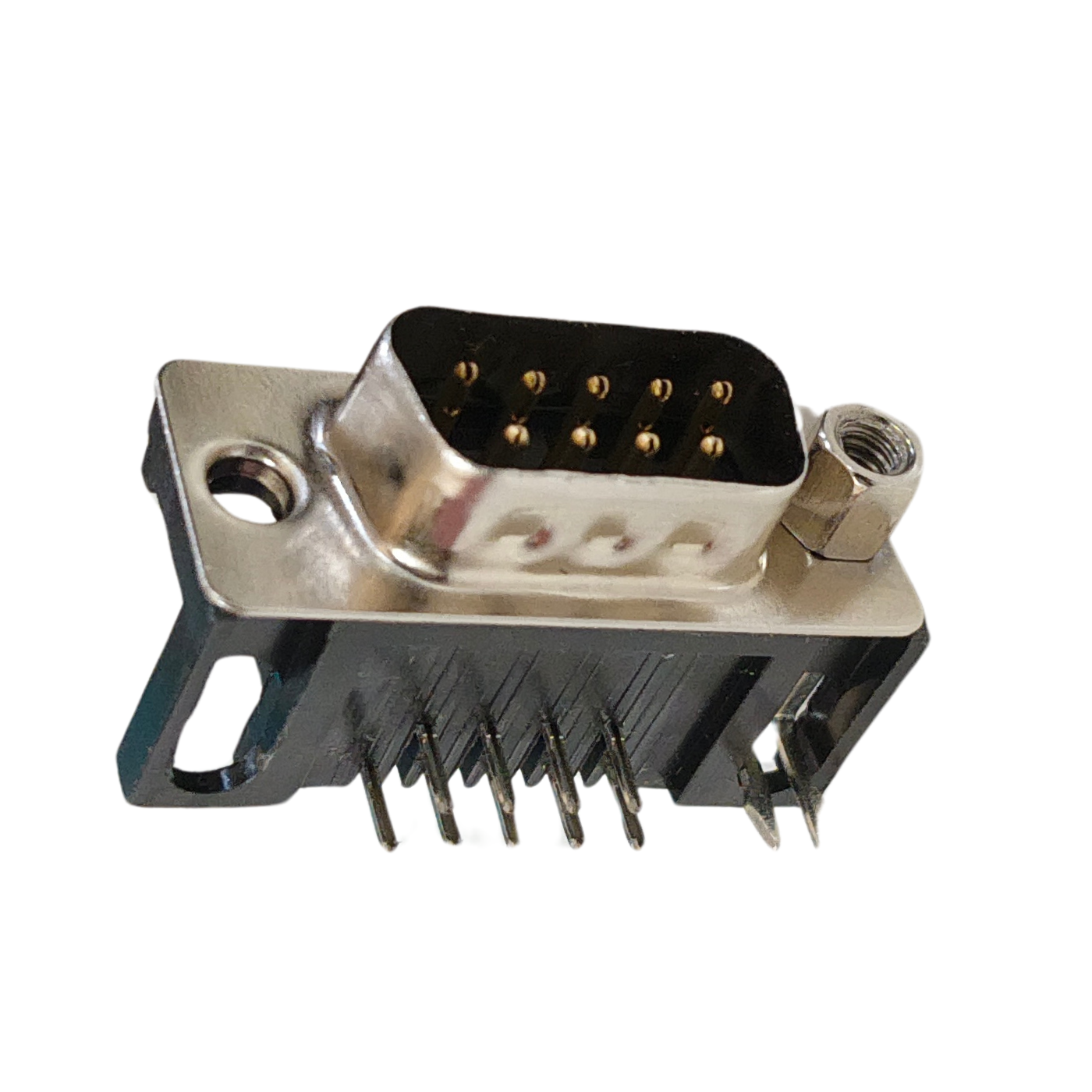

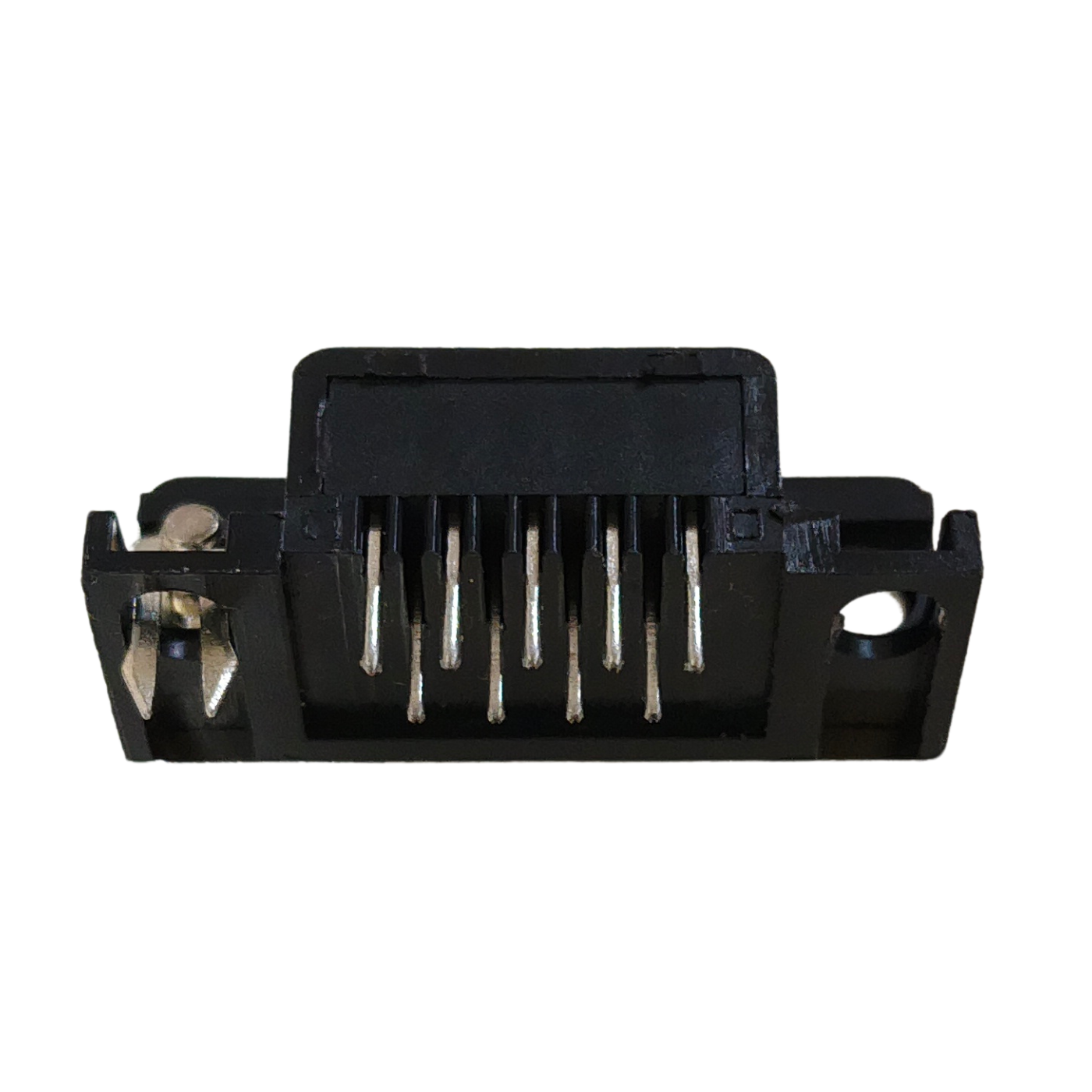

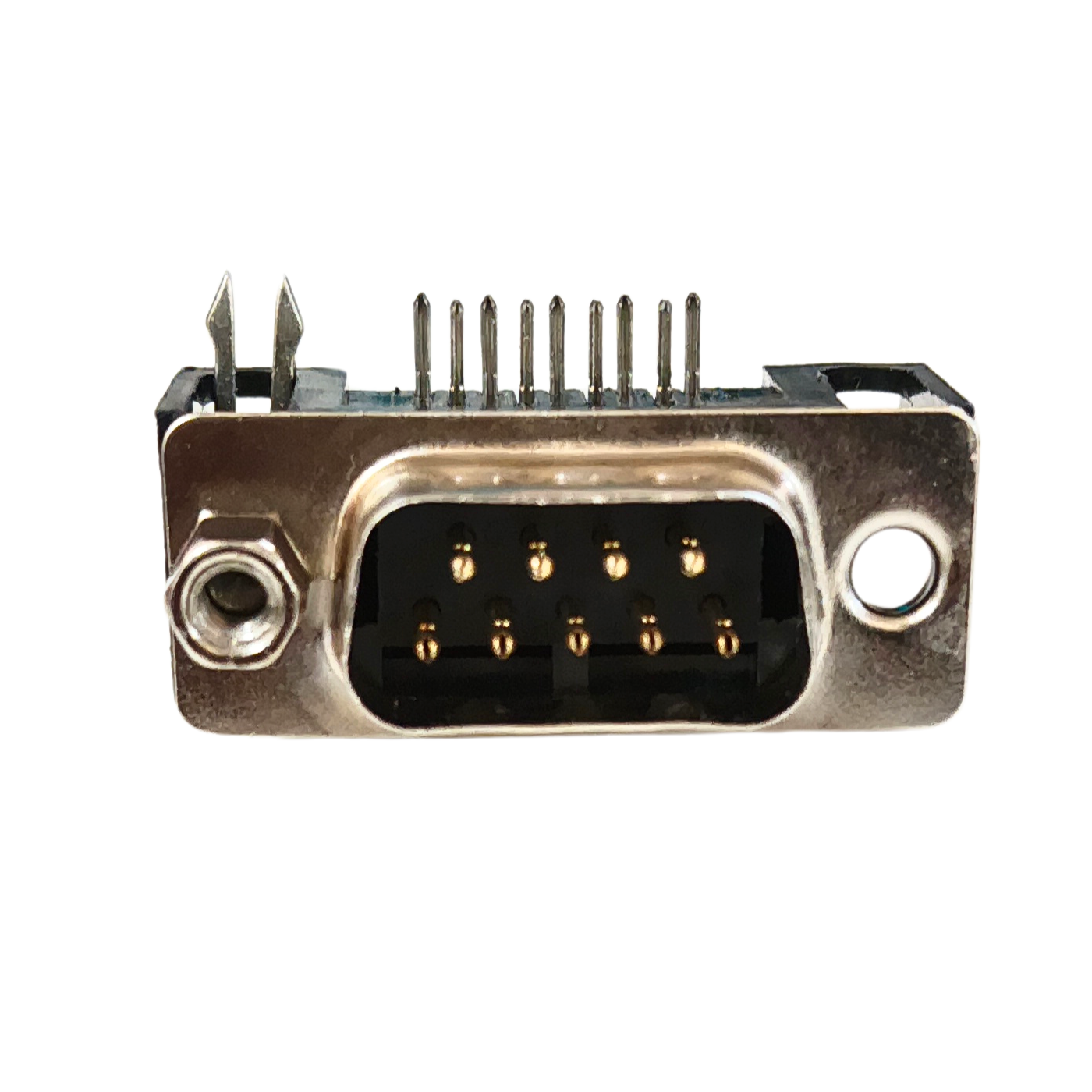

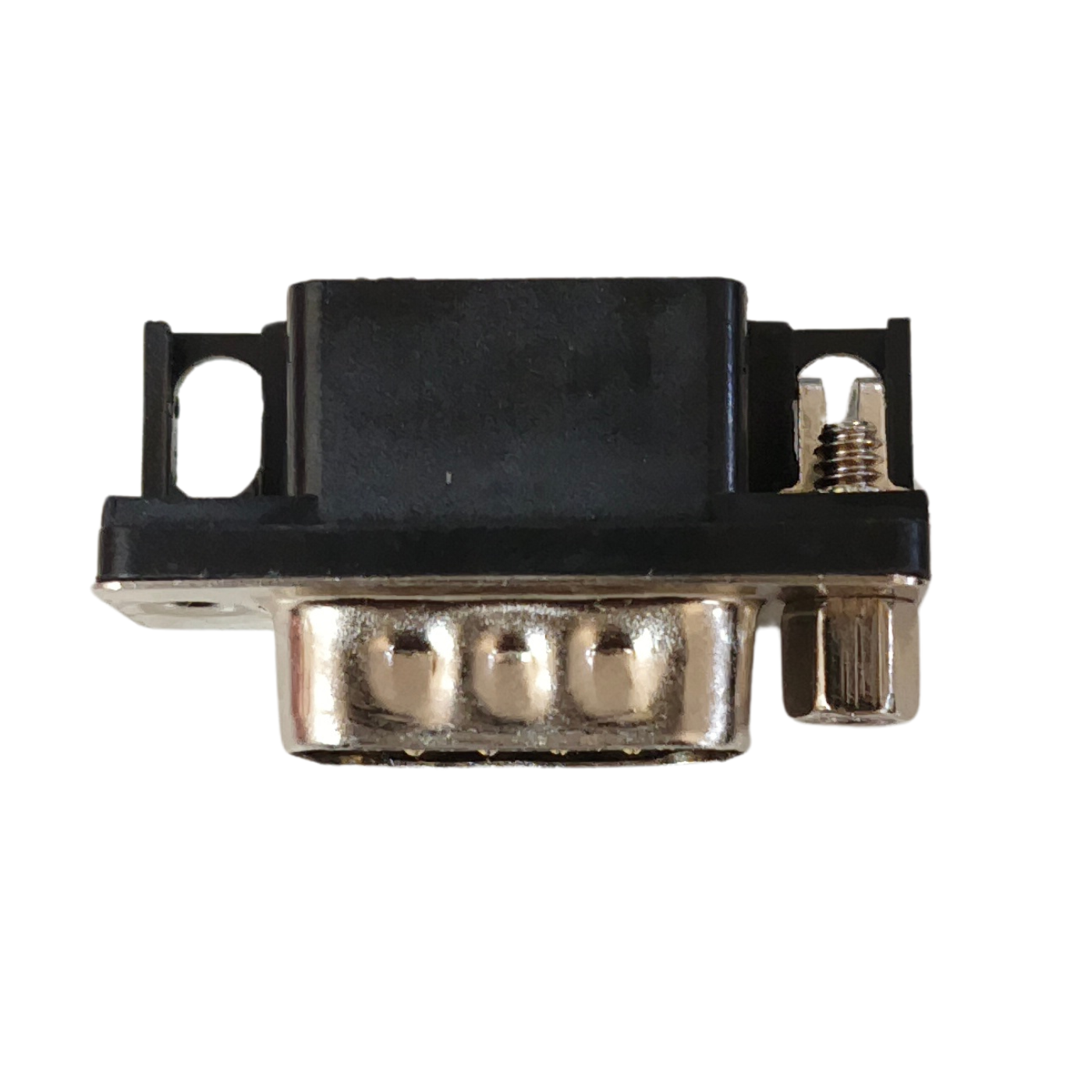

DB-9 Male Right Angle Connector

DB-9 Male Right Angle Connector

Regular price Rs. 15
Regular price Rs. 12 Sale price Rs. 15
Sale Sold out -25% off Best Price Guaranteed
You save Rs. -3
Incl. GST (No Hidden Charges)
  • Allows cables to mate at a 90-degree angle to avoid nearby obstructions
  • One-inch low profile for optimum clearance allowance
  • 100% shielding throughout for protection against EMI/RFI
  • Gold contact plating provides reliable connections with repeated mating cycles
  • Connector options are DB9, DB15, DB25, DB37 or HD15 male to female with three exit orientations
  • Industry standard commercial D-sub male right angle PCB style connectors
  • Board locks provide a secure PCB connection and easy soldering
  • UL94V-0 rated connector insulator satisfies flammability requirements
  • Gold flash plating ensures repeated mating cycles
  • Available in 9, 15, 25, 37 and high density 15 position sizes
  • DB-9 Male Right Angle Connector

    Designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard, so that multiple companies could design them into their products. DB9 connectors are commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used on DB9 cable assemblies for data connectivity. DB9 is used in many legacy devices that use the DB9 interface for serial communication.

    The connector module is a male right-angled connector with solder cups. Best suitable for mounting on circuit board.
    Connecting cables in tight spaces can be a problem in many applications. These low profile right angle D-Sub adapters solve this problem by allowing cables to be connected at a 90-degree angle. Three versions are available for each connector size allowing for cables to exit in opposite directions. Adapters are male to female, fully shielded and are over-molded with gray PVC. Mating hardware is reversible allowing for use in virtually any application.

    Applications:

    D-Sub confined space
    Enclosure applications
    OEM applications
    Serial data transmission
    Data networks
    Instrument control
    Device management
