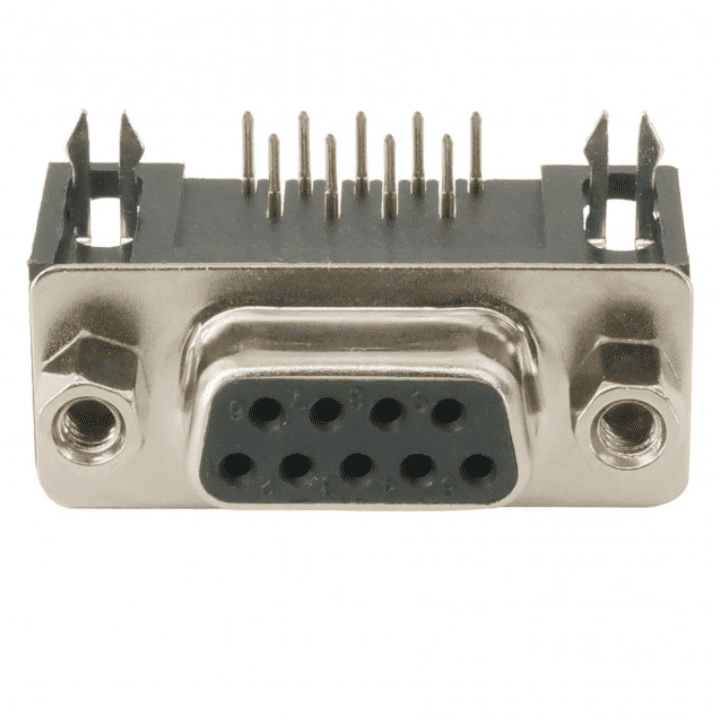

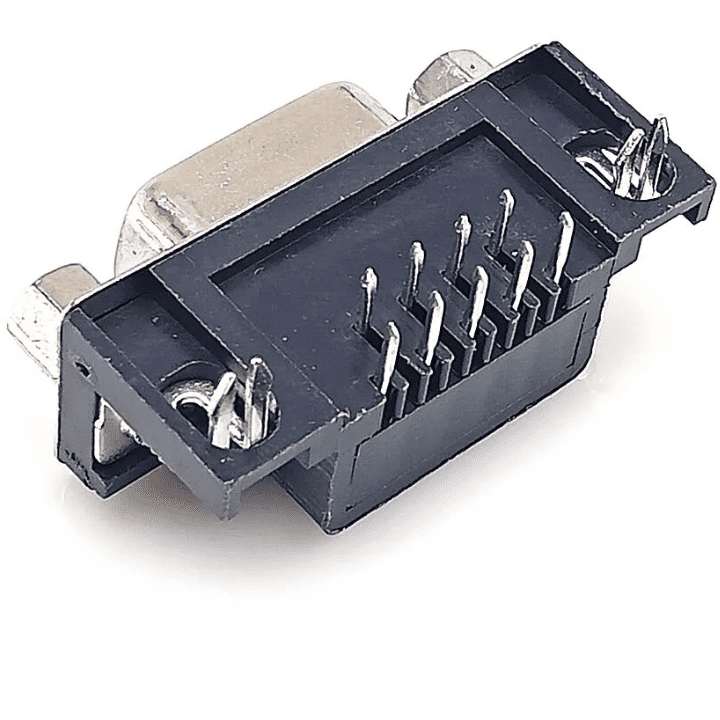

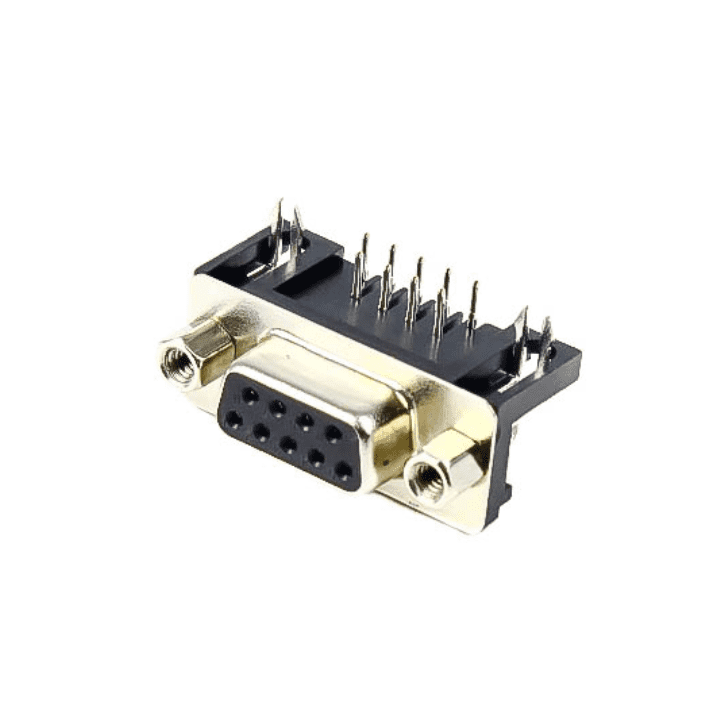

DB9 Female Right Angle Connector PCB Mount

DB9 Female Right Angle Connector PCB Mount

Regular price Rs. 14
Regular price Rs. 19 Sale price Rs. 14
Sale Sold out 26% off Best Price Guaranteed
You save Rs. 5
Incl. GST (No Hidden Charges)
  • Industry standard commercial DB9 (DE-9) female PCB style connector
  • UL94V-0 rated connector insulator satisfies flammability requirements
  • Standard mounting holes for application flexibility
  • Gold flash plating ensures repeated mating cycles
  • Also available in 15, 25 and 37 position sizes
  • DB9 Female Right Angle Connector PCB Mount

    Designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard, so that multiple companies could design them into their products. DB9 connectors are commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used on DB9 cable assemblies for data connectivity. DB9 is also used in many legacy devices that use the DB9 interface for serial communication. The connector module is a female right angle connector with solder cups.

    These DB-9 connectors are useful for a wide variety of electronics projects. DB-9 connectors are handy for connection points to projects and are commonly used for serial port connections on electronic and computer equipment.

    These are solder-cup style connectors. We also offer matching hoods. The hoods come with all the necessary hardware.

    Note: The color of the plastic insulation material on these connectors may vary from the picture. Possible colors are Black, Blue, and White. If you need a specific color, please call.

    Technically, the correct term for these connectors is DE9, although DB9 is more commonly used.

    Applications:

    • Serial data transmission
    • Data networks
    • Instrument control
    • Device management

    Package Includes:

    • 1 x DB9 Female Right Angle Connector PCB Mount

    Specifications:

    Connector Type DB9
    Connector Female
    Voltage Rating (V) 250V AC
    Current Rating (A) 5
    Insulation Resistance (MΩ) 1000
    Contact Resistance 20mΩ
    Operating Temperature Range (°C) -55 to 125
    Material Metal and plastic
    Length (mm) 30
    Width (mm) 16
    Height (mm) 18
    Weight (gm) 6 (each)
