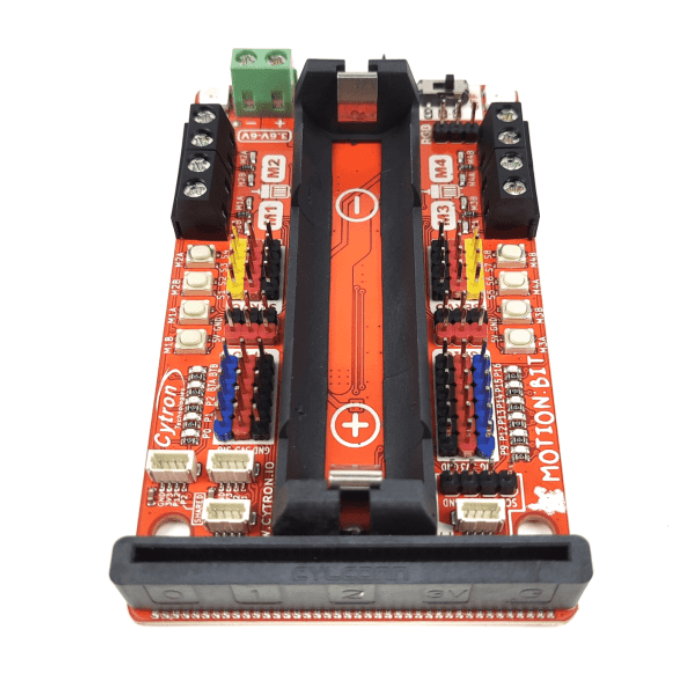

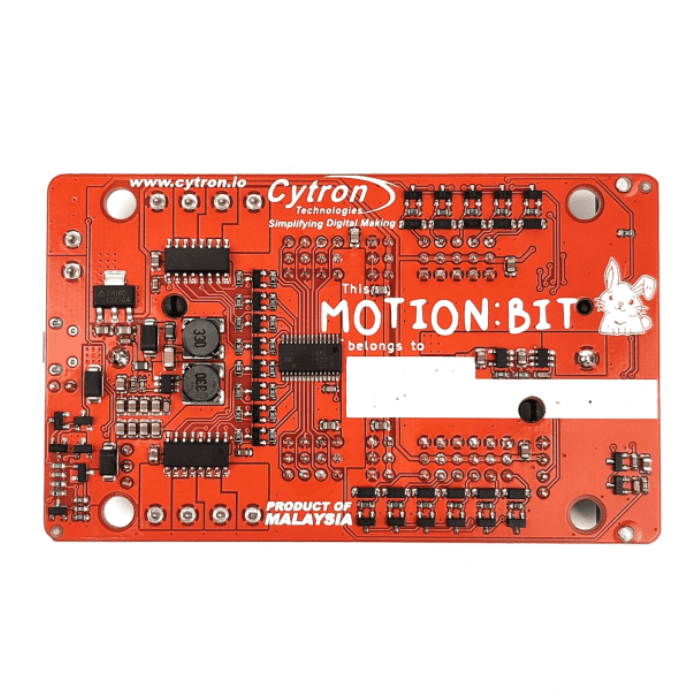

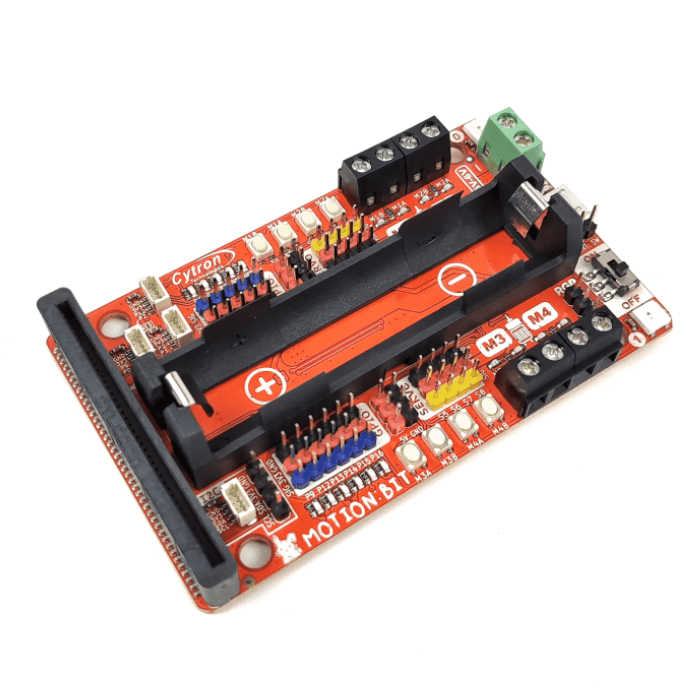

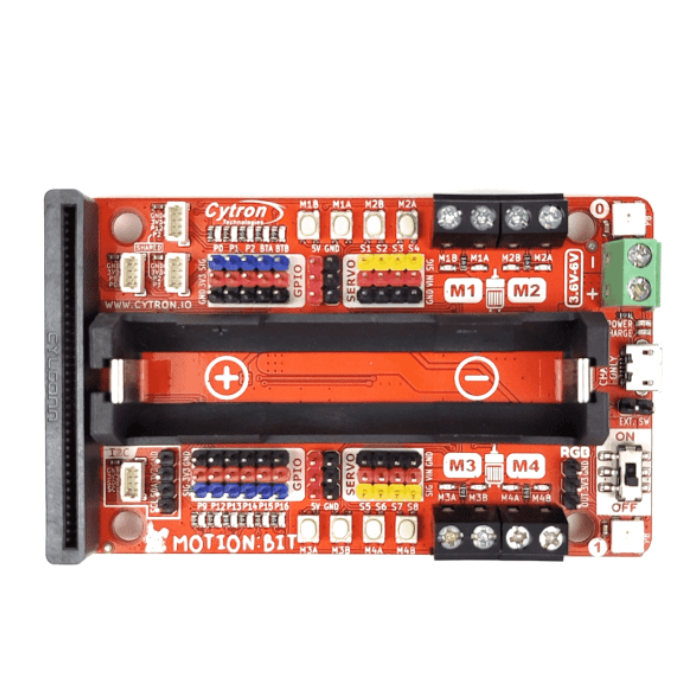

Cytron MOTION:BIT Robotics Expansion Board for micro:bit
Cytron MOTION:BIT Robotics Expansion Board for micro:bit
Low stock: 1 left
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Compact Cytron MOTION:BIT expansion board designed for micro:bit robotics
- Built-in 4-channel DC motor driver for efficient multi-motor control
- Onboard 18650 Li-Ion battery (USB rechargeable) for portable operation
- Supports additional power via external AA battery pack
- Includes 11 status LEDs and Neopixel RGB LEDs for real-time feedback and effects
- GPIO ports for easy sensor and peripheral integration
- Ideal for Cytron robotics board micro:bit based STEM and prototyping projects
Cytron MOTION:BIT Robotics Expansion Board for micro:bit
The Cytron MOTION:BIT is a powerful and compact robotics expansion board for micro:bit, engineered to accelerate development in educational and hobbyist robotics projects.
Featuring an integrated 4-channel DC motor driver, the board simplifies the control of multiple motors, making it perfect for advanced robotics applications. It comes equipped with a built-in 18650 Li-Ion battery, rechargeable via USB, ensuring reliable and portable operation.
Additional support for external AA battery power enhances flexibility for field projects. With 11 status LEDs and Neopixel RGB LEDs onboard, users gain instant visual feedback and the ability to implement colorful lighting effects.
The included GPIO ports make it easy to interface with a variety of sensors and devices. Whether you're building a STEM project or a prototype, the Cytron MOTION:BIT expansion board is the go-to choice for enhancing your micro:bit robotics experience.
Features:
- Multiple Power Options: Rechargeable 18650 lithium-ion battery or external power (e.g., AA batteries)
- GPIO Ports: Breakout to GVS format with additional VCC and GND pins.
- Motor Control: 4-channel DC motor driver; supports up to eight servo motors.
- LED indicators: 11 status LEDs and two inbuilt Neopixel RGB LEDs.
- Color-coded ports: prevents incorrect polarity connections.
-
External Switch: A shock-resistant ON/OFF switch for dependability and lifespan.
Package Includes:
- 1 x Cytron MOTION:BIT Robotics Expansion Board for micro:bit
Specifications:
| Feature | Details |
|---|---|
| Input Power | 3.6V – 6V (via onboard 18650 battery or external source) |
| GPIO Ports | 3 GPIO/Analog In/UART ports with 11 status LEDs |
| Motor Driver | 4-channel DC motor driver, supports up to 8 servo motors |
| Built-in LEDs | 2 onboard Neopixel RGB LEDs |
