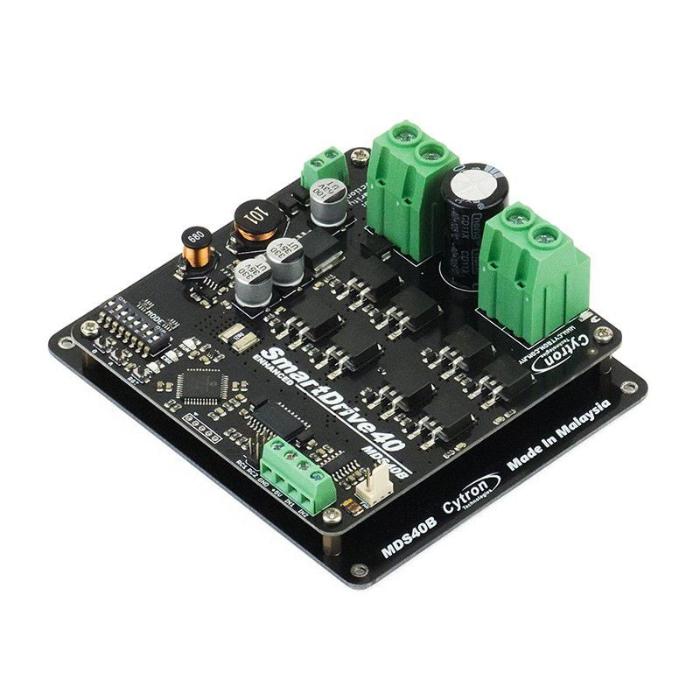

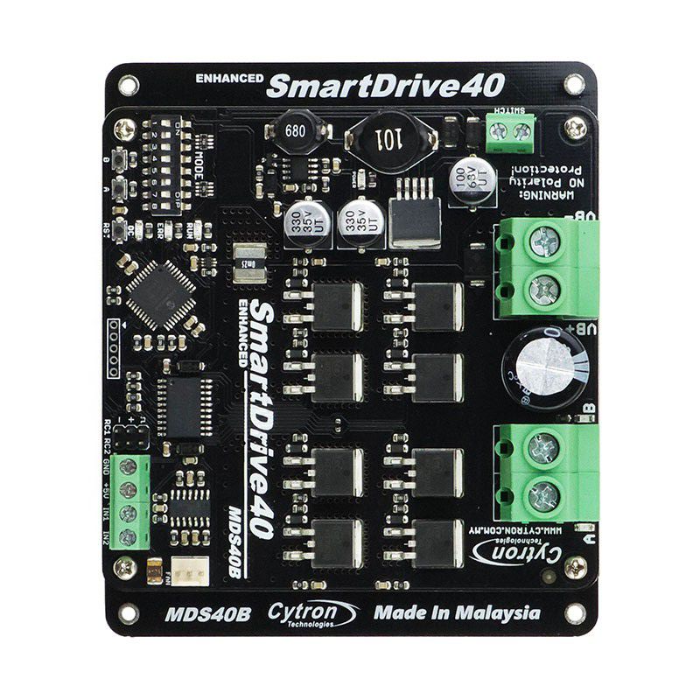

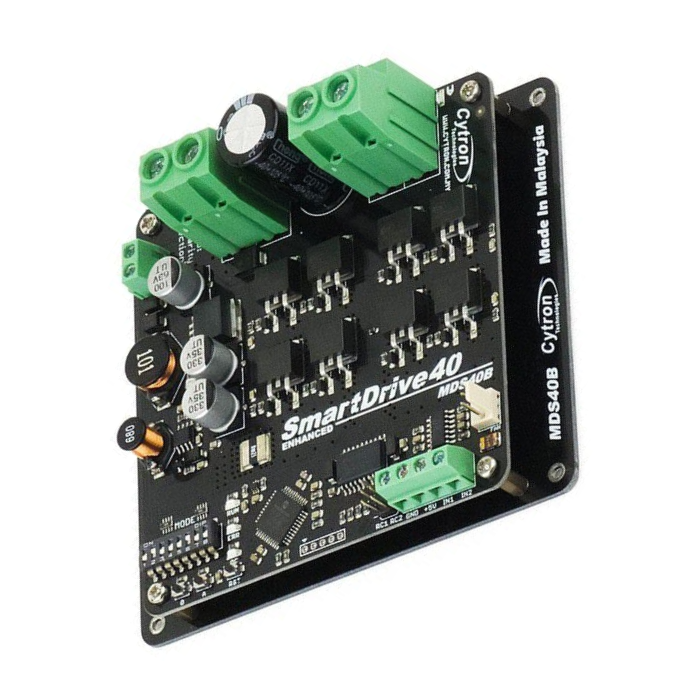

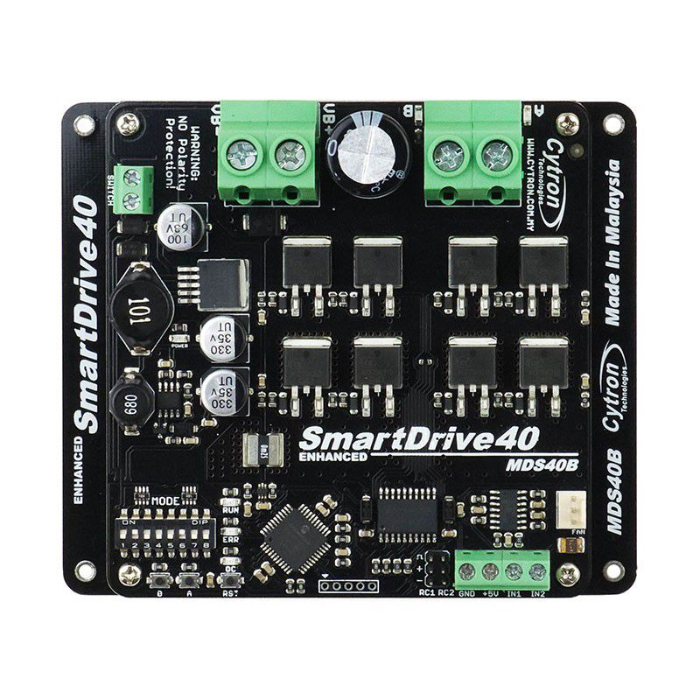

Cytron 40Amp 10V-45V Smart Drive DC Motor Driver Up to 80A
The Cytron 40A motor driver, officially known as the Cytron Smart Drive 40Amp, is an enhanced version of the popular MDS40A. Designed to drive medium to high power brushed DC motors, it handles an impressive 40A continuously and up to 80A at peak, making it a high current motor driver suitable for demanding applications.
Supporting a wide voltage range of 10V–45V, it operates quietly thanks to 16kHz PWM switching, eliminating the typical whining sound. Packed with smart features including thermal protection, current limiting, and versatile input modes like RC (Radio Control), PWM, analog, and UART, this 10V–45V DC motor driver is ideal for robotics and high-torque motion systems.
Additionally, it supports dual-unit operation, simplifying differential drive robot configurations. Whether you're building a combat robot or a powerful mobile platform, the Enhanced SmartDrive40 offers robust and intelligent motor control.
Note: Please consider proper wire/cable for the battery and motor, thin jumper wire/cable is not suitable for high current application. It will affect the performance of driver and motor control. We recommend using Multicore Wire AWG14 Red and Multicore Wire AWG14 Black.
Features:
- Bidirectional control of a single brushed DC motor.
- Support motor voltages ranging from 10 to 45 volts.
- Maximum current up to 80A peak, progressively reduced to 40A based on temperature.
- The switching frequency is 16 KHz, which allows for quiet operation.
- LiPo battery low voltage warning.
- Thermal protection.
- Current limit based on temperature.
- Input modalities include RC (Radio Control), Analog, PWM, Simplified Serial, and Packetized Serial.
- Manual operation is accomplished via an on-board push button.
Enhanced Features:
- Increased Vin range to 45VDC, allowing you to use larger batteries and control more powerful motors.
- A responsive current limiting sensor and algorithm help to protect both the driver and your motor.
- Screw connectors with high amperage capacity for both battery and motor connections.
- An additional terminal for activating or deactivating the driver further turns off the power to the motor driver, removing the requirement for the high-power switch.
- Use a switching power supply to regulate 5V, increase output current (5V), and enhance efficiency.
- Option to install a fan for improved heat dissipation and increased maximum continuous current.
- The header is ready for RC receiver connection.
- Protection from overvoltage.
Specificaions:
| Specification |
Details |
| Item Type |
Motor Driver |
| Model Series |
MDS Series |
| Voltage Rating (V) |
10 to 45 |
| Current Rating (A) |
40 to 80 |
| Driver Model |
Cytron MDS40B |
| Peak Current (A) |
80 |
| Continuous Current (A) |
40 |
| Number of Channels |
1 |
| Operating Modes |
PWM (Lock-Antiphase and Sign-Magnitude), UART, Analog, RC Servo Signal |
| Overcurrent Protection |
Yes |
| Thermal Protection |
Yes |
| LED Indicator |
Yes |
| Test/Manual Button |
Yes |
| Cooling Fan |
No |
| Arduino Shield Compatible |
Can be used with wire connection, No direct shield |
| Polarity Protection |
No |
